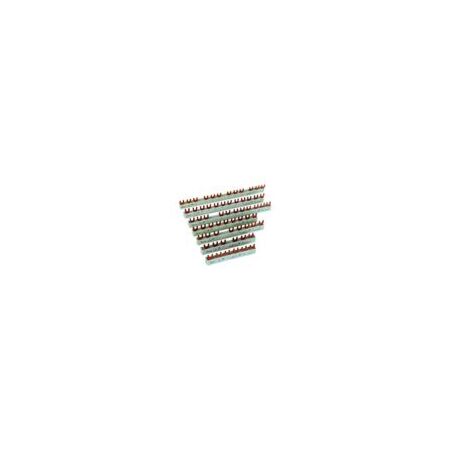

Insulated Busbar 80A | Single-Pole | 2 Modular Spacings | 415V by Eaton
Insulated busbar rated for 80A and designed for single-pole applications—ideal for electrical distribution systems. Built for safe connections with support for 2 devices, it ensures compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Busbar 80A | Single-Pole | 2 Modular Spacings | 415V by Eaton
Brand: Eaton
SKU: Y7-291464
Alternatively Known As: Eaton Busbar EVG, xPole Busbar 1 Phase, 80A Busbar for Circuit Breakers, Insulated Busbar for Miniature Circuit Breakers
Technical Specifications
- Product Name: Eaton Moeller series busbar
- Rated uninterrupted current (Iu): 80 A
- Number of poles: Single-pole
- Number of modular spacings: 2
- Rated operational voltage (Ue) - max: 415 V
- Rated conditional short-circuit current (Iq): 25 kA
- Rated surge voltage: 4 KV
- Cross section: 16 mm²
- Electric connection type: Fork
- Suitable for number of devices: 2
- Insulated design
- No end caps required, do not shorten
- Dimensions (H x L x W): 4.5mm x 29mm x 33mm
- Weight: 0.013 kg
Key Features
- Insulated busbar for safe electrical connections
- Rated uninterrupted current of 80A
- Single-pole design suitable for 1 phase
- Supports up to 2 modular spacings and 2 devices
- Rated operational voltage up to 415V
- Rated conditional short-circuit current of 25kA
- Fork type electric connection
- No end caps required and should not be shortened
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Miniature circuit breaker connections
- Residual current circuit breaker connections
- Combined residual current/power circuit breaker setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton Moeller series xPole EVG-16/1PHAS/2MODUL busbar is available now for immediate purchase. Ideal for electrical distribution and circuit breaker applications.
