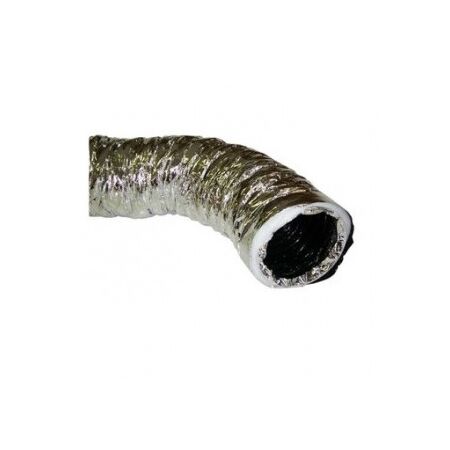

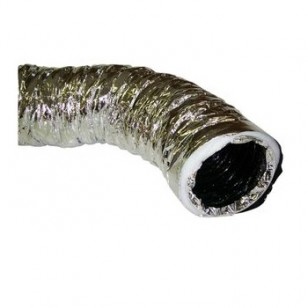

Insulated Duct R0.6 200mm Diameter 4 Zero Fire Rated Repelec
Insulated duct R0.6 with a 200mm diameter and 6m length is perfect for HVAC applications. This flexible ducting features a 4 Zero fire rating for enhanced safety
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Duct R0.6 | 200mm Diameter | 4 Zero Fire Rated | 6m Length | by Repelec
Brand: Repelec
SKU: AIRAWFX200-R0.64Z
Alternatively Known As: Flexible Insulated Duct, HVAC Insulated Duct, 4 Zero Duct, R0.6 Insulated Duct, 200mm Insulated Duct, Fire Rated Duct
Technical Specifications
- Diameter: 200mm
- Length: 6m
- Thermal Insulation: R0.6
- Fire Rating: 4 Zero
- Construction: Multi-layer polyester and aluminium laminate with glass wool insulation
- Operating Temperature Range: -10°C to +80°C
- Maximum Air Velocity: 30 m/s
- Maximum Working Pressure: 2500 Pa
- Dimensions (H x L x W): 200mm x 6000mm x 200mm
- Weight: 4.5 kg
Key Features
- Flexible insulated ducting for HVAC applications
- Thermal insulation rating of R0.6 for energy efficiency
- 4 Zero fire rated for enhanced fire safety
- 200mm diameter suitable for standard duct connections
- 6 metre length for versatile installation
- Lightweight and easy to handle
- Reduces heat loss and condensation
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure compliance with building codes and optimal system performance.
Applications
- Residential and commercial HVAC systems
- Air conditioning ductwork
- Ventilation systems
- Exhaust air systems
- General air distribution in buildings
Standards & Compliance
- Complies with AS/NZS 4254 for ductwork for air-handling systems in buildings
Environmental Benefits
- Improves energy efficiency by reducing heat loss in air distribution
- Minimizes condensation, reducing risk of mold and mildew
- Supports better indoor air quality
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec DUCT INSULATED R0.6, 4 ZERO 200mm x 6m is available for immediate purchase. Ideal for HVAC, air conditioning, and ventilation applications in residential and commercial buildings.
