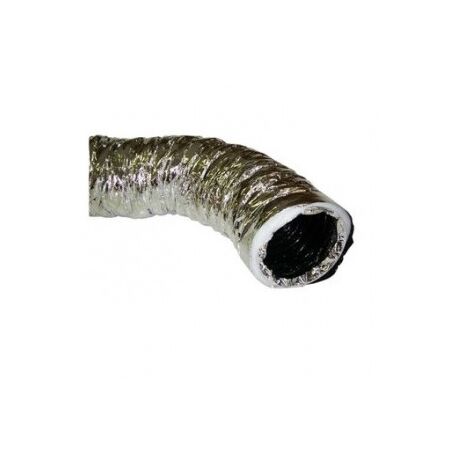

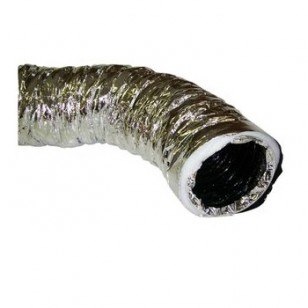

Insulated Duct R1.5 250mm Diameter 6m Length Repelec
Insulated duct R1.5 with a 250mm diameter and 6m length is perfect for HVAC applications, providing energy efficiency and reducing heat loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Duct R1.5 | 250mm Diameter | 6m Length | Flexible HVAC Ducting | by Repelec
Brand: Repelec
SKU: AIRAWFX250-R1.5
Alternatively Known As: Flexible Insulated Duct, HVAC Ducting, R1.5 Duct, 250mm Insulated Duct, Air Conditioning Duct, Ventilation Duct
Technical Specifications
- Diameter: 250mm
- Length: 6 metres
- Thermal Insulation: R1.5
- Construction: Multi-layer polyester and aluminium foil with polyester insulation
- Operating Temperature Range: -10°C to +80°C
- Maximum Air Velocity: 30 m/s
- Maximum Working Pressure: 2500 Pa
- Fire Rated to AS 4254.1
- Dimensions (H x L x W): 250mm x 6000mm x 250mm
- Weight: 4.5 kg
Key Features
- Flexible insulated ducting for HVAC applications
- R1.5 thermal insulation for energy efficiency
- 250mm diameter suitable for standard ducted systems
- 6 metre length for versatile installation
- Reduces heat loss and condensation
- Lightweight and easy to install
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure compliance with building codes and optimal system performance.
Applications
- Residential and commercial HVAC systems
- Air conditioning and ventilation installations
- Ducted heating and cooling systems
- Exhaust and fresh air supply systems
Standards & Compliance
- Complies with AS/NZS 4254.1 for ductwork for air-handling systems in buildings
Environmental Benefits
- Improves energy efficiency by reducing heat loss
- Minimizes condensation and associated mould risk
- Supports lower energy consumption in HVAC systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec Insulated Duct R1.5 250mm x 6m is available for immediate purchase. Ideal for residential and commercial HVAC, air conditioning, and ventilation applications.
