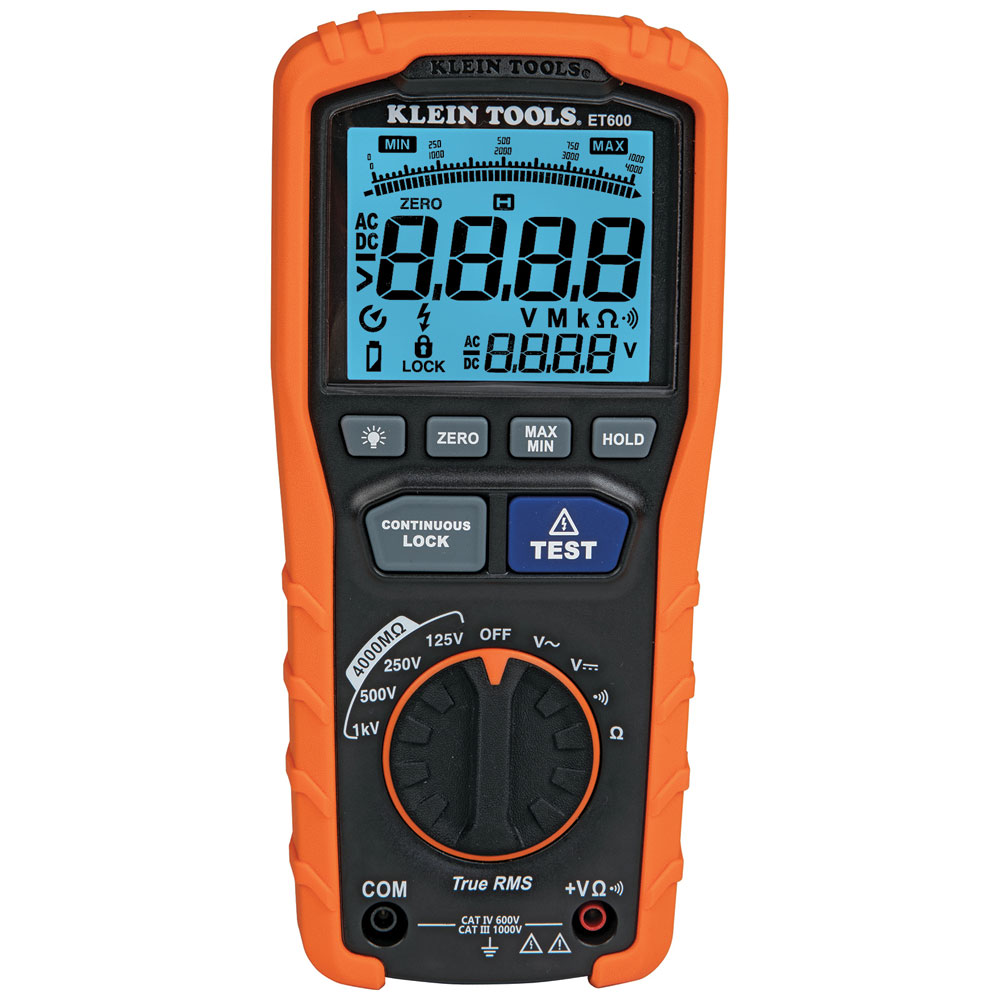

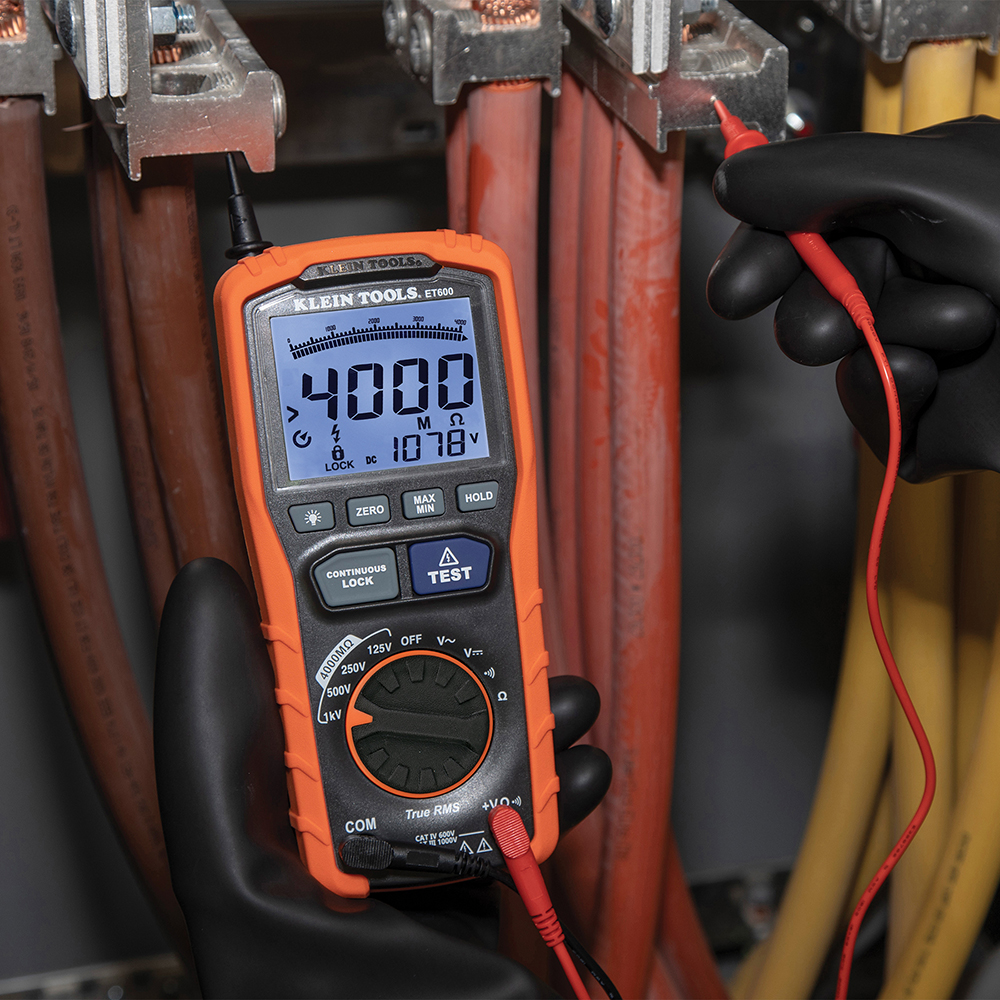

Insulation Resistance Tester | 4000MΩ Range | 1000V AC/DC Measurement | Backlit LCD Display | @Each by Wattmaster
The Insulation Resistance Tester is designed for professional electricians, offering insulation resistance testing up to 4000MΩ at various DC voltages. With the ability to measure AC/DC voltages up to 1000V using True RMS technology, this tester features a backlit LCD display for easy reading in low light. Ideal for installation and maintenance of electrical systems, it ensures safety and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulation Resistance Tester | 4000MΩ Range | 1000V AC/DC Measurement | Backlit LCD Display | @Each by Wattmaster
Brand: Wattmaster
SKU: A-ET600
Alternatively Known As: Megohmmeter, Insulation Tester, Insulation Resistance Meter, Electrical Insulation Tester, Multi-function Insulation Tester
Technical Specifications
- Test Voltages: 125V, 250V, 500V, 1000V DC for insulation resistance
- Insulation Resistance Range: up to 4000MΩ
- Voltage Measurement: up to 1000V AC/DC with True RMS
- Display: 4000 count LCD with backlight and bar graph
- Safety Ratings: CAT IV 600V, CAT III 1000V
- Standards Compliance: EN61557-1, EN61557-2, EN61557-4
- Power Supply: 6 x AA batteries
- Material: ABS, Polycarbonate, Electrical Components
- Dimensions (H x L x W): 59mm x 202mm x 91mm
- Weight: 0.6 kg
Key Features

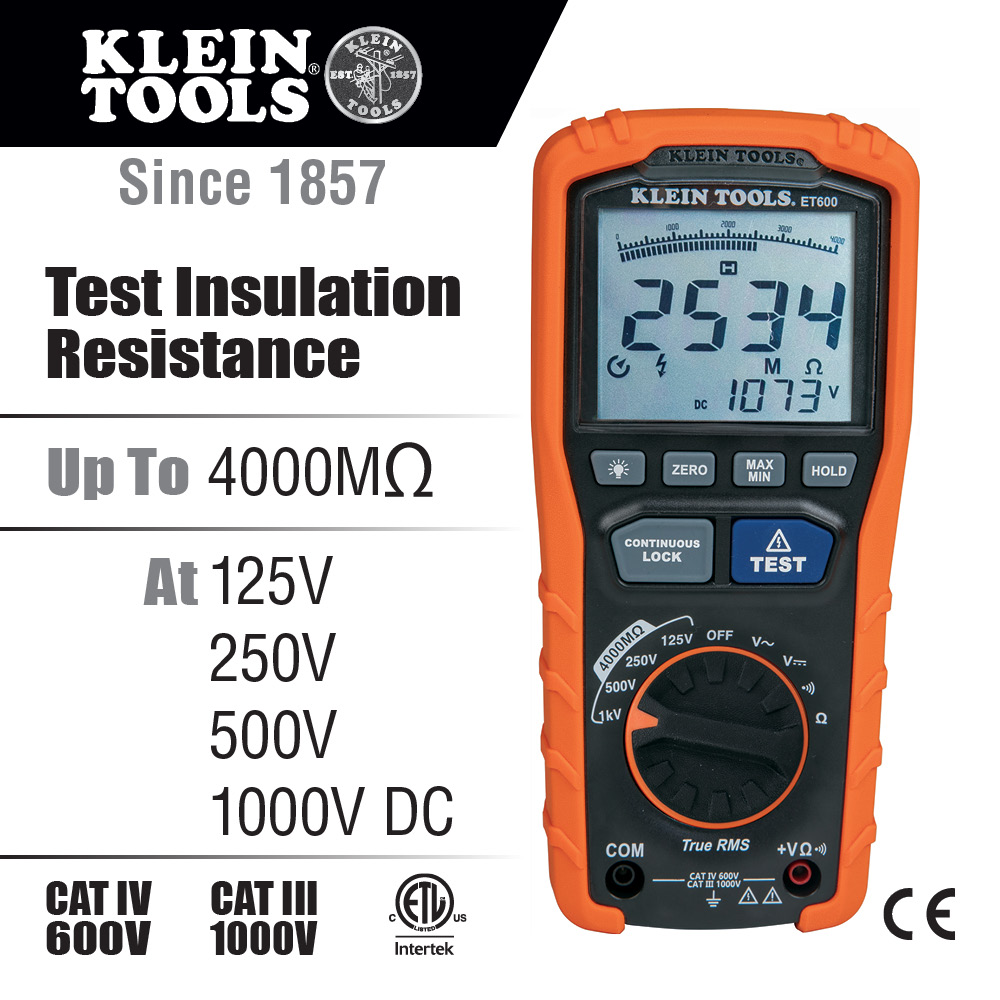

- Tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Measures AC/DC voltages up to 1000V with automatic ranging True RMS technology
- Lock function for insulation resistance testing

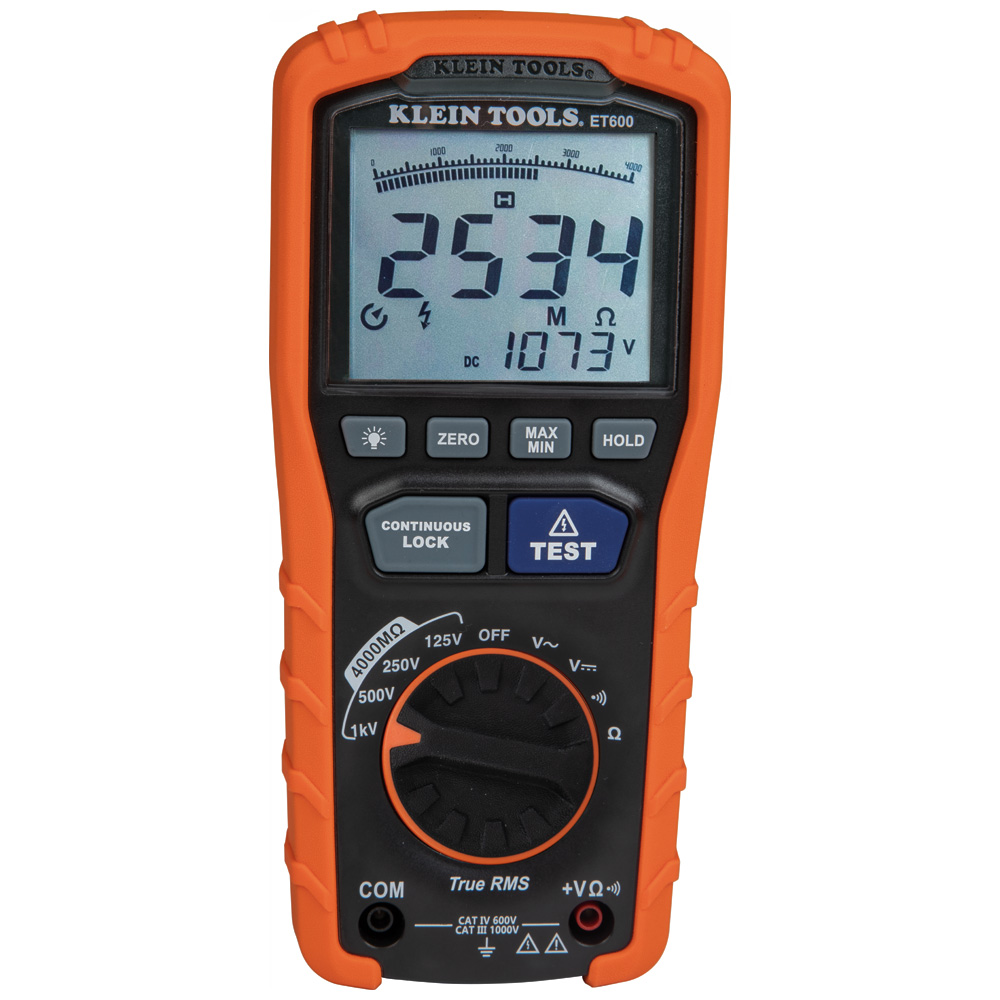

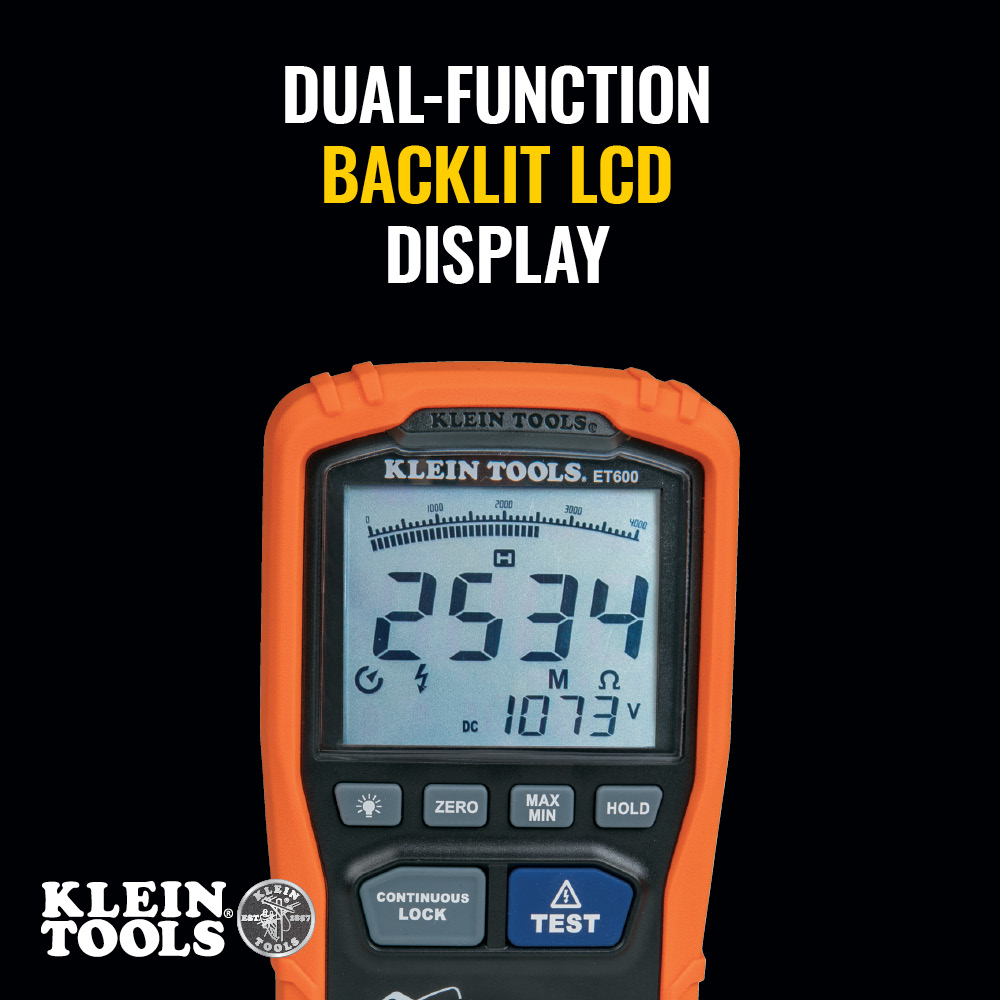

- Backlit dual-function display with bar graph and multiple icons for easy monitoring
- Warning alarm and high voltage icon for voltage detection

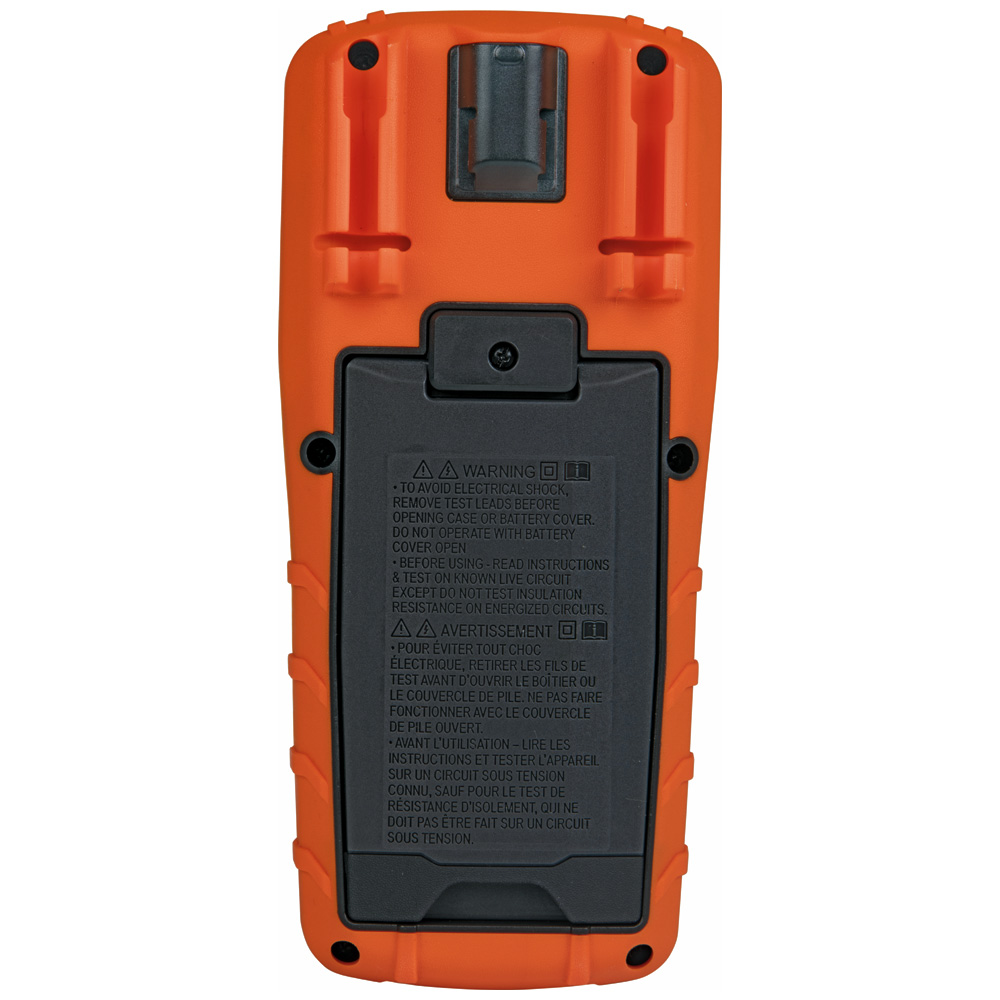

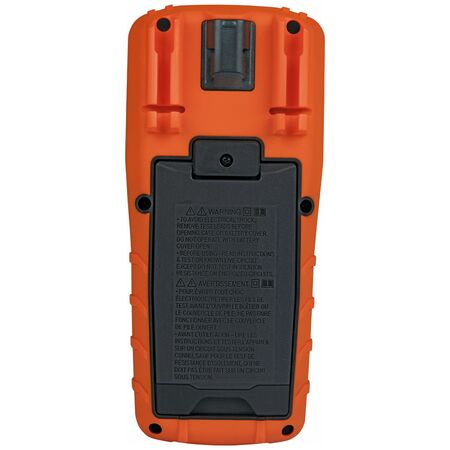

- Low battery indicator with easily replaceable battery and fuse

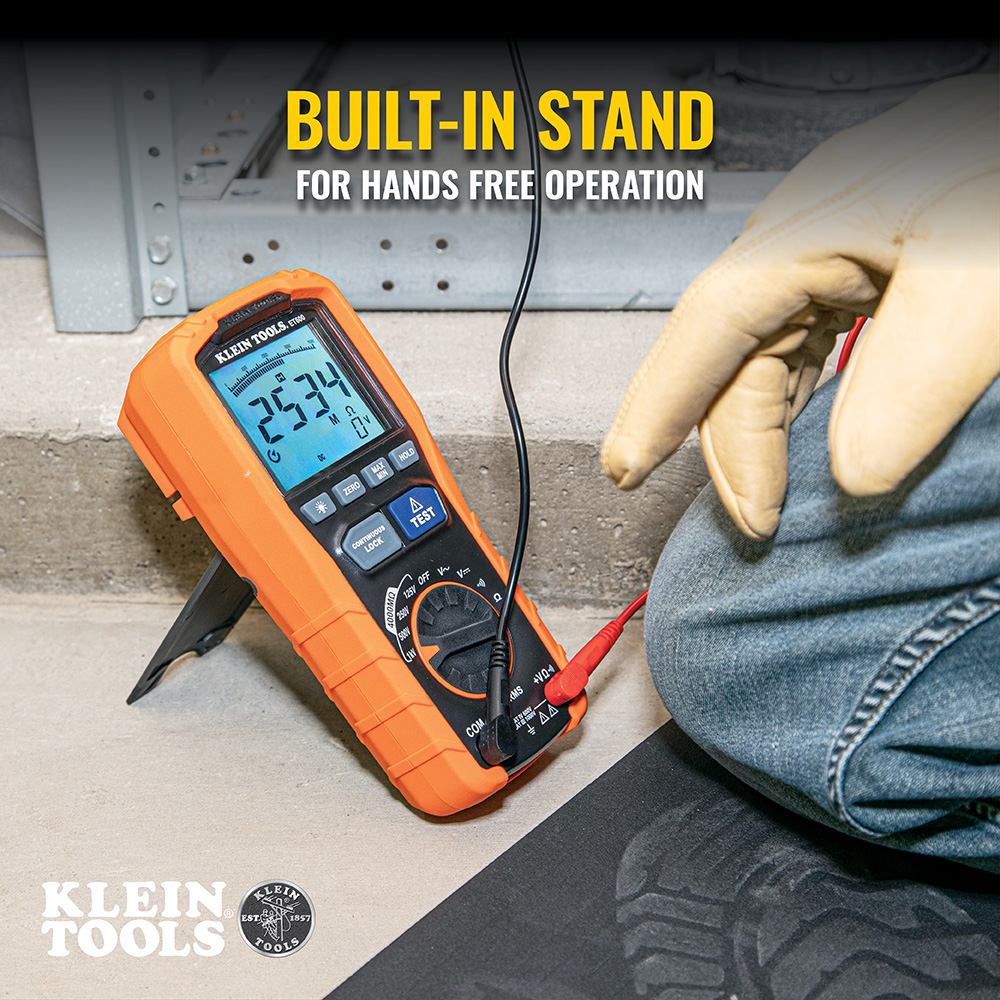

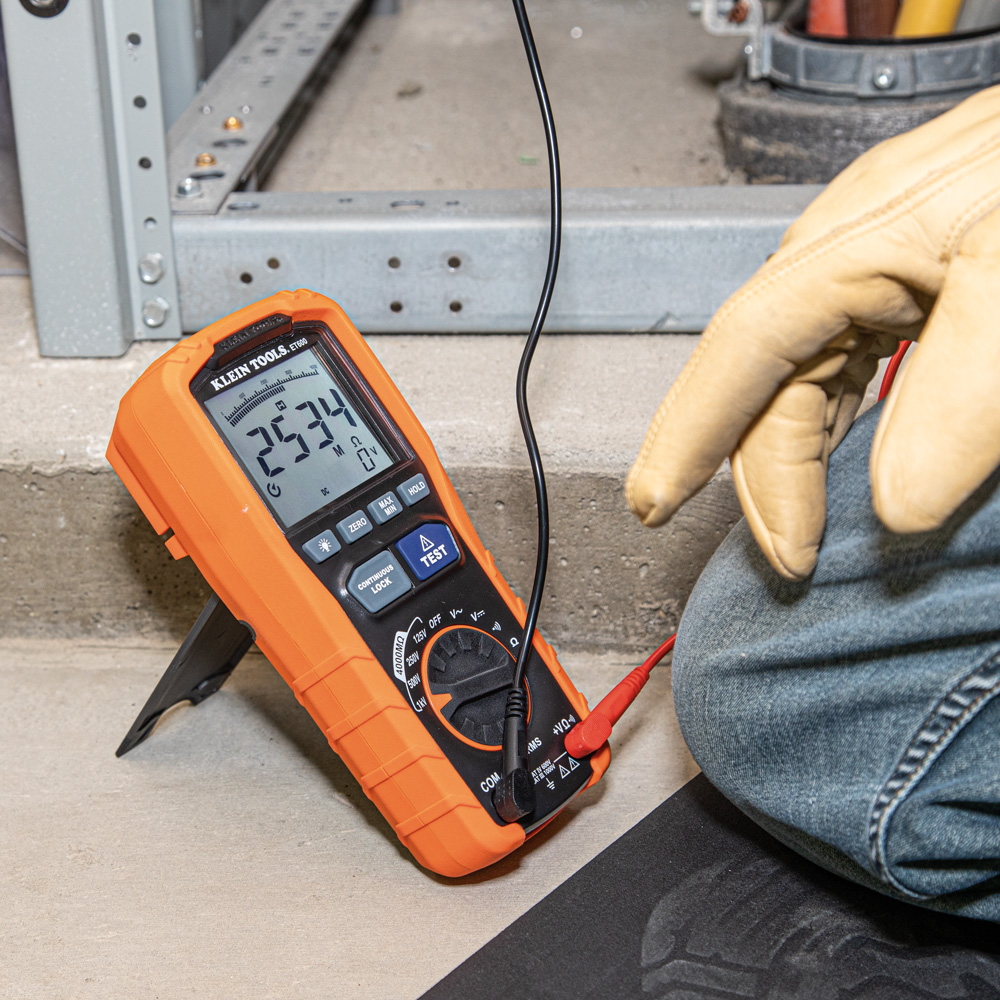

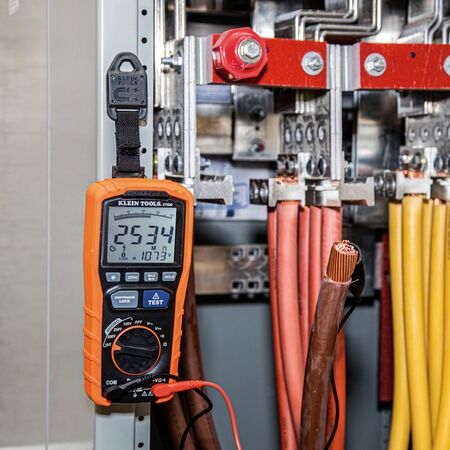

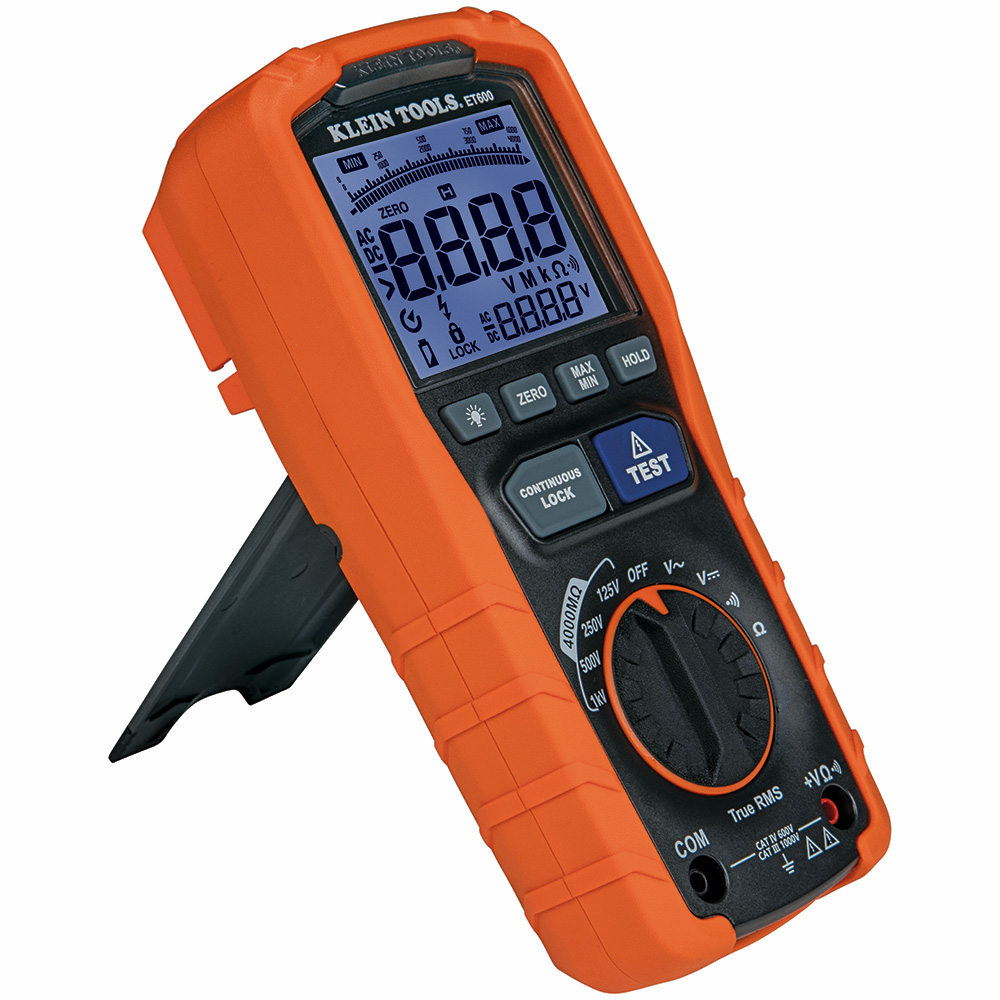

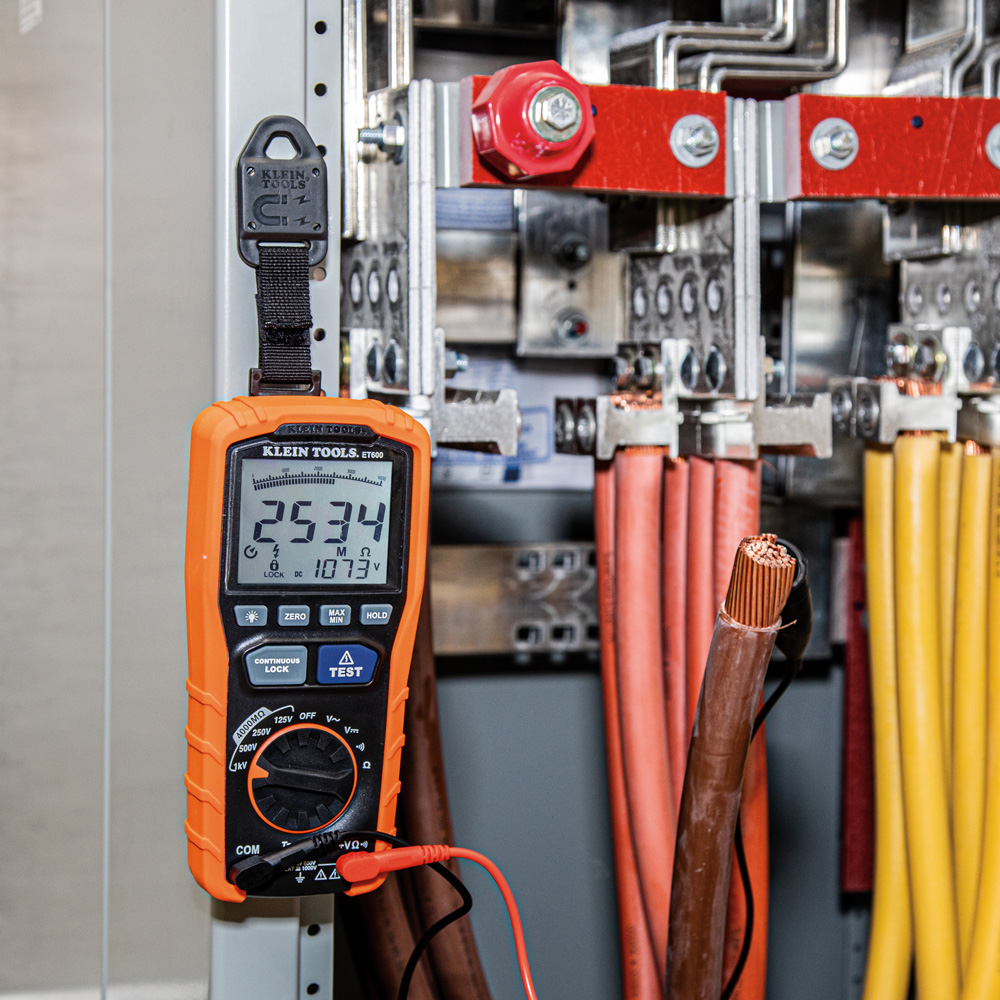

- Built-in stand and optional magnetic hanger for hands-free operation

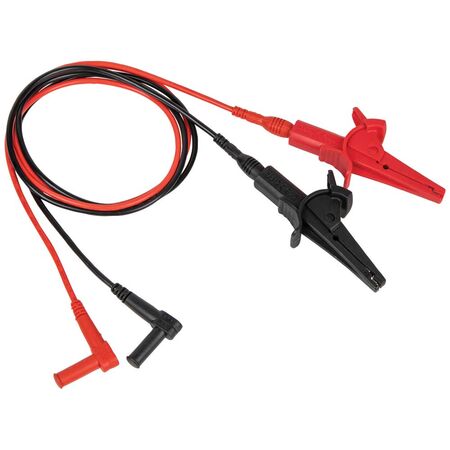

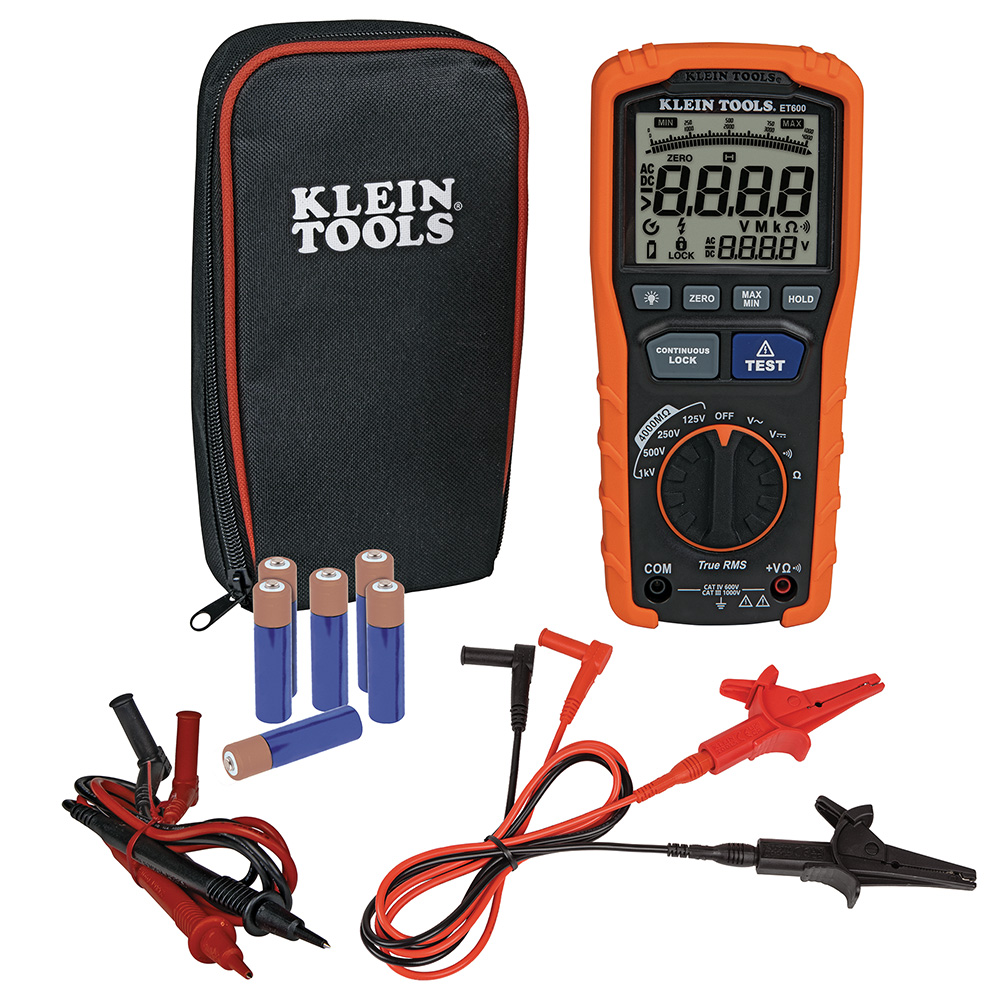

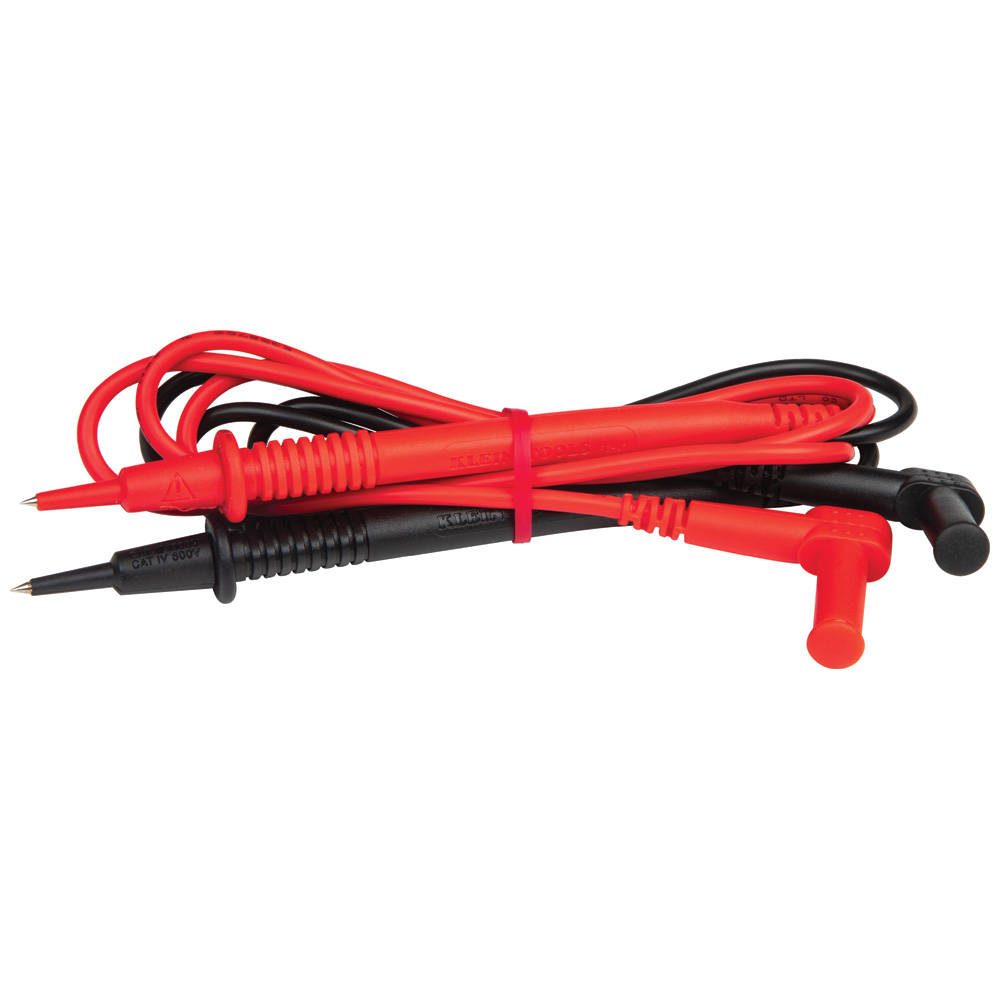

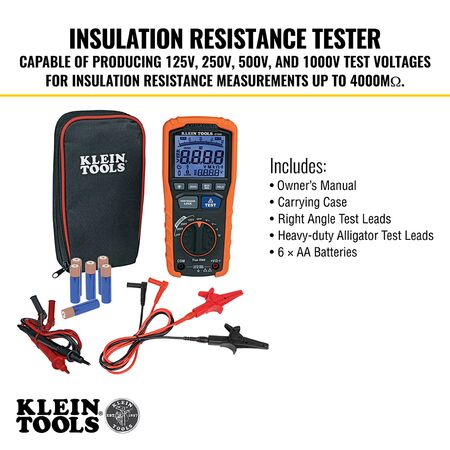

- Includes right angle test leads and heavy-duty alligator clip test leads
- CAT IV 600V and CAT III 1000V safety rating
Professional Installation Requirements
- Use by qualified electricians or trained professionals is recommended to ensure accurate measurements and safety compliance.
Applications

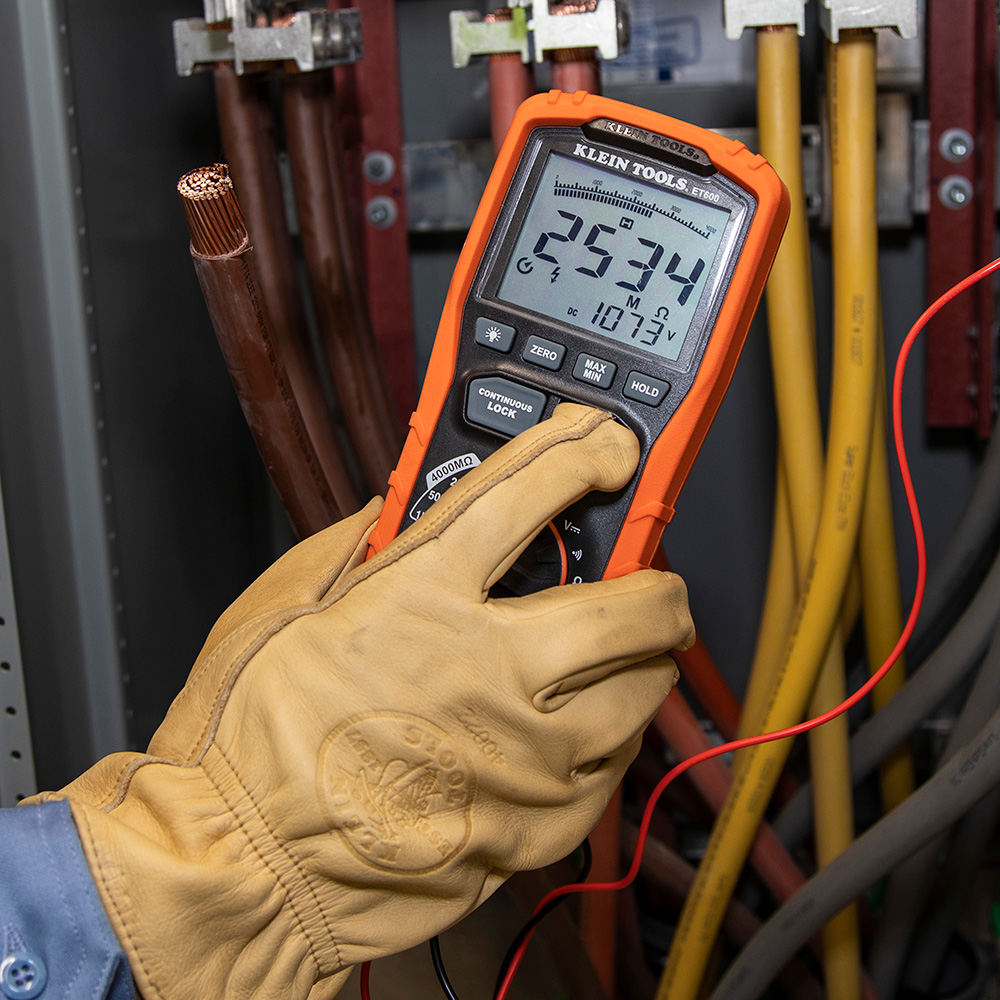

- Installation, troubleshooting, and preventive maintenance of electrical wiring and equipment
- Measuring insulation resistance, AC/DC voltage, resistance, and continuity in electrical systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Helps ensure electrical systems are safe and efficient, reducing energy waste and preventing electrical faults
- Durable design reduces need for frequent replacements, minimizing electronic waste
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster ET600 Insulation Resistance Tester is available for immediate purchase, ideal for professional electricians and maintenance technicians.
