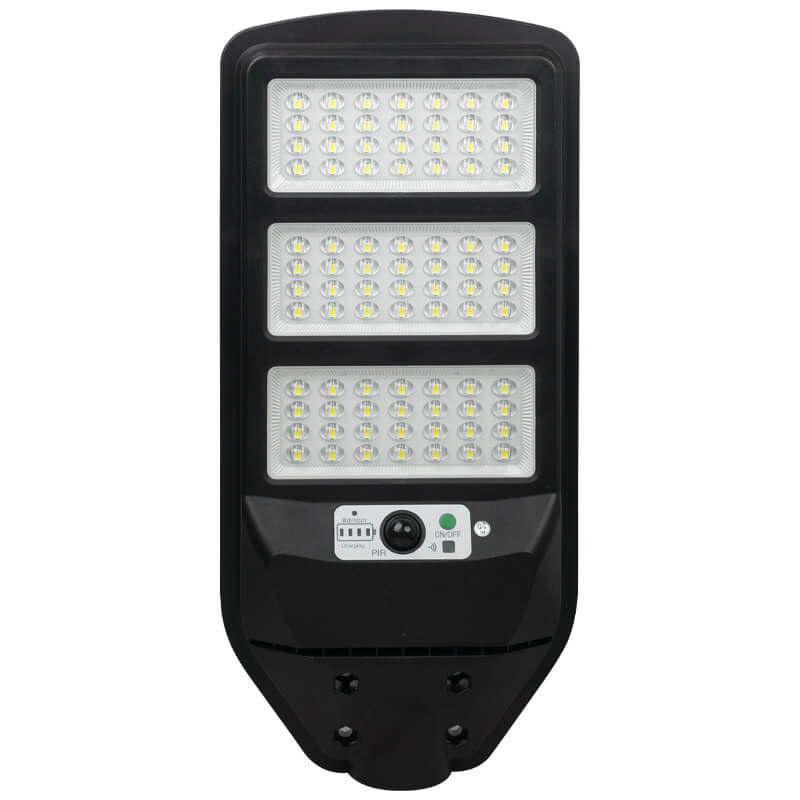

Integrated Solar Street Light 1800lm 6500K MajorTech

BRAND: Major Tech
SKU: SSL120C
$95.10 List price: $126.70
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech solar street light features 1800 lumens, an integrated panel and 6500K output. Ideal for street, path and area lighting.

Alternatively Known As: 1800lm Solar Street Light, 12W Solar LED Street Light, Integrated Solar Street Light

Technical Specifications
  • Model: SSL120C
  • Light Output: 1800 lm
  • Actual Power: 12 W
  • Equivalent Power: 120 W
  • Luminous Efficacy: 150 lm/W
  • Colour Temperature: 6500K cool white
  • LED Type: SMD5054
  • Solar Panel: 12 W / 5 V integrated monocrystalline silicon and glass panel
  • Battery: 3.2 V 12,000 mAh LiFePO4
  • Discharge Time: 12–14 hours typical
  • Charging Time: 4–6 hours in normal daylight
  • PIR Detection Distance: Up to 8 m
  • PIR Detection Angle: 120°
  • Beam Angle: 120°
  • Lighting Modes: Day/night automatic, continuous on/off, preset times and PIR motion activation
  • Ingress Protection: IP54
  • Operating Temperature: -10°C discharge; 5°C to 40°C charge
  • Installation Height: 3–6 m pole mounted
  • Main Unit Dimensions: 511 x 231 x 47 mm
  • Solar Panel Dimensions: 397 x 211 x 4 mm
  • Included Accessories: Remote control, 2 x AAA batteries, pole-mount bracket, nuts, bolts and instruction manual
  • Dimensions (H x L x W): 47mm x 511mm x 231mm
  • Weight: 1.5 kg
Key Features
  • Integrated solar panel, LED lamp and rechargeable battery
  • Provides up to 14 hours of illumination after a full charge in suitable sunlight
  • PIR motion sensing with up to 8 m detection distance
  • Remote-controlled lighting modes for automatic, timed and motion-activated operation
  • UV-resistant ABS housing for outdoor applications
  • Includes pole-mount bracket for installation on existing poles
  • Battery charging and lighting-mode indicators
  • Suitable for pathways, parking areas, residential streets and general area lighting
Professional Installation Requirements
  • Mounting should be completed by a suitably competent person using the supplied bracket and appropriate pole hardware. Confirm pole condition, mounting security and aiming before commissioning; no mains electrical connection is required.
Applications
  • Residential streets and access roads
  • Pedestrian paths and walkways
  • Parking areas
  • Driveways and entrances
  • Outdoor area and perimeter lighting
Standards & Compliance
  • AS/NZS 60598.2.3 is the applicable particular standard for luminaires used for road and street lighting; manufacturer compliance to this standard was not stated in the available product documentation. ([slsc.org.au](https://www.slsc.org.au/resources/au-and-nz-standards?utm_source=openai))
Environmental Benefits
  • Solar-powered operation reduces reliance on mains electricity and associated cabling
  • Integrated LiFePO4 battery supports rechargeable, long-life operation
  • PIR and timed lighting modes can reduce unnecessary energy consumption
  • LED technology provides efficient illumination at 150 lm/W
  • ABS, glass and electronic components should be separated for appropriate recycling at end of service life
Warranty Information

MajorTech lists solar lighting products with a 2-year warranty, subject to the applicable warranty terms and exclusions. ([majortech.com.au](https://www.majortech.com.au/shipping-returns?utm_source=openai))

Available Now

Available through MajorTech and authorised Australian electrical distributors; confirm current stock with the distributor.
