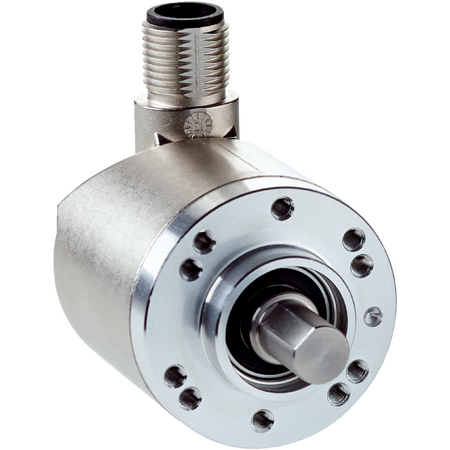

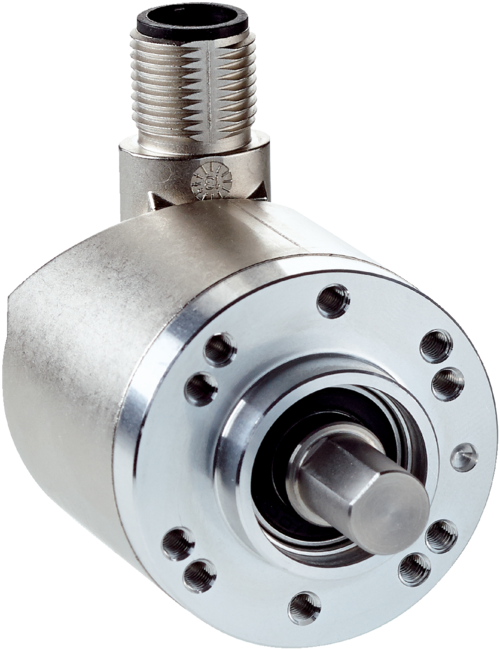

IO-Link Rotary Encoder AHM36B-S3QC012x12 4096 Steps Rev IP65 Rated SICK

BRAND: SICK
SKU: 1092014
$1,398.40 List price: $1,757.60
+ −
30 Days Return Electricians Unlock Trade Access
The IO-Link Rotary Encoder AHM36B-S3QC012x12 offers high precision with 4,096 steps per revolution and a robust mechanical design

Alternatively Known As: Rotary Encoder IO-Link, SICK AHM36B Encoder, IO-Link Position Sensor, Industrial Rotary Encoder

Technical Specifications
  • Mean Time To Dangerous Failure (MTTFD): 240 years (EN ISO 13849-1)
  • Max resolution: 4,096 steps per revolution x 4,096 revolutions (12 bit x 12 bit)
  • Error limits: 0.35° at 20 °C
  • Repeatability standard deviation: 0.25° at 20 °C
  • Communication interface: IO-Link V1.1
  • Initialization time: 2 seconds
  • Cycle time: ≤ 3.2 ms
  • Process data: Position, speed
  • Parameterising data: Number of steps per revolution, number of revolutions, preset, counting direction, sampling rate for speed calculation, unit for output of speed value
  • Status information via status LED
  • Connection type: Male connector, M12, 4-pin, universal
  • Supply voltage: 18 to 30 V
  • Power consumption: ≤ 1.5 W
  • Reverse polarity protection: Yes
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 6 mm with flat
  • Shaft length: 12 mm
  • Shaft material: Stainless steel
  • Flange material: Aluminum
  • Housing material: Zinc
  • Start up torque: < 0.5 Ncm at 20 °C
  • Operating torque: < 0.5 Ncm at 20 °C
  • Permissible shaft loading: 40 N radial, 20 N axial
  • Operating speed: ≤ 6,000 min⁻¹
  • Moment of inertia of rotor: 2.5 gcm²
  • Bearing lifetime: 3.6 x 10^8 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
  • Enclosure rating: IP65 (IEC 60529)
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -20 °C to +70 °C
  • Storage temperature range: -40 °C to +100 °C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 36mm x 60mm x 36mm
  • Weight: 0.12 kg
Key Features
  • High resolution with 4,096 steps per revolution and 4,096 revolutions
  • IO-Link V1.1 communication interface for efficient data exchange
  • Robust mechanical design with solid shaft and face mount flange
  • IP65 rated enclosure for protection against dust and water
  • Low power consumption of ≤ 1.5 W
  • Reverse polarity protection included
  • High resistance to shocks (100 g) and vibration (20 g)
  • Long bearing lifetime of 3.6 x 10^8 revolutions
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
  • Industrial automation for precise position and speed measurement
  • Robotics and motion control systems
  • Manufacturing process monitoring
  • Machine tool feedback systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage in industrial applications
  • Durable design minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AHM36B-S3QC012x12 IO-Link Rotary Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
