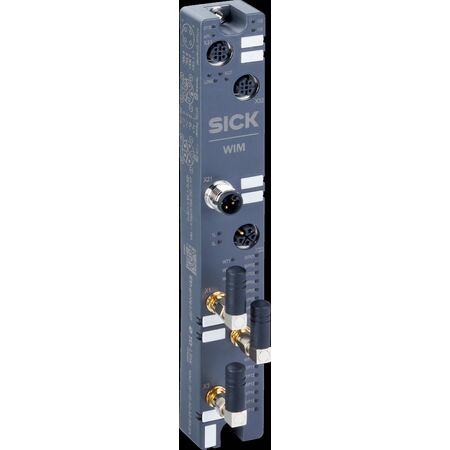

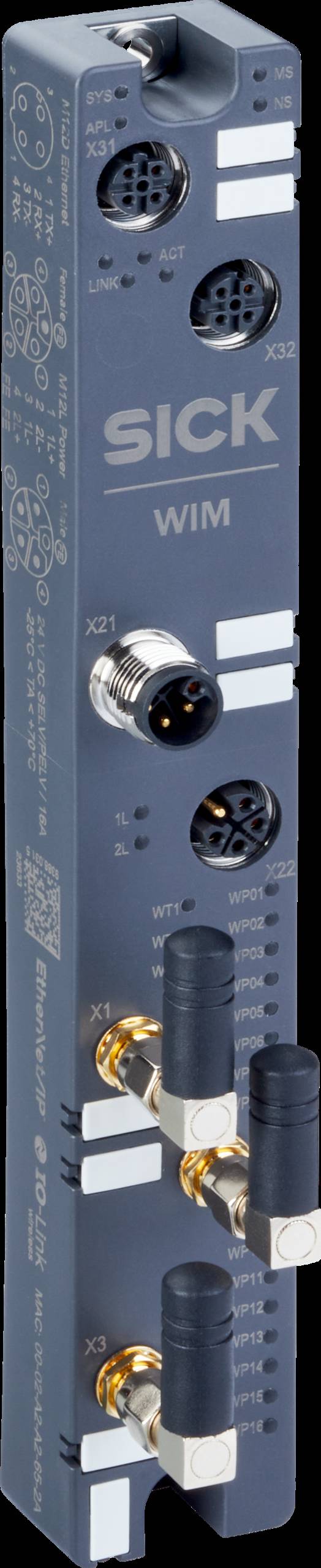

IO-Link Wireless Gateway | IP67 Rated | Supports 64 Devices | Wireless Communication Up to 20m | by SICK
The IO-Link Wireless Gateway is designed for seamless industrial automation, enabling wireless integration of up to 64 IO-Link devices. With an IP67 rating for dust and water protection, it ensures reliable performance in harsh environments. Ideal for IIoT applications, this gateway supports various communication protocols including OPC-UA and EtherNet/IP, making it perfect for real-time data exchange and PLC connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IO-Link Wireless Gateway | IP67 Rated | Supports 64 Devices | Wireless Communication Up to 20m | by SICK
Brand: SICK
SKU: 6087626
Alternatively Known As: Wireless IO-Link Gateway, Industrial Wireless Gateway, IO-Link Master Wireless, IIoT Wireless Gateway
Technical Specifications
- Communication interfaces: Ethernet, EtherNet/IP™, REST API, OPC UA
- Enclosure rating: IP67 for dust and water protection
- Radio approval: 3 SMA antennas, 2 track, Unlicensed 2.4GHz ISM band, Tx power 10 dBm max, Rx Sensitivity PER 30% @ -92 dBm or better
- IO-Link or DI/DO Ports: Power In/Out: 2x M12, 5-pin, L-coded; 2x M12 Ports, 5-pin, D-coded
- Setup and monitoring via WIE, internal Web Server interface or PLC
- Supports up to 64 IO-Link devices per master
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 1.5 kg
Key Features
- Wireless communication up to 20 m
- Supports up to 64 IO-Link devices per master
- Interference-free frequency hopping method
- Data transmission with short delay time
- IIoT integration via OPC-UA, MQTT, REST API
- Fieldbus integration including PROFINET, EtherNet/IP, EtherCAT
- Compact IP67 rated design for harsh environments
- Interlinking to reduce power cabling requirements
Professional Installation Requirements
- Installation should be performed by qualified industrial automation professionals or electricians familiar with IO-Link and wireless communication systems to ensure compliance and optimal performance.
Applications
- Industrial automation for wireless integration of IO-Link devices
- IIoT platform connectivity and PLC communication
- Mobile and long-distance wireless communication applications
- Challenging industrial environments requiring reliable real-time data exchange
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Reduces cabling and associated material waste through wireless communication
- Supports energy-efficient industrial automation and monitoring
- Enables remote monitoring reducing the need for physical inspections
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK IO-Link Wireless Gateway is available for immediate purchase, ideal for industrial automation and IIoT wireless communication applications.
