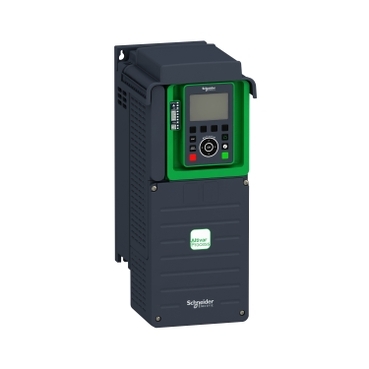

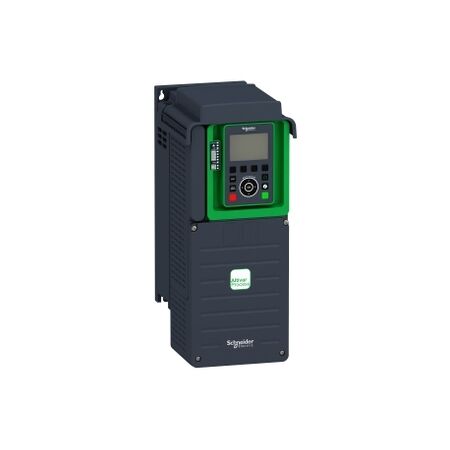

IP21 11kW Variable Speed Drive 3-Phase 400V 480V Integrated EMC Filter Clipsal
The IP21 11kW Variable Speed Drive is designed for efficient motor control in industrial applications, supporting 3-phase 400V 480V input.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IP21 11kW Variable Speed Drive | 3-Phase 400V/480V | Integrated EMC Filter | User-Friendly Interface | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV930D11N4
Alternatively Known As: Variable Frequency Drive, VSD, VFD, Inverter Drive, Motor Speed Controller, ATV930D11N4
Technical Specifications
- Power Rating: 11kW (15HP)
- Input Voltage: 3-phase 380-480V AC
- Output Voltage: 3-phase 0-480V AC
- Frequency Range: 0.1 to 599Hz
- Protection Rating: IP21
- Integrated EMC filter
- Control Type: Sensorless vector, V/F, and flux vector control
- Display: Integrated LCD keypad
- Communication: Modbus, Ethernet (optional cards)
- Operating Temperature: -10°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 420mm x 232mm x 180mm
- Weight: 13 kg
Key Features
- IP21 protection for indoor use
- 11kW (15HP) power rating
- Supports 3-phase 400V/480V input
- Variable speed control for AC motors
- Integrated EMC filter
- Advanced motor control algorithms
- User-friendly interface with display
- Multiple communication options (Modbus, Ethernet)
- Energy saving features
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial control systems.
Applications
- Industrial automation
- Pumps and fans
- Conveyor systems
- HVAC systems
- Material handling equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear and tear, extending equipment life
- Supports efficient process control, reducing waste
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal IP21 11kW 400V/480V Variable Speed Drive (SCHATV930D11N4) is available for immediate purchase. Ideal for industrial motor control applications requiring reliable and efficient speed regulation.
