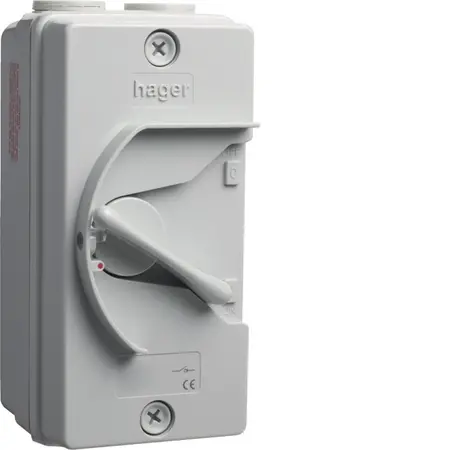

IP66 20A 3P Isolator | Weatherproof | 380-440V | Hager

BRAND: :hager
SKU: JG320IN
$60.50 List price: $77.30
+
IP66 20A 3P isolator with weatherproof design and 380-440V range—ideal for industrial and commercial applications. Built for robust electrical isolation, with compliance to AS/NZS 3000 standards.

Product Name/Title: IP66 20A 3P ISOLATOR

Brand: Hager

SKU: JG320IN

Alternatively Known As: Weatherproof Isolator, 3 Pole Isolator, IP66 Isolator

Technical Specifications
  • Number of poles: 3
  • Rated current: 20A
  • Acceptable current rating AC21: 20A
  • Rated short-time withstand current Icw: 0.24 kA
  • Rated operational voltage: 380 - 440V
  • Rated insulation voltage: 440V
  • Nominal tightening torque: 2 - 2 Nm
  • Operating temperature: -5 - 40 °C
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP66
  • Dimensions (H x L x W): 170mm x 87mm x 84mm
  • Weight: 1.5 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Rated current of 20A with a voltage range of 380-440V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for use in factories and manufacturing plants
  • Commercial: Ideal for commercial buildings requiring robust electrical isolation
  • Outdoor: Designed for outdoor applications due to its weatherproof rating
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager IP66 20A 3P Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical isolation.

JG320IN (JG320IN, 101 Kb) [Download]

reach_declaration_JG320IN-A.pdf (reach_declaration_JG320IN-A.pdf, 103 Kb) [Download]

rohs_declaration_JG320IN-A.pdf (rohs_declaration_JG320IN-A.pdf, 104 Kb) [Download]

(JGXXXIN_USER_INSTRUCTIONS.pdf, 956 Kb) [Download]

(JG_WEATHERPROOF_ISOLATORS.pdf, 120 Kb) [Download]
