Miner ME 1200Hx800Wx300D IP66 Steel French Blue

IP66 Steel Enclosure 1200Hx800Wx300D | UV Resistant | French Blue by B&R Enclosures

BRAND: B&R Enclosures

SKU: ME12083

$3,189.30 List price: $4,008.60

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

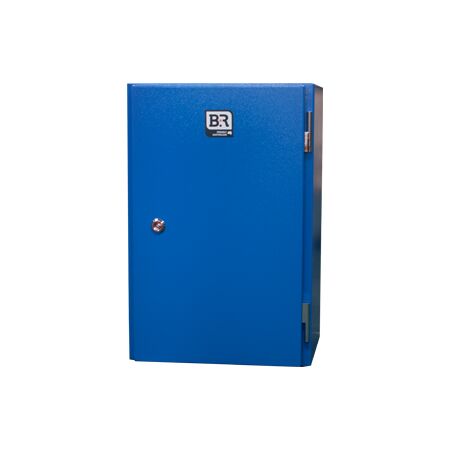

IP66 steel enclosure with 1200Hx800Wx300D dimensions and UV resistant finish—ideal for industrial and mining applications. Built for durability in tough conditions, with zinc coated steel and pintle hinges for secure installation.

Description
Attachments

Product Name/Title: Miner ME 1200Hx800Wx300D IP66 Steel French Blue

Brand: B&R Enclosures

SKU: ME12083

Alternatively Known As: Zinc Coated Steel Enclosure, Industrial Steel Enclosure, IP66 Enclosure

Technical Specifications

Protection Rating: IP66
Material: 2mm zinc coated steel
Temperature Range: -10ºC to +60ºC
Paint Finish: 100 micron UV resistant modified polyester
Lock Type: 7mm square turnbuckle lock
Dimensions (H x L x W): 1200mm x 300mm x 800mm
Weight: 68.9 kg

Key Features

IP66 protection rating
Pintle hinges
Suitable for 1000 volt applications
100 micron UV resistant modified polyester paint finish
Suitable for temperatures -10ºC to +60ºC
Specially designed flat faced gutter
FIP polyurethane gasket with flat face seal for long-life
Manufactured from 2mm zinc coated steel
Powdercoated French Blue or X-15 (orange available on request)
Steel mounting pan powdercoated white
7mm square turnbuckle lock (2 supplied on enclosures 800mm high and above)
Earth strap kit

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Underground mining applications
Industrial environments in tough Australian conditions

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Miner ME – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial and mining applications.

Specification Sheet (, 439 Kb) [Download]
