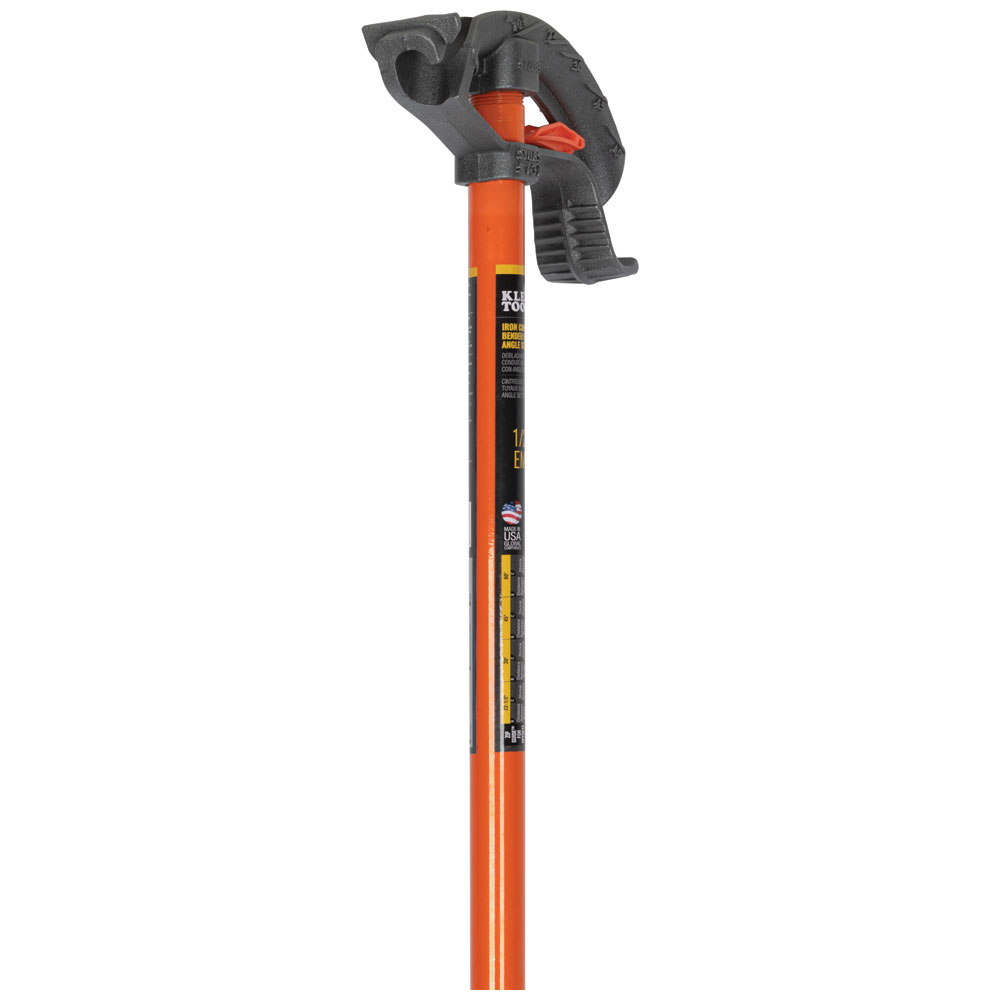

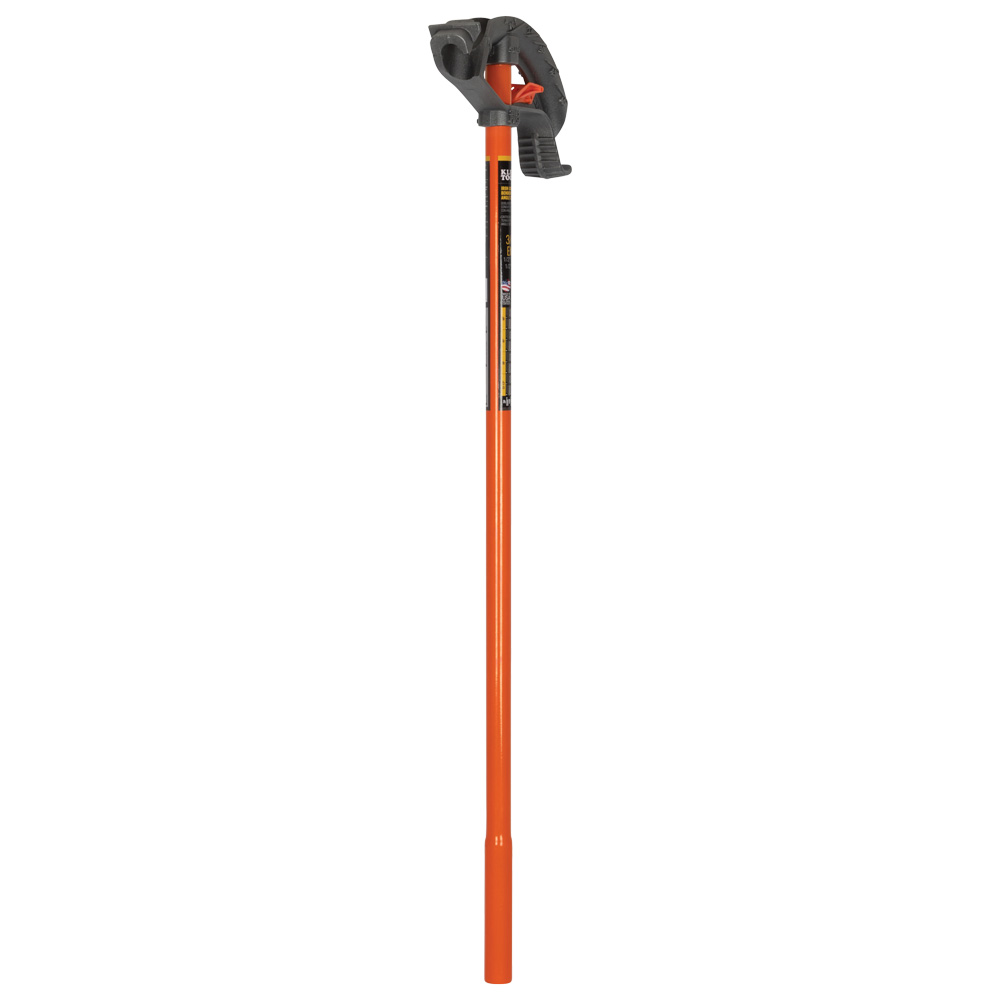

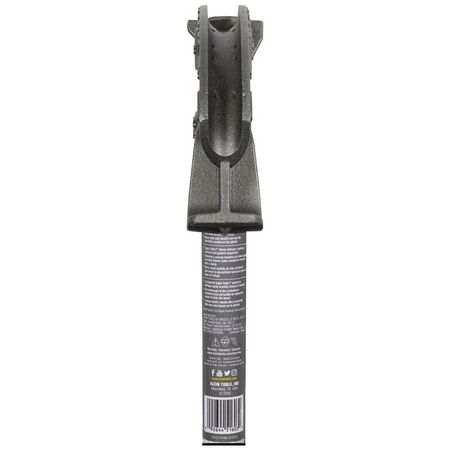

Iron Conduit Bender Full Assembly | 3/4-Inch EMT | Angle Setter™ Technology | Heavy-Duty Cast Iron | by Wattmaster
The Iron Conduit Bender Full Assembly is designed for bending 3/4-inch EMT conduit with precision. Featuring patent pending Angle Setter™ technology, it allows for quick and accurate repeated bends, making it ideal for electrical contractors. Built from heavy-duty cast duct iron, this bender ensures durability on the job site, while bold markings provide fast conduit alignment for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Iron Conduit Bender Full Assembly | 3/4-Inch EMT | Angle Setter™ Technology | Heavy-Duty Cast Iron | by Wattmaster
Brand: Wattmaster
SKU: A-51604
Alternatively Known As: Conduit Bender, EMT Bender, Iron Conduit Bender, Angle Setter Conduit Bender, 3/4 Inch EMT Bender
Technical Specifications
- Material: Heavy-duty cast duct iron
- Conduit Size Compatibility: 3/4-inch EMT, 1/2-inch Rigid, 1/2-inch IMC
- Markings: 10°, 22.5°, 30°, 45°, 60° with offset multipliers
- Handle Length: 38 inches (965 mm)
- Centre-line Bend Radius: 5 inches
- Overall Dimensions: Width 9.8 inches (248 mm), Height 44.1 inches (1120 mm), Length 38 inches (965 mm)
- Weight: 6.6 lb (3.0 kg)
- Dimensions (H x L x W): 1120mm x 965mm x 248mm
- Weight: 3.0 kg

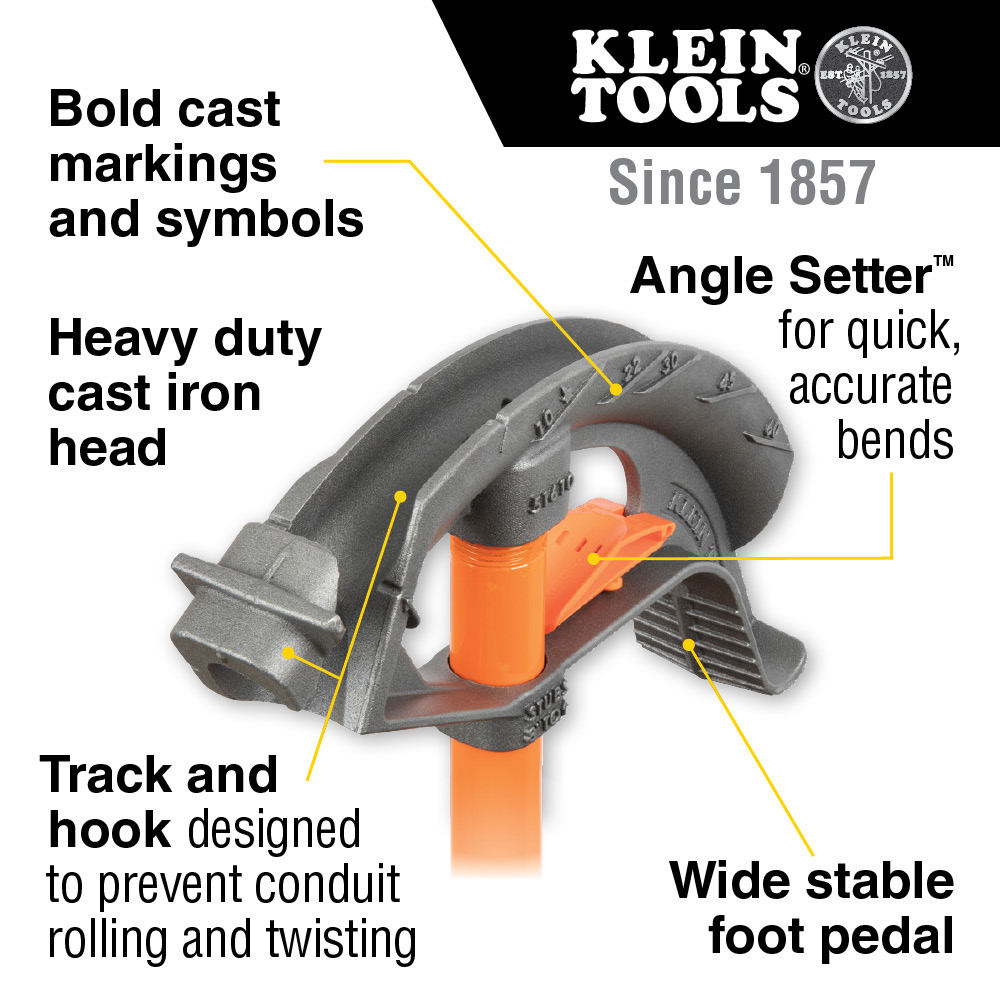

Key Features
- Patent Pending Angle Setter™ technology for quick, accurate repeated bends
- Heavy-duty cast duct iron construction for durability on the jobsite

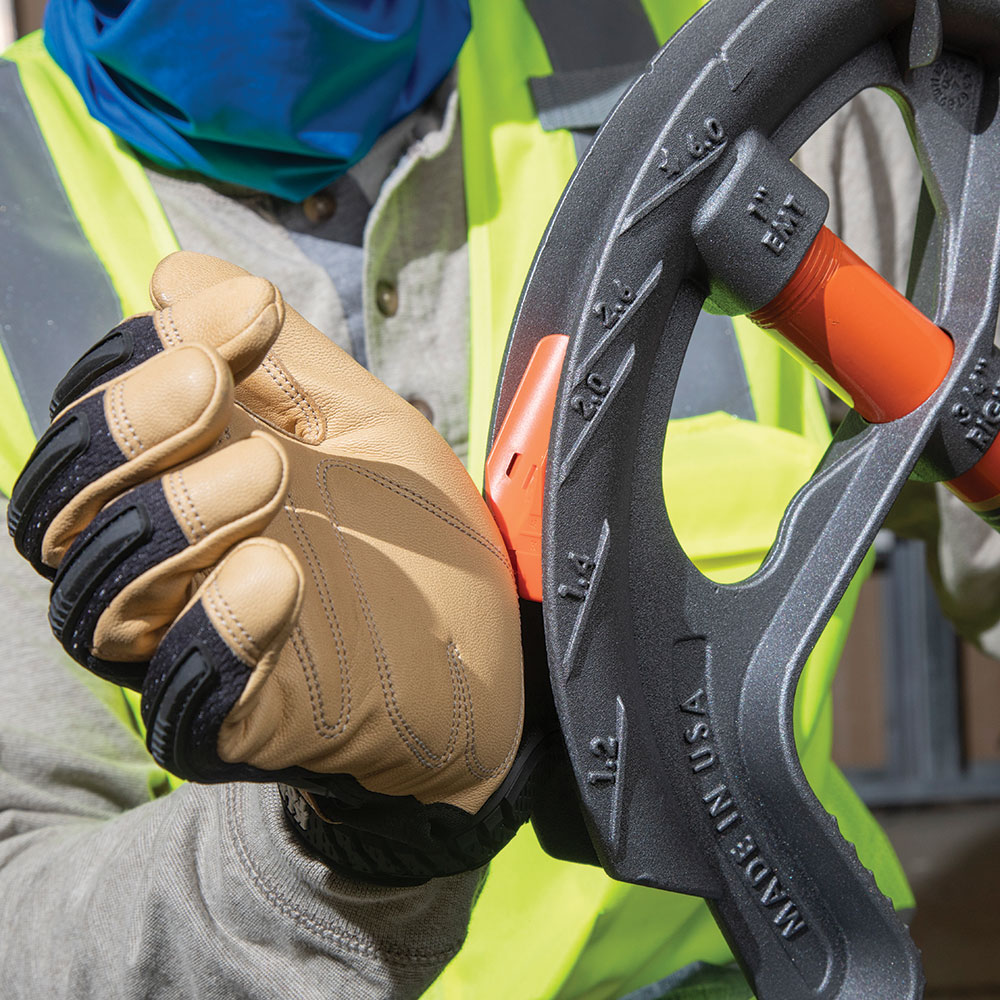

- Bold cast markings and symbols for fast conduit alignment

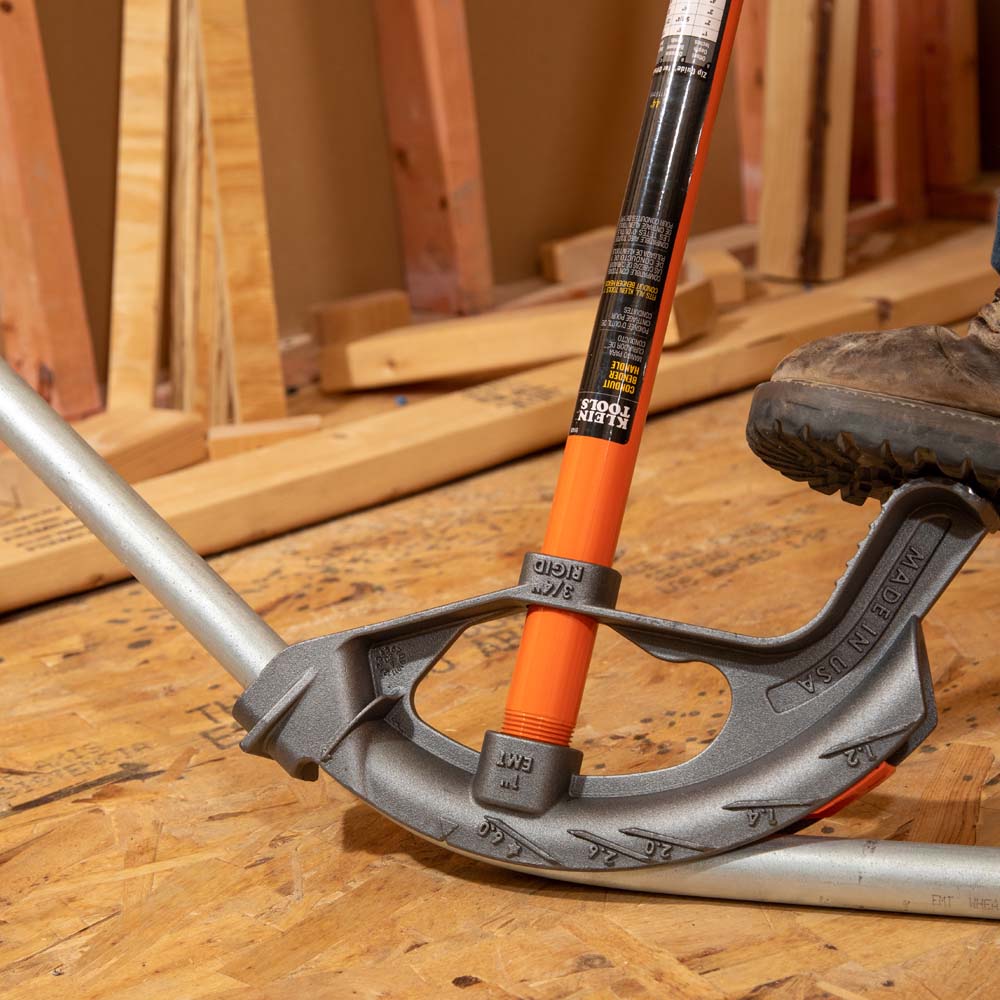

- Wide foot pedal for excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends

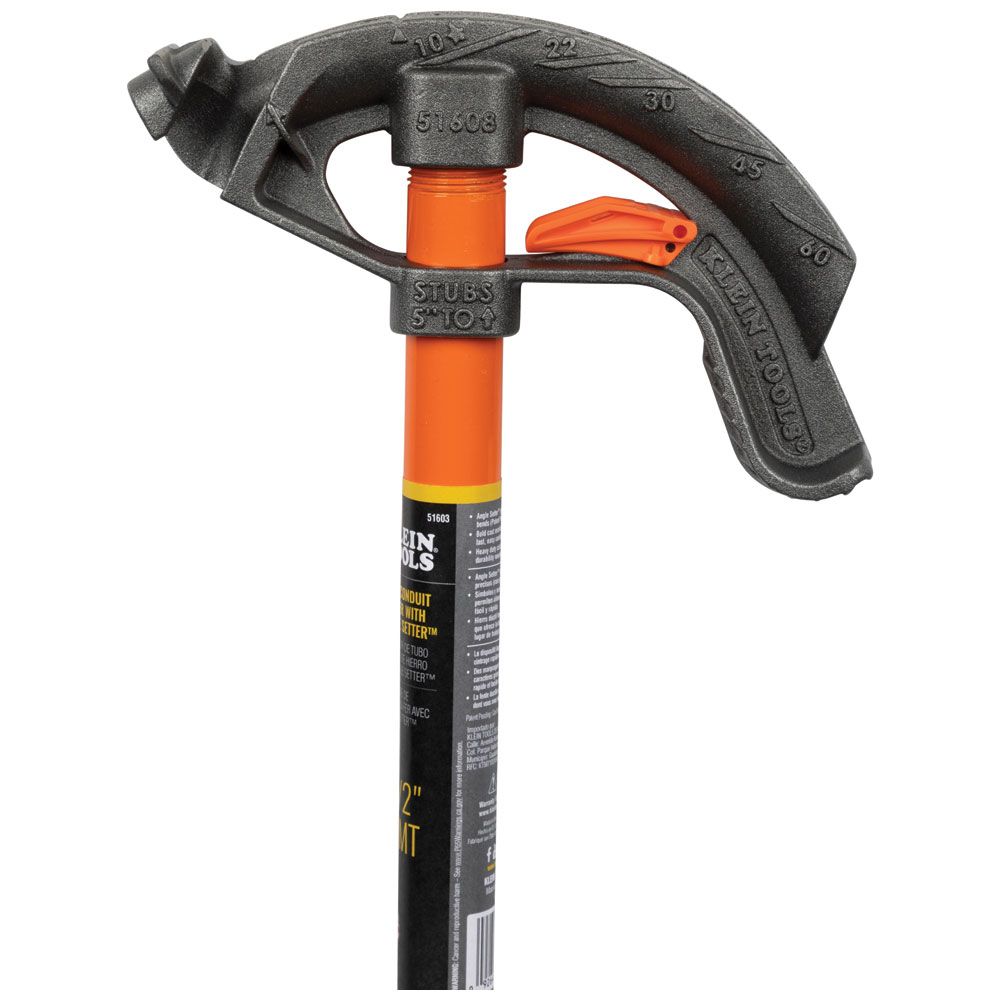

- Includes markings for 10°, 22.5°, 30°, 45°, and 60° bends with offset multipliers

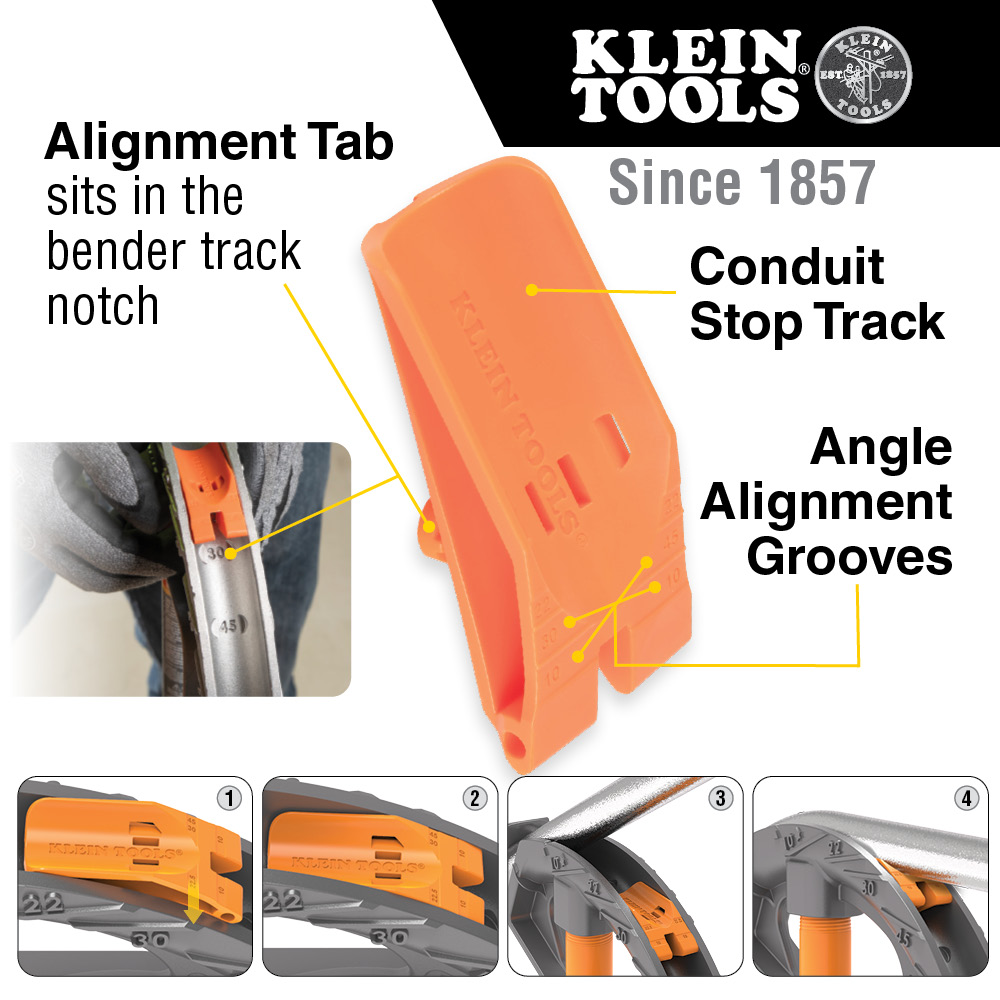

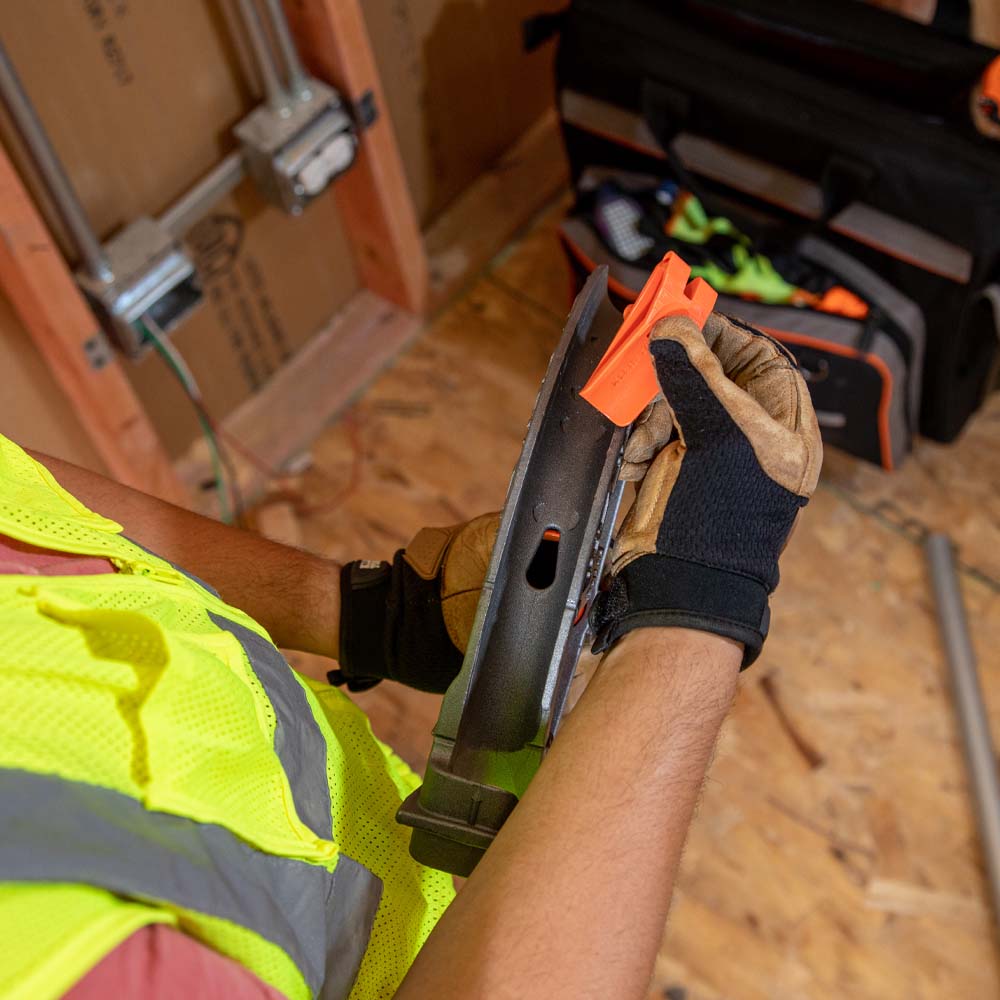

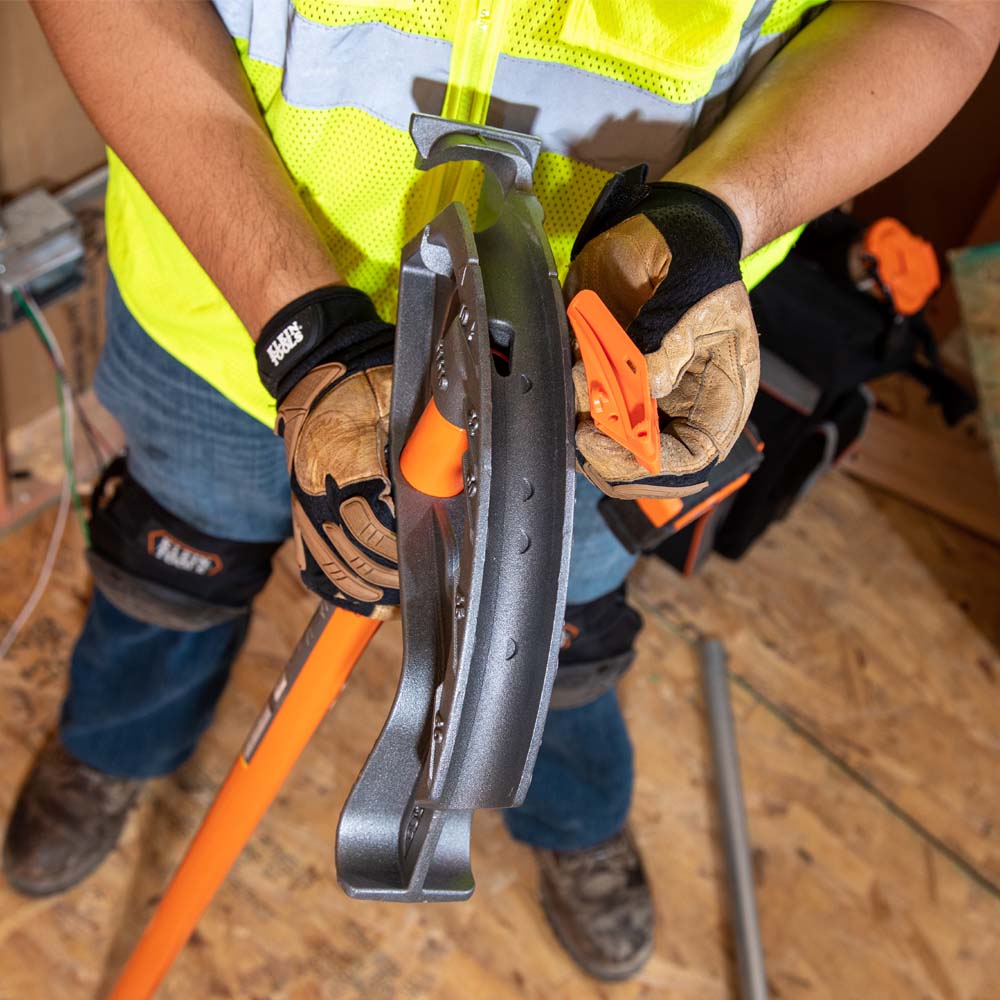

- Angle Setter™ creates a hard stop for consistent bends
Professional Installation Requirements
- Use by trained professionals or under supervision; always wear approved eye protection and maintain a safe work position to avoid loss of balance.
Applications

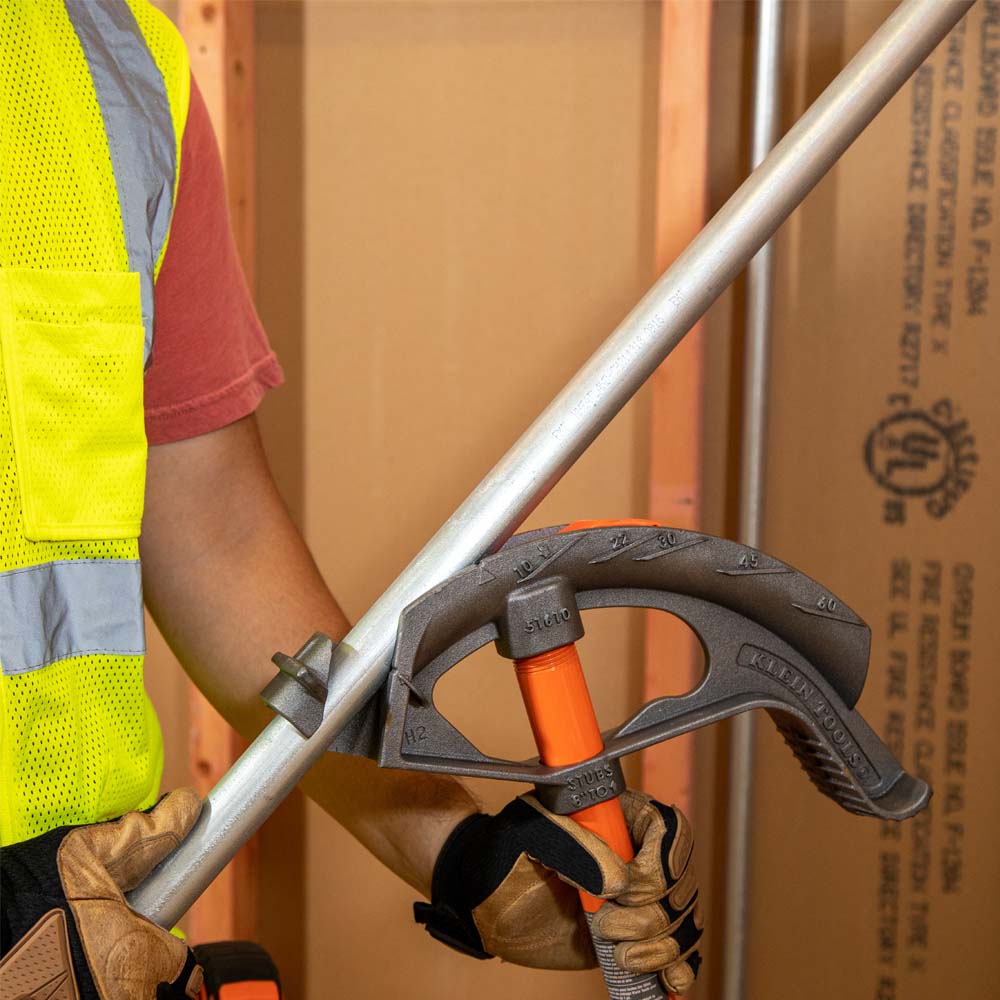

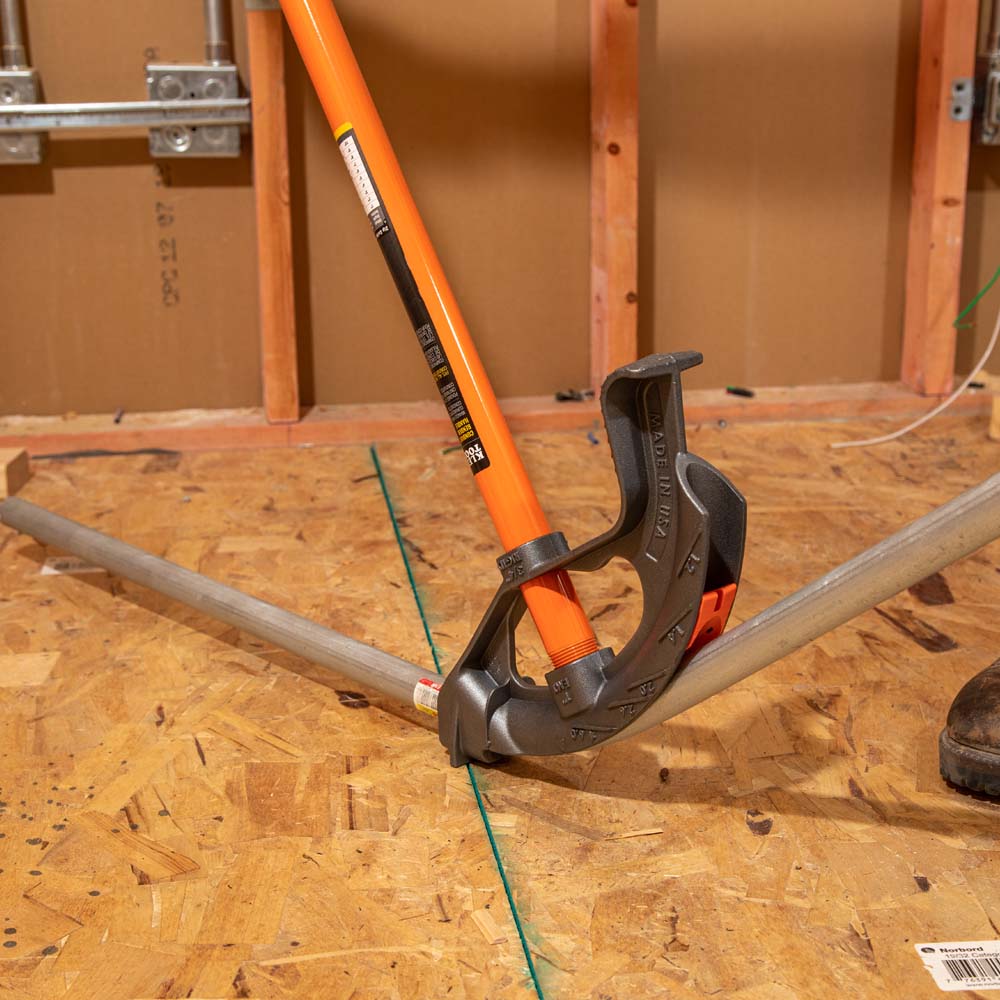

- Bending 3/4-inch EMT conduit
- Bending 1/2-inch Rigid and 1/2-inch IMC conduit
- Electrical conduit installation and maintenance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Enables precise bends reducing material waste during conduit installation
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Iron Conduit Bender Full Assembly 3/4-Inch EMT with Angle Setter™ is available for immediate purchase, ideal for electrical contractors and professionals requiring precise conduit bending.
