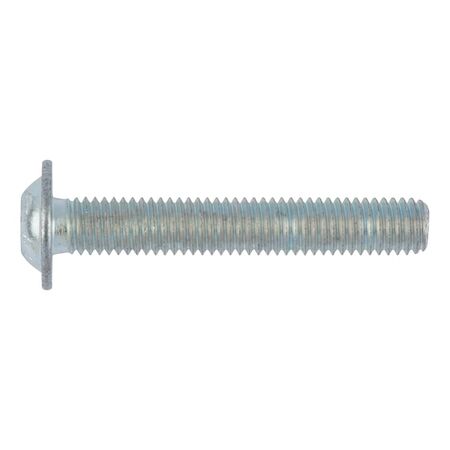

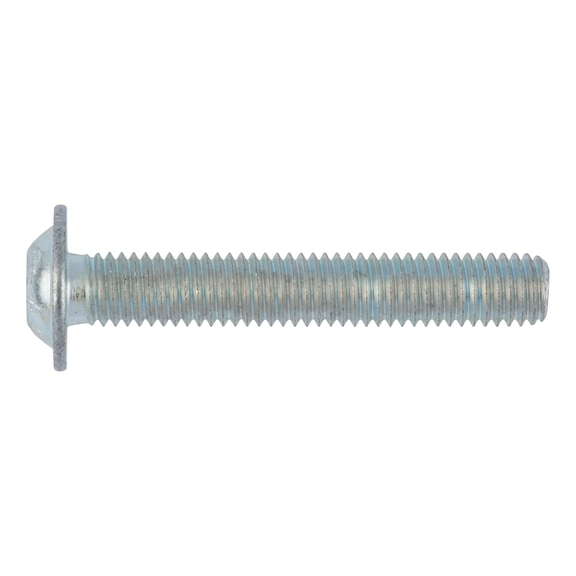

ISO 7380-2 Hexagon Socket Screw | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
ISO 7380-2 Hexagon Socket Screw made from high-strength Steel 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. This button head design ensures a secure fit, making it ideal for mechanical assemblies and precision equipment. Perfect for industrial applications where reliable fastening is required.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ISO 7380-2 Hexagon Socket Screw | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 6000412
Alternatively Known As: Button Head Hex Socket Screw, Collar Screw, ISO 7380-2 Screw, Zinc Plated Hex Socket Screw

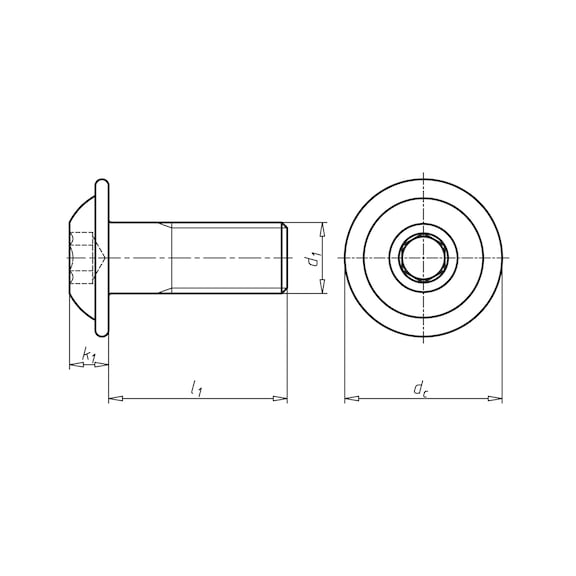

Technical Specifications
- Thread type x nominal diameter: M4
- Length: 12 mm
- Head diameter: 9.4 mm
- Head height: 2.2 mm
- Internal drive: HS2.5 hexagon socket
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 12mm x 9.4mm
- Weight: 0.01 kg
Key Features
- Steel 10.9 property class for high strength
- Zinc-plated with blue passivation for corrosion resistance
- Button head with collar design for secure fit
- Hexagon socket drive for reliable torque application
- Compliant with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application due to limited load capacity of head geometry.
Applications
- Mechanical assemblies requiring secure fastening with limited load capacity
- Electronics and precision equipment assembly
- General industrial and manufacturing use where ISO 7380-2 screws are specified
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring ISO 7380-2 compliant screws.
