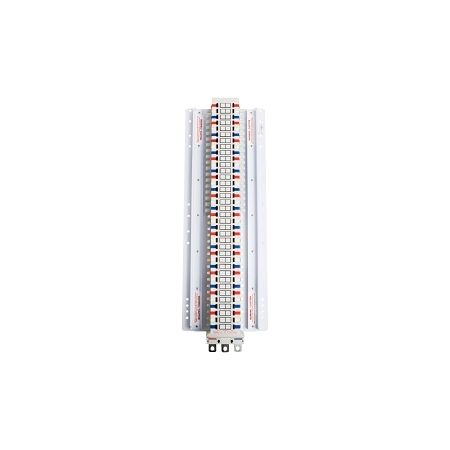

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 1Pole Bottom Feed Red
Brand: NHP
SKU: GB248181BF
Alternatively Known As: NHP Busbar, Isolation Busbar, Power Distribution Busbar
- Rated Current: 250 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 464mm x 82mm x 100mm
- Weight: 5 kg
- 250A rated current with 48 poles for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 1Pole Bottom Feed Red is available now for immediate purchase. Ideal for industrial power distribution applications.
