Isolation Busbar Chassis 250A | 48 Way 1Pole | Top Feed Red by NHP
Isolation busbar chassis with 250A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and distribution boards.
Sign in
Please login to continue to your account.

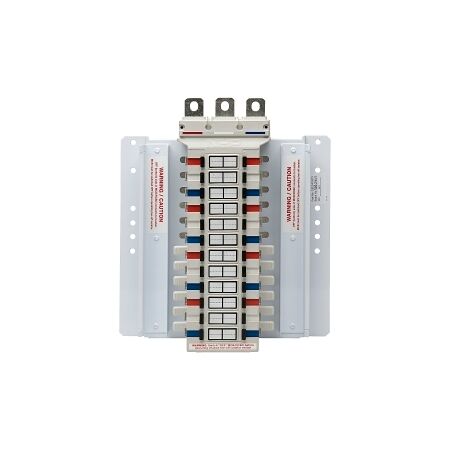

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 1Pole Top Feed Red
Brand: NHP
SKU: GB248181TF
Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN Rail Busbar
- Rated Current: 250 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 464mm x 82mm x 100mm
- Weight: 5 kg
- 250A rated current with 48 poles for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for electrical installations.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 1Pole Top Feed Red is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
