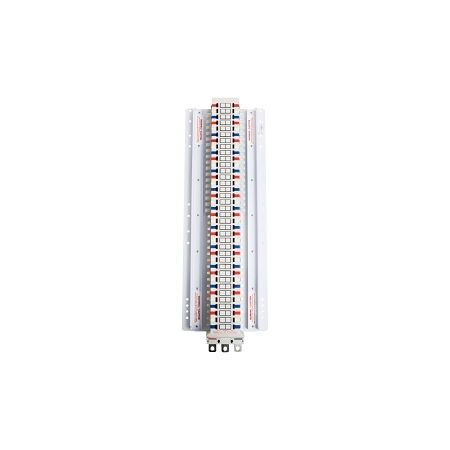

Isolation Busbar Chassis 250A | 72 Way 1Pole | Bottom Feed Red by NHP

BRAND: NHP
SKU: GB272181BF
$2,623.70 List price: $3,484.00
+
Isolation busbar chassis with 250A rated current and 72 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and distribution boards.

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 72 Way 1Pole Bottom Feed Red

Brand: NHP

SKU: GB272181BF

Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 72
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Tee Off Isolator: Yes
  • Capped Tee Offs: 0.5
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 680mm x 82mm x 100mm
  • Weight: 5 kg
Key Features
  • Rated current of 250A with 72 poles for efficient power distribution.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for energy efficiency in power distribution systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 72 Way 1Pole Bottom Feed Red is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

GB272181BF-AU-Chassis-GB-DINT-250A-1-Pole-Bottom-Feed-Datasheet.pdf (GB272181BF-AU-Chassis-GB-DINT-250A-1-Pole-Bottom-Feed-Datasheet.pdf, 488 Kb) [Download]
