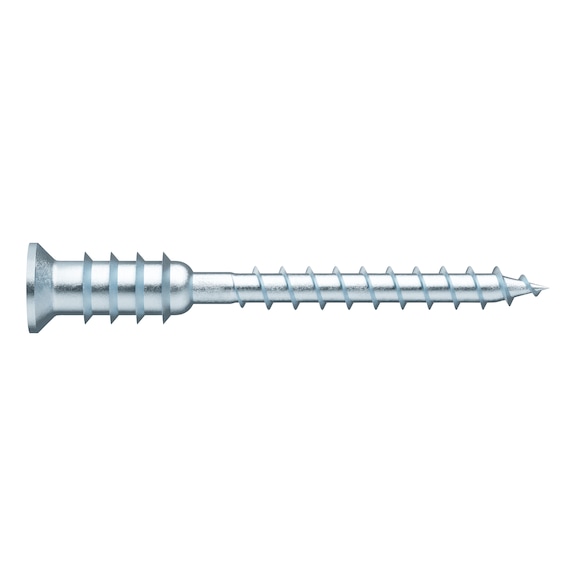

Jamo 4 CS Adjustable Distance Mounting Screw | Zinc-Plated Steel | Countersunk Head | RW40 Drive | @Pack of 100 | by Wurth
The Jamo 4 CS Adjustable Distance Mounting Screw is designed for precise adjustments in wooden substructures, featuring a durable zinc-plated steel construction and a countersunk head for a secure fit. Ideal for construction and renovation projects, this screw ensures reliable anchoring with its partial thread and RW40 drive, making it perfect for both professional and DIY applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Adjustable Distance Mounting Screw | Zinc-Plated Steel | Countersunk Head | RW40 Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 23456480
Alternatively Known As: Adjustable mounting screw, Jamo 4 CS screw, Countersunk head adjustment screw, Zinc plated wood screw, RW40 drive screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 80 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 53 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 80mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw designed for making adjustments to mounting distance of wooden substructures
- RW40 drive for ideal power transmission and fewer bit changes
- Partial thread with underhead thread for precise adjustment
- Countersunk head with ring-shaped fixing grooves for fixed connection
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- High strength and ductility due to adjusted heat treatment
- Zinc plated hardened steel for durability and corrosion resistance
- Non-spreading screw tip geometry to reduce splitting
- Compatible with previous AW drive
Professional Installation Requirements
- Professional installation recommended to ensure correct adjustment and secure fixing, especially on masonry or concrete surfaces.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Suitable for use with dowels and substructures
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
Wurth Jamo 4 CS Adjustable Distance Mounting Screw is available for immediate purchase, ideal for construction and substructure adjustment applications.
