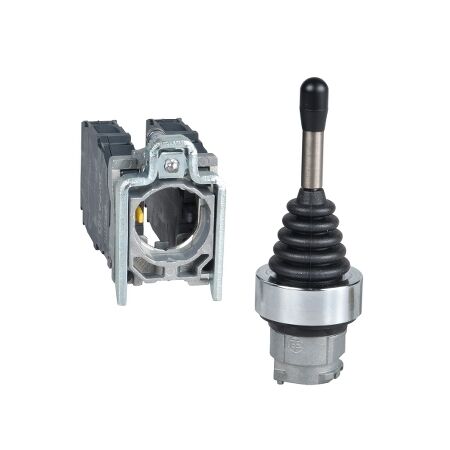

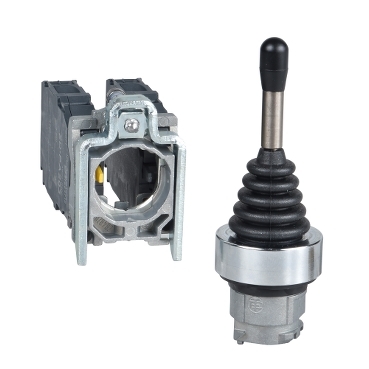

Joystick 4 DIR Spring Return | 4-Directional Control | IP65 Rated | Ergonomic Handle | @Quantity of 1 | by Clipsal
The Joystick 4 DIR Spring Return is designed for precise control in industrial applications, featuring a robust 4-directional mechanism and a spring return for automatic centering. Ideal for automation systems and machinery control panels, this joystick ensures reliable operation with an IP65 rating, making it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joystick 4 DIR Spring Return | 4-Directional Control | IP65 Rated | Ergonomic Handle | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXD4PA24
Alternatively Known As: 4 Direction Joystick, Industrial Joystick Switch, Spring Return Joystick, Clipsal SCHXD4PA24 Joystick
Technical Specifications
- Type: 4-directional joystick
- Spring return to center position
- Contact configuration: 1NO + 1NC (per direction, configurable)
- Rated operational voltage: 240V AC
- Rated operational current: 3A
- Mounting: Panel mount, 22mm diameter
- Material: High-impact plastic and metal
- Ingress protection: IP65 (front panel)
- Dimensions (H x L x W): 90mm x 40mm x 40mm
- Weight: 0.25 kg
Key Features
- 4-directional control for precise operation
- Spring return mechanism for automatic centering
- Robust construction for industrial environments
- Ergonomic handle for comfortable use
- Panel mount design for easy installation
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure correct wiring and safety compliance.
Applications
- Industrial machinery control panels
- Automation systems
- Material handling equipment
- Cranes and hoists
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy waste in automated systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Joystick 4 DIR Spring Return SCHXD4PA24 is available for immediate purchase. Ideal for industrial control panels and automation systems.
