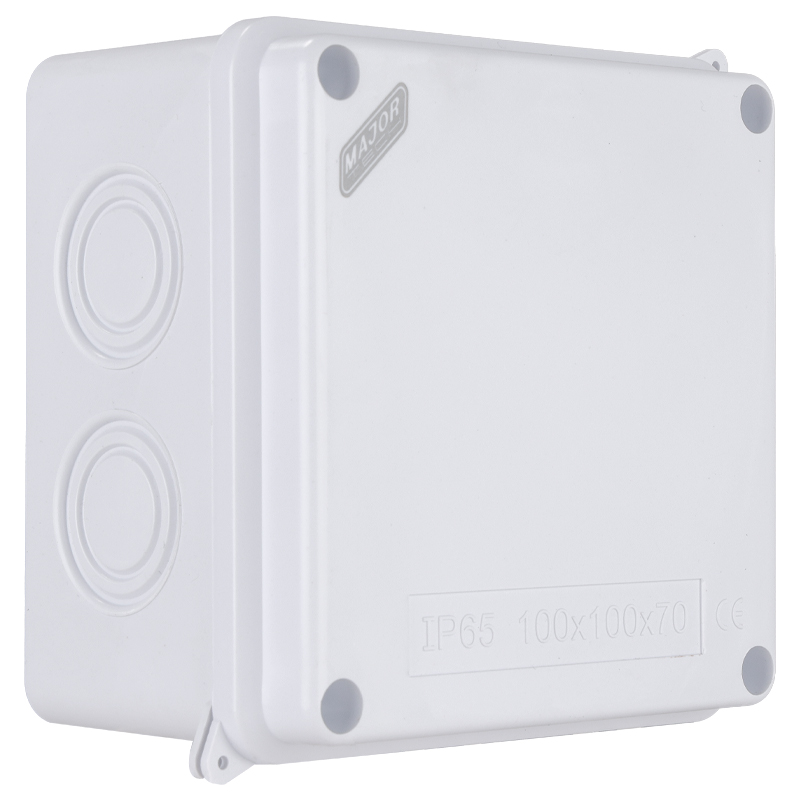

Junction Box IP65 100x100x70mm Grey MajorTech
MajorTech junction box features IP65 rating and 100x100x70mm dimensions in grey. Ideal for weatherproof cable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi VJ10107G Junction Box, IP65 Electrical Junction Box, Weatherproof Cable Junction Box, ABS Enclosure
Technical Specifications
- Model: VJ10107G
- Ingress Protection: IP65
- Impact Protection: IK08
- Material: High-grade non-flammable ABS plastic
- Colour: Grey
- Shape: Square
- Knock-Outs: 7
- Knock-Out Sizes: 1 x 20 mm and 1 x 28 mm per hole
- Ambient Temperature: -5°C to 40°C
- Storage Temperature: 40°C to 75°C, maximum 95% relative humidity
- Manufacturer Standards: IEC 60529 and IEC 60670
- Manufacturer Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001 manufacturing
- Dimensions (H x L x W): 70mm x 100mm x 100mm
- Weight: 0.1522 kg
Key Features
- IP65 protection against dust ingress and water jets
- Seven pre-formed knock-outs for flexible cable entry
- IK08 impact resistance for improved mechanical protection
- Flame-retardant, non-flammable ABS enclosure construction
- Suitable for indoor and light outdoor electrical installations
- Compact square format for cable connections and junctions
Professional Installation Requirements
- Electrical wiring and cable connections should be installed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements. Cable entries must be correctly sealed to maintain the IP65 rating.
Applications
- Indoor electrical cable junctions
- Light outdoor cable connections
- Building and residential electrical installations
- Commercial and industrial wiring enclosures
- Protection of cable joints and terminations from dust and water jets
Standards & Compliance
- AS/NZS 60529: Applicable Australian/New Zealand standard for ingress protection ratings; the manufacturer specifies IEC 60529
- AS/NZS IEC 60670.22:2012: Applicable Australian/New Zealand standard for boxes and enclosures for electrical accessories; the manufacturer specifies IEC 60670
- AS/NZS 3000:2018: Applicable installation standard for electrical wiring systems; installation compliance is required rather than being a product certification claim
Environmental Benefits
- ABS construction provides a durable enclosure that can reduce replacement frequency and material waste
- RoHS approval indicates restriction of specified hazardous substances in the product
- Plastic components may be recyclable subject to local recycling facilities and material-separation requirements
Warranty Information
Five-year limited warranty for the VETi IP55 and IP65 junction box range, subject to Major Tech warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
