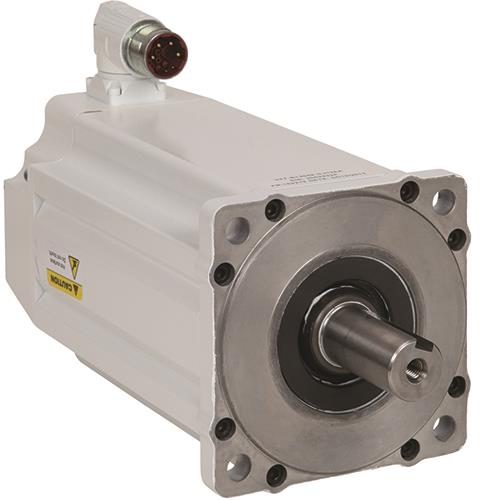

Product Name/Title: Allen-Bradley VPFB1153EPJ12AF Kinetix Food Grade Servo Motor 400V
Brand: Allen-Bradley
SKU: VPFB1153EPJ12AF
Alternatively Known As: Kinetix Food Grade Servo Motor, Allen-Bradley Servo Motor 400V, VPFB1153EPJ12AF Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 115 mm
- Magnet Stack: 3
- Maximum Speed: 3500 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Mounting: IEC metric with free mounting holes (Type FF)
- Brake: None
- Shaft: Keyed
- Dimensions (H x L x W): 115mm x 200mm x 115mm
- Weight: 4.5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operation voltage
- 115 mm frame size with 3 magnet stack
- 3500 RPM maximum speed
- 18-bit absolute multi-turn digital encoder with HIPERFACE DSL interface
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- IEC metric mounting with free mounting holes (Type FF)
- No brake included
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical and safety standards.
Applications
- Food and beverage processing machinery
- Pharmaceutical manufacturing equipment
- Packaging machines requiring food-grade components
- Industrial automation systems in hygienic environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting hygienic manufacturing processes
- High efficiency motor design reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB1153EPJ12AF Kinetix Food Grade Servo Motor is available for immediate purchase, ideal for food processing and hygienic industrial automation applications.
