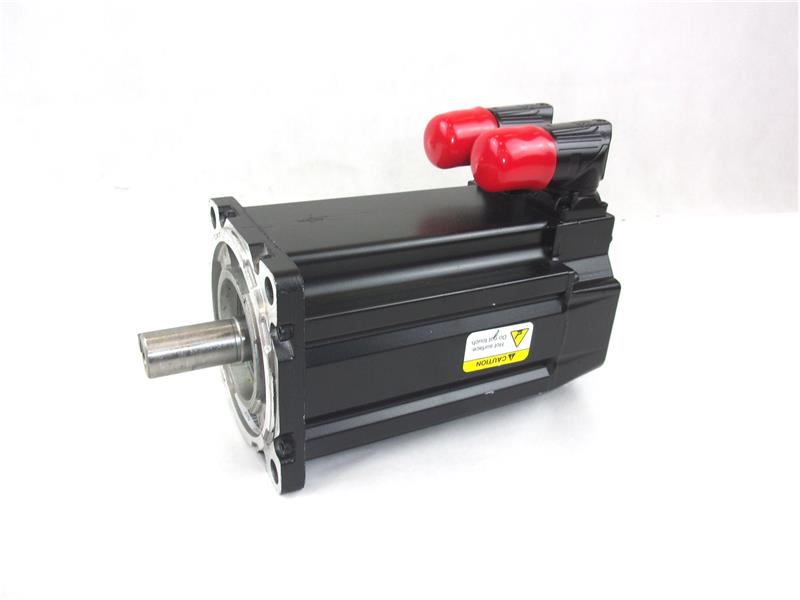

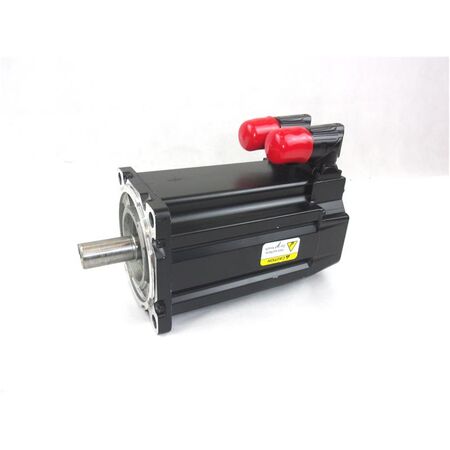

Product Name/Title: Allen-Bradley MPLB430HSJ72AA Kinetix Low Inertia Servo Motor
Brand: Allen-Bradley
SKU: MPLB430HSJ72AA
Alternatively Known As: Kinetix Servo Motor, Low Inertia Servo Motor, MPLB430HSJ72AA Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 115 mm
- Magnet Stack Length: 76.2 mm
- Maximum Speed: 3500 RPM
- Encoder Type: Absolute single-turn encoder (Hiperface protocol)
- Encoder Resolution: 1024 SIN/COS
- Connector Type: Circular (Speedtec) DIN connector
- Shaft: Keyed shaft, no shaft seal
- Brake: None
- Dimensions (H x L x W): 115mm x 150mm x 115mm
- Weight: 2.5 kg
Key Features
- Low inertia design for fast acceleration and deceleration
- 400V operating voltage
- 115 mm frame size
- 76.2 mm magnet stack length
- 3500 RPM maximum speed
- 1024 SIN/COS encoder resolution
- Absolute single-turn encoder with Hiperface protocol
- Shaft key included
- Circular (Speedtec) DIN connector
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is recommended to ensure proper integration and safety.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring servo motor control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor design reduces power consumption during operation
- Supports precise control to minimize waste and improve system efficiency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley MPLB430HSJ72AA Kinetix Low Inertia Servo Motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
