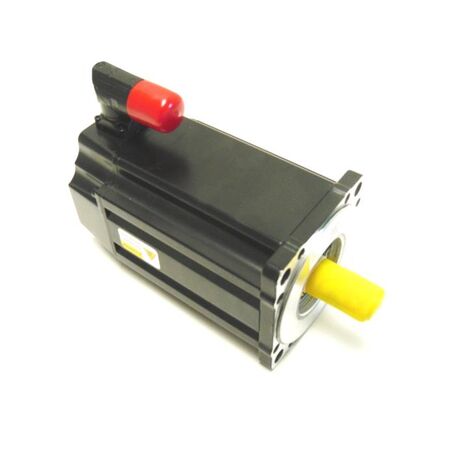

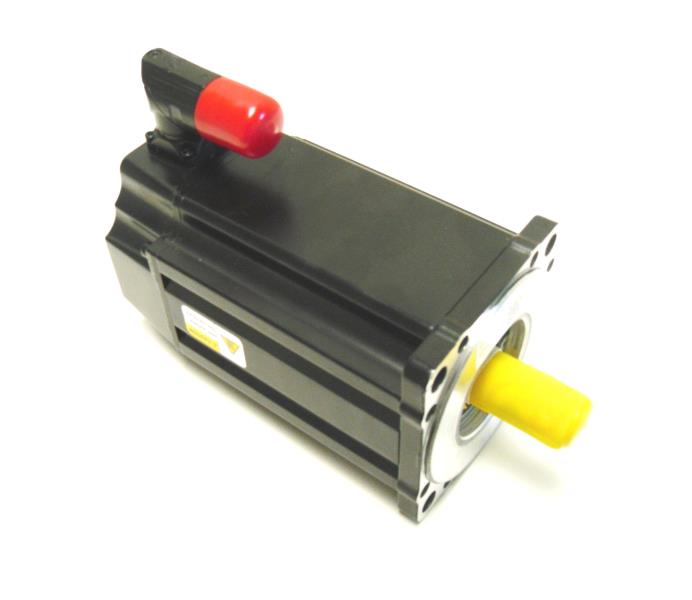

Product Name/Title: Allen-Bradley VPLB1003FPK12AA Kinetix Low Inertia Servo Motor 400V
Brand: Allen-Bradley
SKU: VPLB1003FPK12AA
Alternatively Known As: Allen-Bradley Kinetix Servo Motor, VPLB1003FPK12AA Servo Motor, Low Inertia Servo Motor 400V
Technical Specifications
- Voltage: 400V
- Frame Size: 100 mm
- Magnet Stack: 3
- Maximum Speed: 4500 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Shaft: Smooth
- Connector: Single SpeedTec DIN
- Mounting: IEC metric with free mounting holes (Type FF)
- Brake: None
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 5 kg
Key Features
- Low inertia design for fast acceleration and deceleration
- 400V operating voltage
- 100 mm frame size
- 3 magnet stack for enhanced torque
- 4500 RPM maximum speed
- 18-bit absolute multi-turn digital encoder with HIPERFACE DSL interface
- Smooth shaft for reliable coupling
- Single SpeedTec DIN connector
- IEC metric mounting with free mounting holes (Type FF)
- No brake included
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with servo motor systems and electrical wiring standards.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing machinery requiring servo motor control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor design reduces energy consumption in industrial applications
- Durable construction extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPLB1003FPK12AA servo motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
