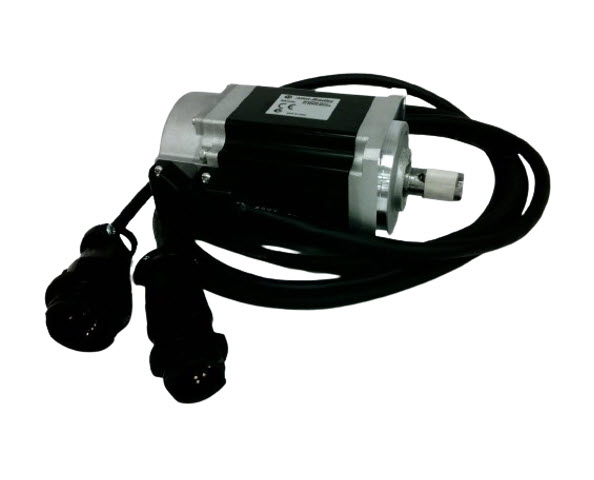

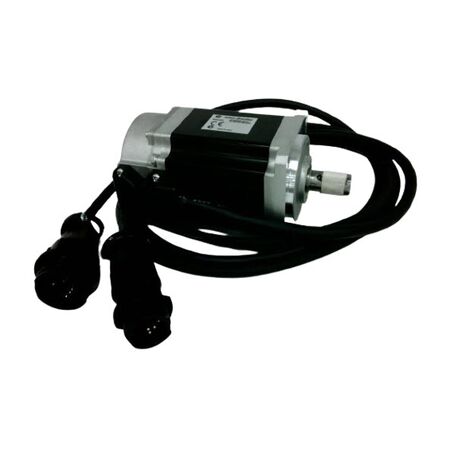

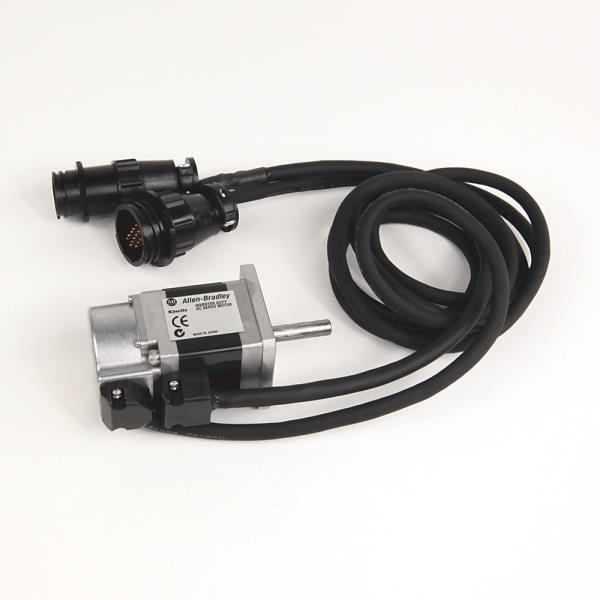

Product Name/Title: Allen-Bradley TLYA230PBJ62AA Kinetix Servo Motor 200V NEMA 23
Brand: Allen-Bradley
SKU: TLYA230PBJ62AA
Alternatively Known As: Kinetix Servo Motor, Allen-Bradley Servo Motor 200V, NEMA 23 Servo Motor, Absolute Encoder Servo Motor
Technical Specifications
- Voltage: 200V
- Frame Size: NEMA 23 (70 mm)
- Magnet Stack Length: 76.2 mm
- Maximum Speed: 5000 RPM
- Encoder Type: Multi-turn absolute
- Encoder Resolution: 17-bit (131072 counts/revolution)
- Encoder Backup: Battery-backed
- IP Rating: IP65
- Connector Type: Circular connectors
- Brake: None
- Dimensions (H x L x W): 70mm x 120mm x 70mm
- Weight: 1.5 kg
Key Features
- 200V operating voltage
- NEMA 23 frame size with 70 mm dimension
- 76.2 mm magnet stack length
- 5000 RPM maximum speed
- Multi-turn absolute encoder with 17-bit resolution (131072 counts/revolution)
- Battery-backed encoder for position retention
- IP65 rated housing with shaft key and no shaft seal
- Cables with circular connectors for reliable connections
- No brake included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing equipment requiring servo motor control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor reduces energy consumption in industrial applications
- Durable IP65 housing protects against dust and water ingress, extending product life
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley TLYA230PBJ62AA Kinetix Servo Motor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
