Kinetix Servo Motor | Food Grade Enclosure | 2500 RPM Speed | 400V Operation | by Allen-Bradley
Kinetix Servo Motor | Food Grade Enclosure | 2500 RPM Speed | 400V Operation | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

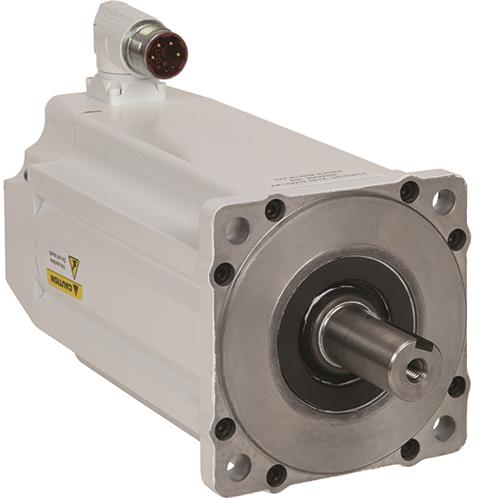

Product Name/Title: Allen-Bradley VPFB1652CPJ14AF Kinetix Servo Motor with Food Grade Enclosure
Brand: Allen-Bradley
SKU: VPFB1652CPJ14AF
Alternatively Known As: Kinetix Servo Motor, Food Grade Servo Motor, VPFB1652CPJ14AF Servo Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 165 mm
- Magnet Stack: 2
- Maximum Speed: 2500 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Brake: 24V DC holding brake
- Mounting: IEC metric with free mounting holes (Type F)
- Dimensions (H x L x W): 165mm x 250mm x 165mm
- Weight: 5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operation voltage
- 165 mm frame size
- 2 magnet stack design
- 2500 RPM maximum speed
- 18-bit absolute multi-turn digital encoder with HIPERFACE DSL interface
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- 24V DC holding brake
- IEC metric mounting with free mounting holes (Type F)
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical and safety standards.
Applications
- Industrial automation and robotics
- Food and beverage processing requiring food grade equipment
- Precision motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure supports hygienic manufacturing reducing contamination risks
- High efficiency motor reduces energy consumption in industrial applications
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB1652CPJ14AF Kinetix Servo Motor with Food Grade Enclosure is available for immediate purchase, ideal for industrial automation and food processing applications.
