Kinetix Servo Motor | Food Grade Enclosure | 400V Operation | 3500 RPM Max Speed | by Allen-Bradley

SKU: VPFB1304EPJ14AF
$10,426.00 List price: $12,992.40
+
Kinetix Servo Motor | Food Grade Enclosure | 400V Operation | 3500 RPM Max Speed | by Allen-Bradley

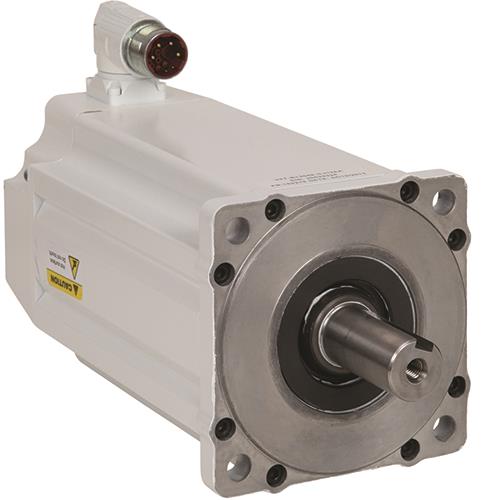

Product Name/Title: Allen-Bradley VPFB1304EPJ14AF Kinetix Servo Motor with Food Grade Enclosure

Brand: Allen-Bradley

SKU: VPFB1304EPJ14AF

Alternatively Known As: Kinetix Servo Motor, Food Grade Servo Motor, VPFB1304EPJ14AF Motor

Technical Specifications
  • Voltage: 400V
  • Frame Size: 130 mm
  • Magnet Stack: 4
  • Maximum Speed: 3500 RPM
  • Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
  • Connector: Single SpeedTec DIN
  • Brake: 24V DC holding brake
  • Mounting: IEC metric with free mounting holes (Type F)
  • Shaft: Keyed shaft
  • Dimensions (H x L x W): 130mm x 200mm x 130mm
  • Weight: 5 kg
Key Features
  • Food grade enclosure suitable for hygienic environments
  • 400V operation voltage
  • 130 mm frame size
  • 4 magnet stack design for efficient torque
  • 3500 RPM maximum speed
  • 18-bit absolute multi-turn digital encoder with HIPERFACE DSL interface
  • Shaft key for secure coupling
  • Single SpeedTec DIN connector
  • 24V DC holding brake
  • IEC metric mounting with free mounting holes (Type F)
Professional Installation Requirements
  • Installation by a qualified technician or electrician is required to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation and robotics
  • Food and beverage processing requiring food grade equipment
  • Precision motion control systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Food grade enclosure supports hygienic manufacturing reducing contamination risks
  • Efficient motor design reduces energy consumption during operation
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley VPFB1304EPJ14AF Kinetix Servo Motor with Food Grade Enclosure is available for immediate purchase, ideal for industrial automation and food processing applications.
