Trade Discount 14%

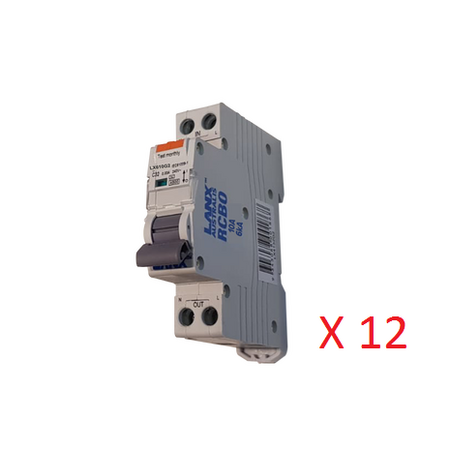

LANX 10A Single Pole RCBO | 30mA 6kA Type A | Pack of 12
Pack of 12 LANX 10A single pole RCBOs with 30mA sensitivity and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with integrated electronic leakage protection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LANX 10A Single Pole RCBO | 30mA 6kA Type A | Pack of 12
SKU: LX610G2x12
Alternatively Known As: Residual Current Breaker with Overcurrent, RCBO 10A, Single Pole RCBO Type A, 30mA RCBO, 6kA RCBO
Technical Specifications
- Residual Current Characteristics: Type A
- Pole Configuration: 1P+N
- Tripping Curve: B, C
- Rated Short-Circuit Breaking Capacity: 6kA
- Rated Current: 10A
- Rated Voltage: 240V
- Rated Frequency: 50Hz
- Rated Residual Operating Current: 0.03A
- Tripping Duration: ≤ 0.1s
- Electro-Mechanical Endurance: 4000 cycles
- Degree of Protection: IP20
- Fastening Torque: 1.2N.m
- DIN Rail Mounting
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- Operating mechanism with DPN form, N pole opening first
- Integrated electronic leakage protection circuit
- Trigger with middle-position and clamshell design
- Protects against earth fault, short-circuit, overload
Professional Installation Requirements
- Licensed electrician installation required with proper wiring and circuit protection following local electrical safety regulations.
Applications
- Residential electrical circuit protection
- Commercial electrical installations
- Industrial electrical safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty.
Available Now
The LANX 10A Single Pole RCBO Pack of 12 is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical safety applications.
