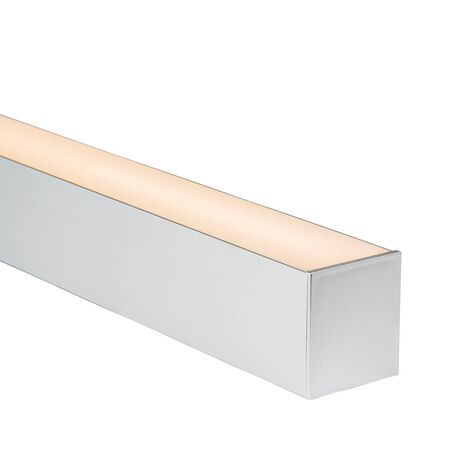

Large Deep Square Aluminium Profile | UV Stabilised | Silver Finish | Custom Cut by Havit

SKU: HV9693-8090
$100.30 List price: $130.50
+
Large deep square aluminium profile with UV stabilised PC diffuser and silver finish—ideal for residential and commercial LED strip lighting. Built for modern lighting solutions, with custom cut lengths and easy suspension.

Product Name/Title: Large Deep Square Aluminium Profile

Brand: Havit

SKU: HV9693-8090

Alternatively Known As: LED Strip Aluminium Profile, LED Channel, LED Strip Housing

Technical Specifications
  • IP rating: IP20
  • Part Number: HV9693-8090
  • Included: Custom Cut Length with 2x End Caps Per Length

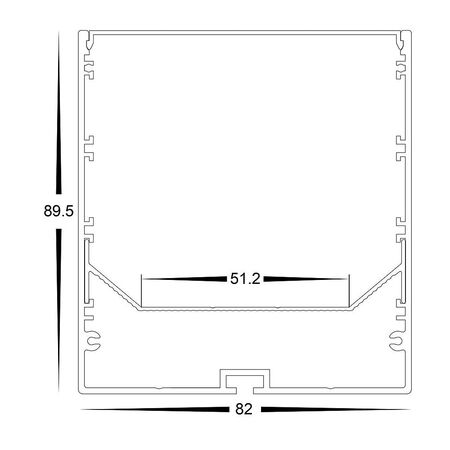

  • Dimensions (H x L x W): 90mm x 500mm x 82mm
  • Weight: 1.0 kg
Key Features
  • Aluminium Profile for LED Strip
  • Silver Aluminium Finish
  • UV Stabilised PC Diffuser

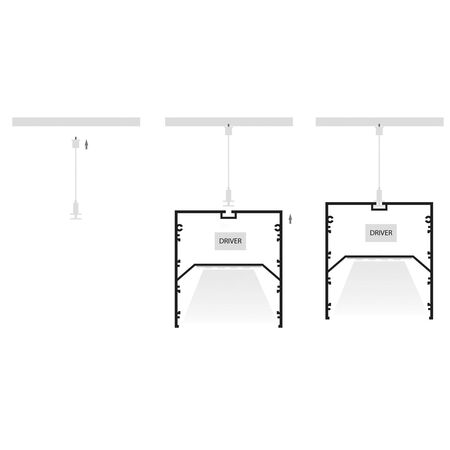

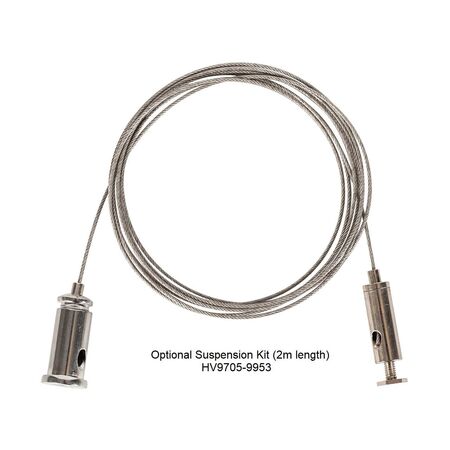

  • Can Be Suspended
  • Sold Per Half Metre with Custom Cuts Available
  • Long Run Diffuser available - Max. 20m
  • Maximum Length of 3 Metres
Professional Installation Requirements
  • Professional installation is recommended for optimal results.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring LED strip lighting
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Large Deep Square Aluminium Profile for LED Strip is available now for immediate purchase. Ideal for residential and commercial spaces, providing a modern lighting solution.

Download (HV9693-8090_Data_Sheet_NOV21_58f6558e-c9ac-4fde-88a9-5b6927b11bf7.pdf, 552 Kb) [Download]
