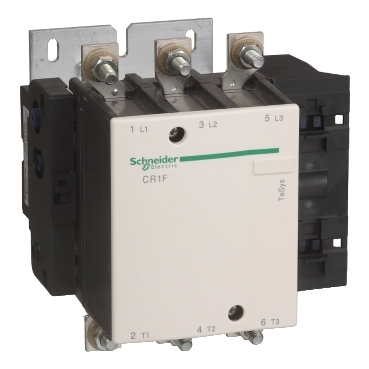

Latch Contactor 185A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | by Clipsal
The Latch Contactor 185A AC3 is engineered for industrial motor control and automation, featuring a robust electromagnetic latch mechanism that saves energy and ensures reliable performance. With a high current rating of 185A AC3 and 275A AC1, it's perfect for demanding environments like HVAC systems and commercial automation panels. Designed for panel or DIN rail mounting, this contactor is built to last, making it an ideal choice for professionals seeking efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Latch Contactor 185A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | by Clipsal
Brand: Clipsal
SKU: SCHCR1F185F7
Alternatively Known As: Schneider Electric Latch Contactor, 185A Contactor, Industrial Latching Contactor, SCHCR1F185F7, Heavy Duty Contactor
Technical Specifications
- Rated operational current: 185A (AC3), 275A (AC1)
- Control voltage: 220-240V AC 50/60Hz
- Number of poles: 3
- Utilization category: AC3/AC1
- Conforms to IEC 60947-4-1
- Electromagnetic latch operation
- Mechanical endurance: 10 million operations
- Electrical endurance: 1 million operations (AC3)
- Ambient temperature: -5°C to +60°C
- Mounting: Panel or DIN rail
- Dimensions (H x L x W): 200mm x 180mm x 140mm
- Weight: 2.5 kg
Key Features
- High current rating: 185A AC3, 275A AC1
- Electromagnetic latch mechanism for energy saving
- Robust design for heavy-duty applications
- Suitable for remote and local control
- Reliable performance in demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Lighting circuits
- HVAC systems
- Pumping stations
- Commercial and industrial automation panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Latch mechanism reduces continuous coil power consumption, lowering energy usage.
- Durable construction extends product lifespan, reducing replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Latch Contactor 185A AC3/275A (SCHCR1F185F7) is available for immediate purchase. Ideal for industrial and commercial motor control and automation applications.
