LBV310-XXAGDRKMX | Level sensors

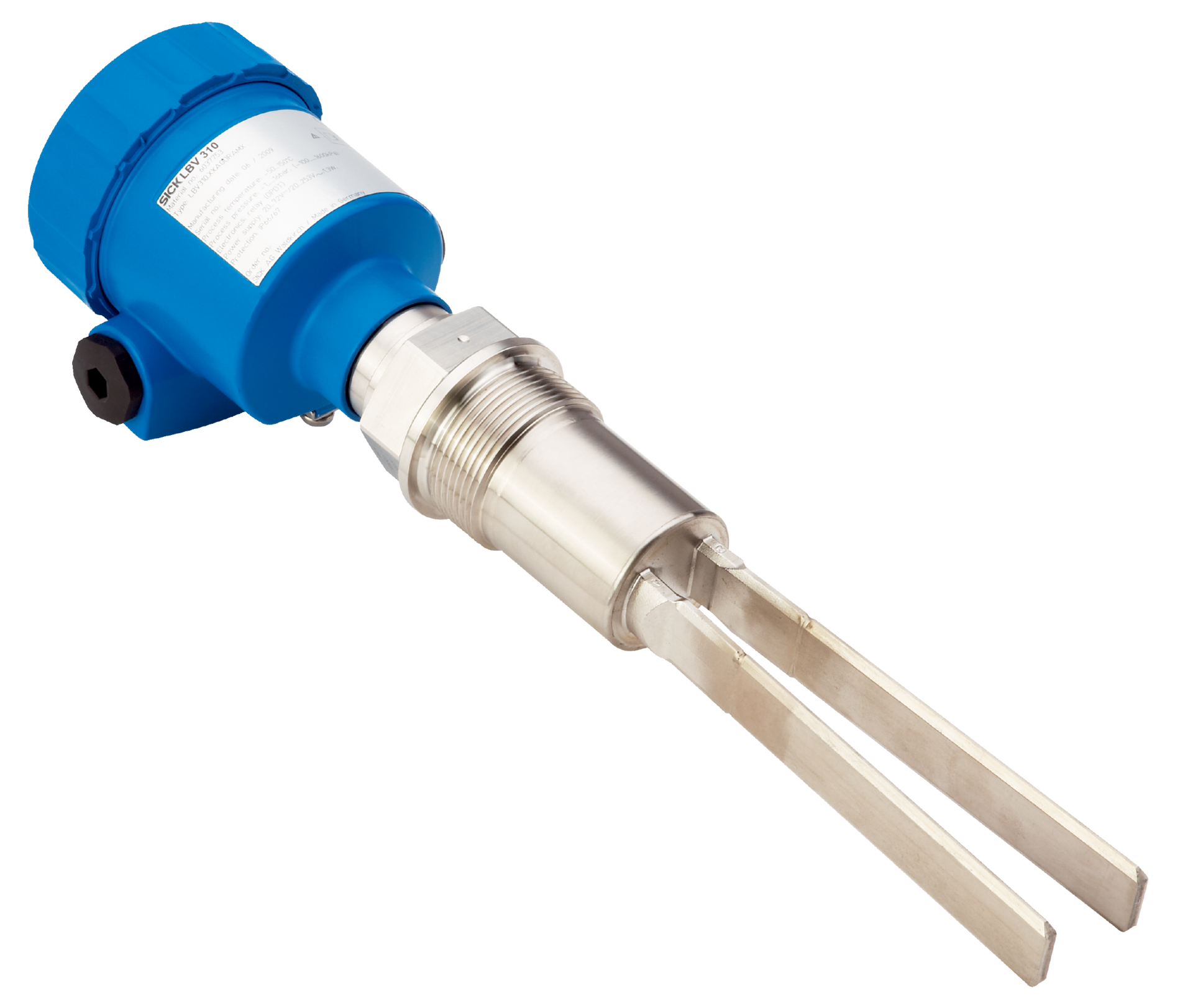

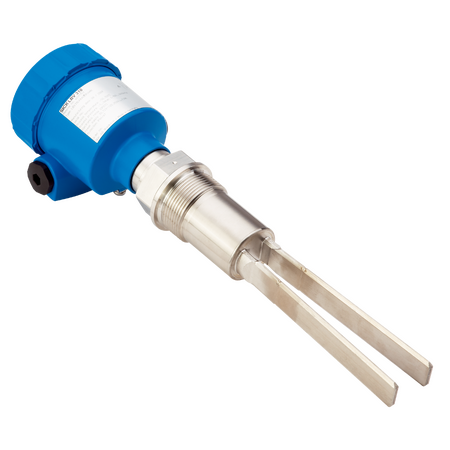

The SICK LBV310-XXAGDRKMX is a tuning fork level sensor designed for reliable switch measurement of bulk solids in industrial applications, featuring robust stainless steel construction and high protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV310-XXAGDRKMX | Level sensors
Brand: SICK
SKU: 6038011
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV310
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Tuning fork
- Probe length: 220 mm
- Process pressure range: -1 bar to 25 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 25
- Housing material: Plastic
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 220mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Suitable for bulk solids with particle size less than 10 mm
- Tuning fork probe type with 220 mm probe length
- Double relay (DPDT) output signal for reliable switching
- Wide process pressure range from -1 bar to 25 bar
- Robust stainless steel wetted parts (1.4404 / 316L)
- High enclosure rating IP66 and IP67 for harsh environments
- Wide supply voltage range from 20 V DC to 253 V AC
- Fast initialization time under 2 seconds
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and switching in storage silos and hoppers
- Process control in material handling and processing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- High reliability reduces need for replacements and maintenance
Warranty Information
Standard manufacturer warranty applies, typically 1 to 2 years against defects.
Available Now
The SICK LBV310-XXAGDRKMX tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement and switching applications.
