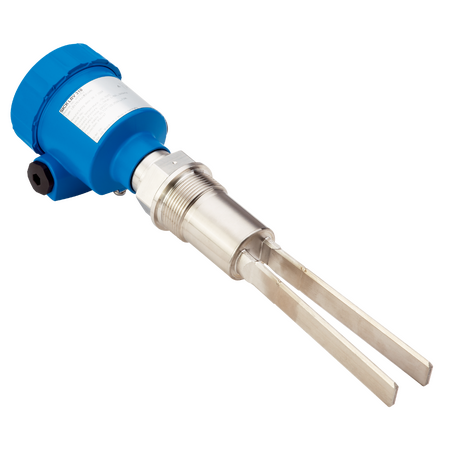

LBV310-XXANDRAMX | Level sensors

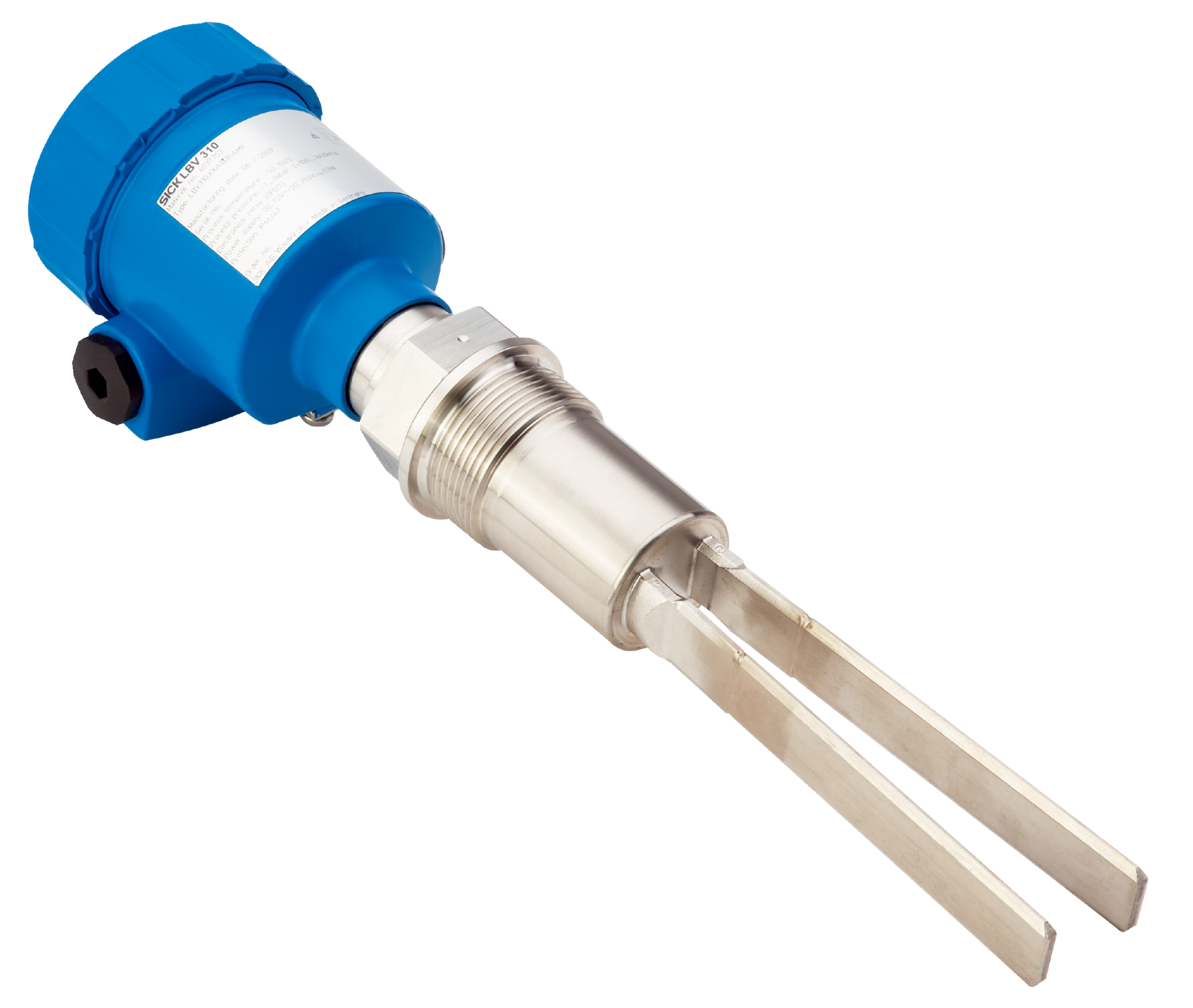

The SICK LBV310-XXANDRAMX is a reliable tuning fork level sensor designed for bulk solids measurement with robust stainless steel construction and high process tolerance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV310-XXANDRAMX | Level sensors
Brand: SICK
SKU: 6038035
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV310
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Tuning fork
- Probe length: 220 mm
- Process pressure range: -1 bar to 25 bar
- Process temperature range: -50°C to +150°C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts material: Stainless steel 1.4404 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40°C to +80°C
- Ambient storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 220mm x 60mm x 60mm
- Weight: 1.5 kg
Key Features
- Tuning fork probe type with 220 mm probe length
- Double relay (DPDT) output signal
- High process pressure tolerance from -1 bar to 25 bar
- Wide process temperature range from -50°C to +150°C
- IP66 and IP67 rated enclosure for robust protection
- Stainless steel wetted parts (1.4404 / 316L) and aluminum housing
- VDE protection class 1 certified
- Fast response time of 500 ms to 1000 ms
- High mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure safety and compliance.
Applications
- Bulk solids level measurement in industrial processes
- Suitable for use in materials with particle size less than 10 mm
- Ideal for process environments with pressure from -1 bar to 25 bar and temperatures from -50°C to +150°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV310-XXANDRAMX Level Sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
