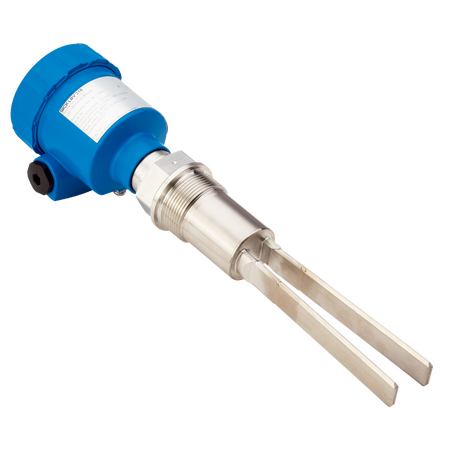

LBV310-XXCGDCKNX Level sensors
The SICK LBV310-XXCGDCKNX is a reliable tuning fork level sensor designed for bulk solids measurement with high accuracy and robust stainless steel construction
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV310-XXCGDCKNX | Level sensors
Brand: SICK
SKU: 6038103
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV310
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 220 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: < 4.2 mA
- Initialization time: < 3 s
- Connection type: ½" NPT
- Output signal: Non-contact switch
- Hysteresis: 10 mm
- Output current: < 400 mA
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 25
- Housing material: Plastic
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 300mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type with 220 mm probe length
- Non-contact switch output signal
- High accuracy with ±10 mm sensor element accuracy
- Robust stainless steel wetted parts (1.4404 / 316L)
- Wide process temperature range from -50 °C to +150 °C
- IP66 and IP67 rated enclosure for harsh environments
- Low power consumption under 4.2 mA
- Fast response time of 500 ms to 1000 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Suitable for use in materials with particle size less than 10 mm
- Ideal for process pressure environments from -1 bar to 25 bar
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact switching reduces wear and tear, extending product life
- Low power consumption contributes to energy efficiency
- Durable stainless steel construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK LBV310-XXCGDCKNX Level Sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
