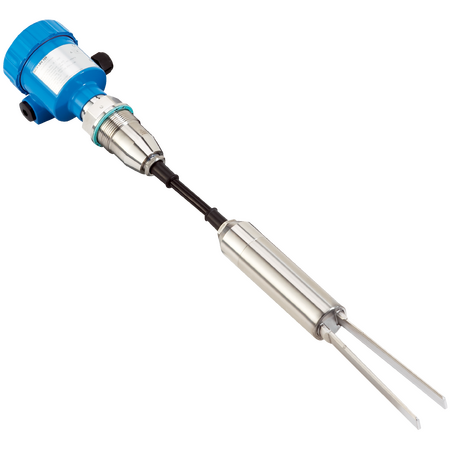

LBV320-XXHNDRANX00600 | Level sensors
The SICK LBV320-XXHNDRANX00600 is a robust tuning fork level sensor designed for bulk solids measurement and switching, featuring stainless steel wetted parts and high IP rating for reliable operation in demanding industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV320-XXHNDRANX00600 | Level sensors
Brand: SICK
SKU: 6038477
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV320
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 600 mm
- Process pressure range: -1 bar to 6 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Tensile strength: ≤ 3,000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Output signal: Double relay (DPDT)
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Connection type: ½" NPT
- Wetted parts material: Stainless steel 1.4404 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318LN, PUR
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 600mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Tuning fork probe type with 600 mm probe length
- Suitable for process pressures from -1 bar to 6 bar
- Operates in process temperatures from -40 °C to +150 °C
- Double relay (DPDT) output signal
- High enclosure rating of IP66 and IP67 for harsh environments
- Wetted parts made of stainless steel 1.4404 / 316L for corrosion resistance
- Aluminum housing with stainless steel 316L, 318LN, PUR sensor materials
- Fast response time of 500 ms to 1000 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and switch applications in storage tanks and silos
- Suitable for materials with particle size less than 10 mm and fill material density ≥ 0.008 g/cm³
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV320-XXHNDRANX00600 tuning fork level sensor is available for immediate purchase, ideal for bulk solids level measurement in industrial applications.
