LBV320-XXTGDCAMX00500 | Level sensors

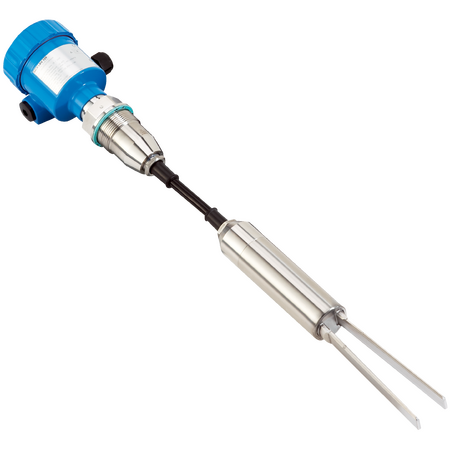

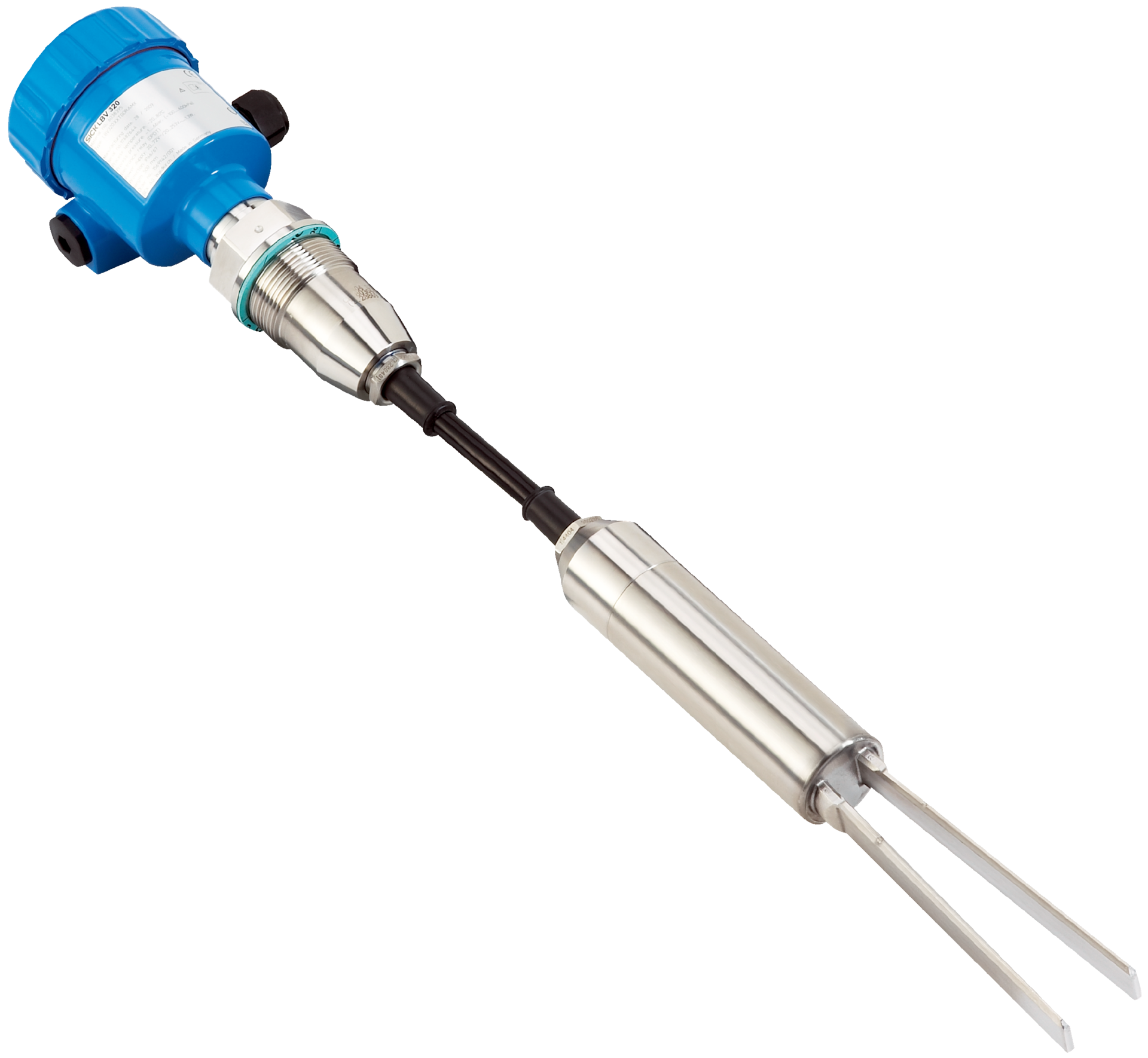

The SICK LBV320-XXTGDCAMX00500 is a robust tuning fork level sensor designed for accurate switch measurement of bulk solids in industrial applications, featuring stainless steel construction and high ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV320-XXTGDCAMX00500 | Level sensors
Brand: SICK
SKU: 6063819
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV320
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 500 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Tensile strength: ≤ 3,000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: < 4.2 mA
- Output signal: Non-contact switch
- Output current: < 400 mA
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 6
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318LN, PUR
- Ambient operating temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 500mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- Non-contact switch output signal
- High enclosure rating of IP66 and IP67 for dust and water protection
- Stainless steel wetted parts for corrosion resistance
- Fast response time of 500 ms to 1000 ms
- Low power consumption below 4.2 mA
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and switch applications in material handling
- Suitable for use in harsh environments with dust and particulate matter
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption contributes to energy efficiency
- Non-contact switching reduces wear and maintenance needs
Warranty Information
Standard manufacturer warranty of 12 months against defects in materials and workmanship.
Available Now
The SICK LBV320-XXTGDCAMX00500 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
