LBV320-XXTGDTKMX12000 | Level sensors

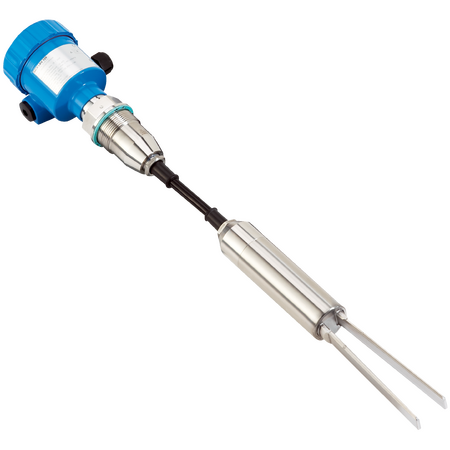

The SICK LBV320-XXTGDTKMX12000 is a tuning fork level sensor designed for accurate and reliable switch measurement of bulk solids in industrial applications, featuring robust stainless steel construction and IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV320-XXTGDTKMX12000 | Level sensors
Brand: SICK
SKU: 6039725
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, Silo Level Sensor, Industrial Level Sensor
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 12,000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Tensile strength: ≤ 3,000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1,000 ms
- Supply voltage: 10 V DC to 55 V DC
- Output signal: 1 x PNP/NPN transistor output
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 6
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318LN, PUR
- Ambient operating temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 12000mm x 50mm x 50mm
- Weight: 5 kg
Key Features
- Tuning fork probe type for reliable switch measurement
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- High accuracy with ±10 mm sensor element precision
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP66 and IP67 rated enclosure for harsh environments
- Volt-free transistor output with PNP/NPN options
- Fast response time of 500 ms to 1000 ms
- Long mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level measurement in industrial storage and processing
- Material handling and inventory control in manufacturing plants
- Monitoring fill levels in silos, hoppers, and bins
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Supports efficient material management reducing overfilling and spillage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV320-XXTGDTKMX12000 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
