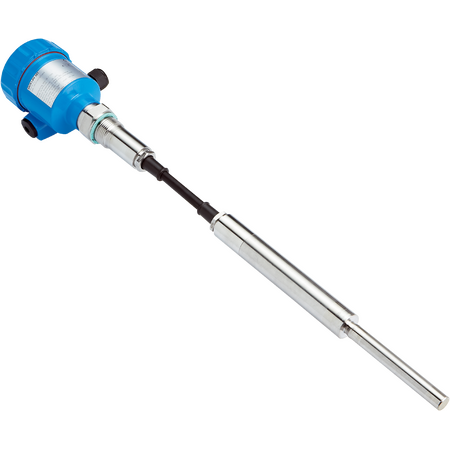

LBV321-GXTGDRAMX01500 | Level sensors

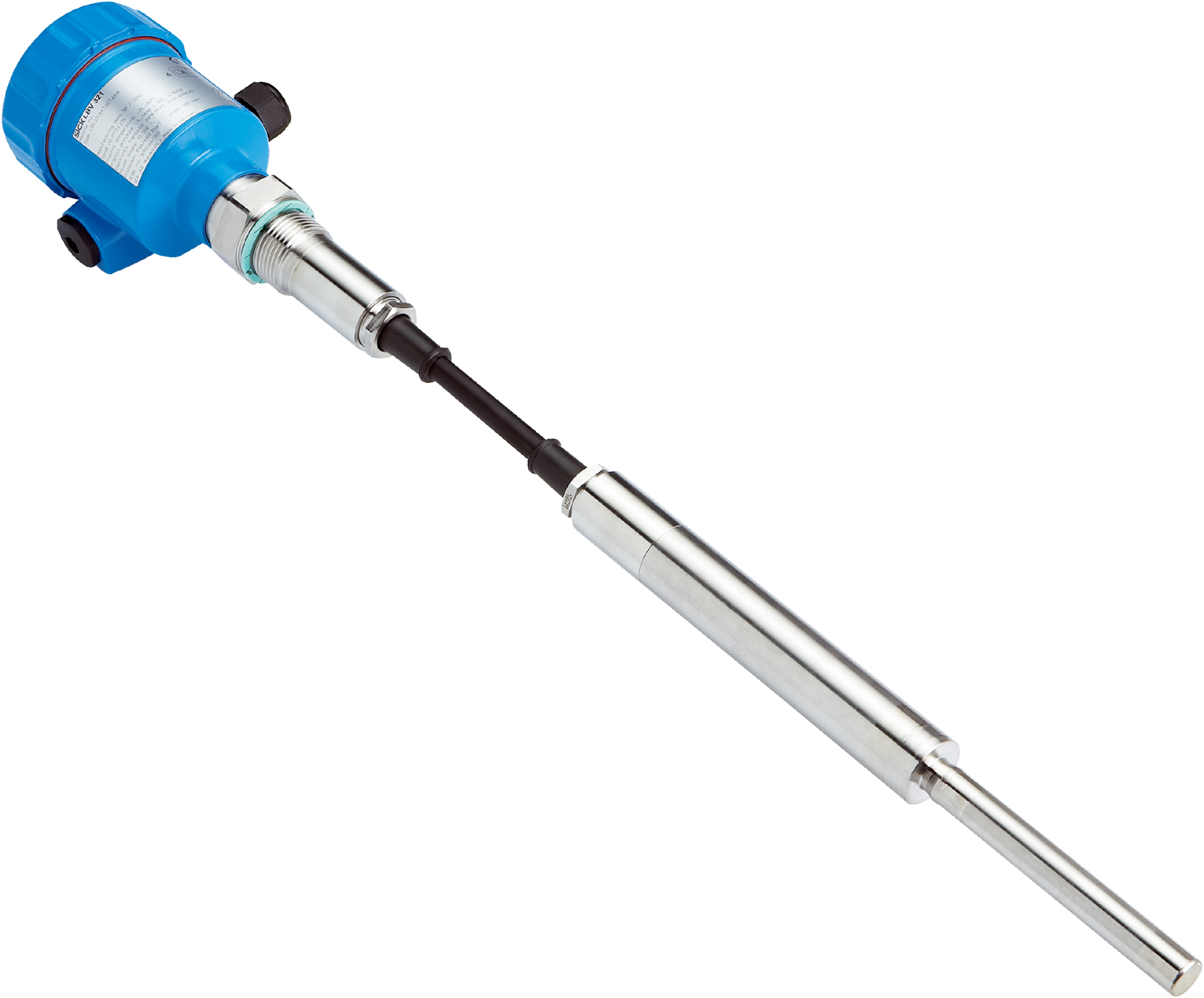

The SICK LBV321-GXTGDRAMX01500 is a robust level sensor designed for bulk solids measurement with a 1500 mm rod probe, featuring ATEX certification and high accuracy for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV321-GXTGDRAMX01500 | Level sensors
Brand: SICK
SKU: 6070558
Alternatively Known As: Bulk solids level sensor, Rod probe level switch, ATEX certified level sensor, Industrial level sensor for solids
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 1500 mm
- Process pressure range: -1 bar to 6 bar
- Process temperature range: -20°C to +80°C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 500 ms or 100 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: >10 µA; <3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 50mm x 1500mm x 50mm
- Weight: 2.5 kg
Key Features
- Rod probe type with 1500 mm length
- Switch measurement for bulk solids
- ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db certified
- Double relay (DPDT) output signal
- Enclosure rating IP66 and IP67 for dust and water protection
- Stainless steel 1.4404 / 316L wetted parts
- Process connection G 1 ½, DIN 3852-A, PN6 / 316L
- Supply voltage 20 V DC to 72 V DC and 20 V AC to 253 V AC
- Response time 500 ms or 100 ms
- Accuracy ±10 mm with reproducibility ≤5 mm
- VDE protection class 1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Use in environments requiring ATEX certification for explosive atmospheres
- Suitable for process pressures from -1 bar to 6 bar and temperatures from -20°C to +80°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- Reliable operation reduces risk of process spills and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV321-GXTGDRAMX01500 level sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high reliability and ATEX certification.
