LBV330-CKAZFNVMX0240 | Level sensors

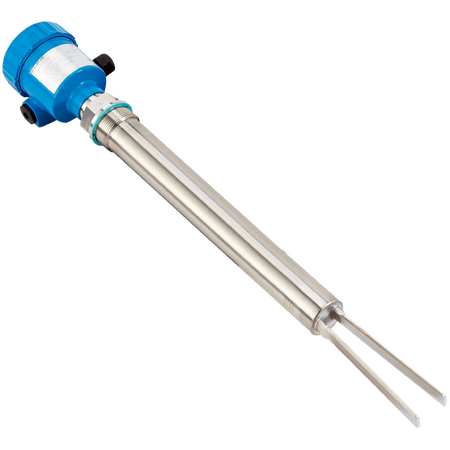

The SICK LBV330-CKAZFNVMX0240 is a robust tuning fork level sensor designed for accurate and reliable level switching of bulk solids in industrial applications, featuring ATEX certification and stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-CKAZFNVMX0240 | Level sensors
Brand: SICK
SKU: 6057164
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK LBV330 Level Sensor, ATEX Level Sensor
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 240 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 4.5 V DC to 12 V DC
- Power consumption: 1 mA / 2.5 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: NAMUR
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Flange DN 100 PN 6 Form C, DIN2501/316L
- Housing material: Stainless steel 316L
- Operating ambient temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 240mm x 100mm x 100mm
- Weight: 2.5 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +150 °C
- ATEX certified for use in explosive atmospheres
- Stainless steel wetted parts and housing for durability
- IP66 and IP67 rated enclosure for protection against dust and water
- NAMUR output signal for easy integration with control systems
- Fast response time of 500 ms to 1000 ms
- High mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with hazardous area equipment and ATEX certified devices to ensure compliance and safety.
Applications
- Bulk solids level measurement in industrial processes
- Suitable for use in harsh environments with ATEX hazardous area approvals
- Process industries requiring reliable level switching for powders and granules
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption (1 mA / 2.5 mA) minimizes energy use
- Reliable operation reduces risk of process spills and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV330-CKAZFNVMX0240 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
