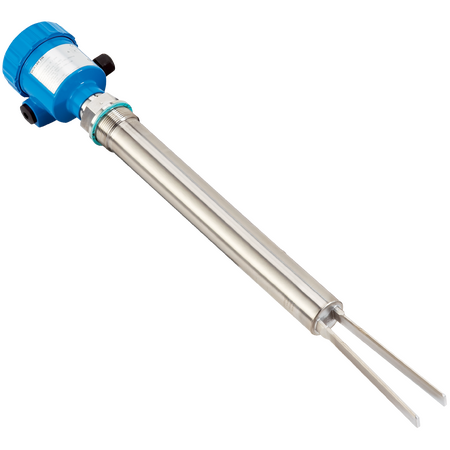

LBV330-GXAGDRAMX2000 | Level sensors
The SICK LBV330-GXAGDRAMX2000 is a robust tuning fork level sensor designed for accurate bulk solids measurement in industrial applications, featuring high durability and ATEX certification for hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-GXAGDRAMX2000 | Level sensors
Brand: SICK
SKU: 6041373
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK LBV330 Level Detector
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Tuning fork
- Probe length: 2000 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms or 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 25
- Housing material: Aluminum
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 2.5 kg
Key Features
- Tuning fork probe type with 2000 mm probe length
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +150 °C
- Double relay (DPDT) output signal for reliable switching
- High enclosure rating of IP66 and IP67 for dust and water protection
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and monitoring in silos, hoppers, and bins
- Suitable for harsh environments with ATEX certification
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption enhances energy efficiency
- Reliable switching reduces material spillage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK LBV330-GXAGDRAMX2000 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
