LBV330-LXAGDTAMX2000 | Level sensors

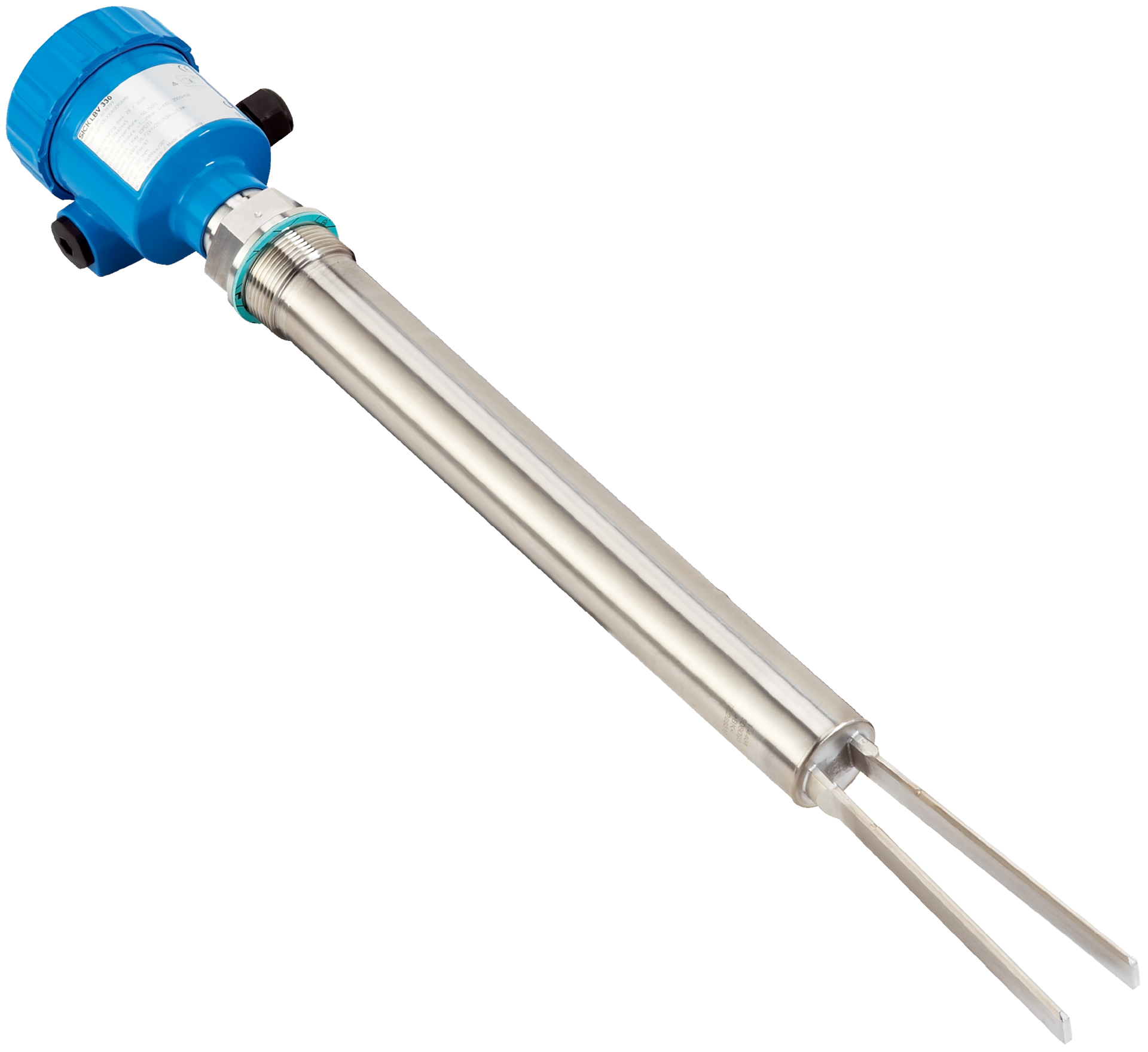

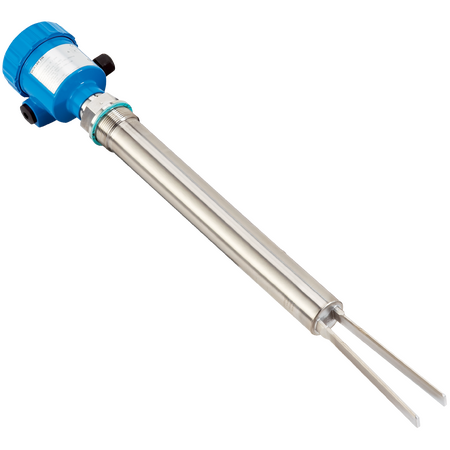

The SICK LBV330-LXAGDTAMX2000 is a robust tuning fork level sensor designed for bulk solids measurement with high accuracy and ATEX certification for hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-LXAGDTAMX2000 | Level sensors
Brand: SICK
SKU: 6050191
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, ATEX Level Sensor, SICK Level Detector
Technical Specifications
- Dimensions (H x L x W): 2000mm x 50mm x 50mm
- Weight: 3 kg
Key Features
- Tuning fork probe type with 2000 mm probe length
- Switch measurement for reliable level detection
- ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb approved for hazardous areas
- High accuracy of ± 10 mm and reproducibility ≤ 5 mm
- Fast response time of 500 ms to 1000 ms
- Volt-free transistor output PNP/NPN with output current < 300 mA
- Enclosure rated IP66 and IP67 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L for corrosion resistance
- Housing made of aluminum
Professional Installation Requirements
- Installation by qualified personnel is required, especially for compliance with ATEX hazardous area standards.
Applications
- Bulk solids level measurement in industrial processes
- Use in environments with process pressure from -1 bar to 25 bar
- Suitable for process temperatures from -50 °C to +150 °C
- Ideal for materials with fill density ≥ 0.008 g/cm³ and particle size < 10 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient operation with low supply voltage (10 V DC to 55 V DC)
- Long MTBF of 4.61 million hours minimizes environmental impact from maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBV330-LXAGDTAMX2000 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
