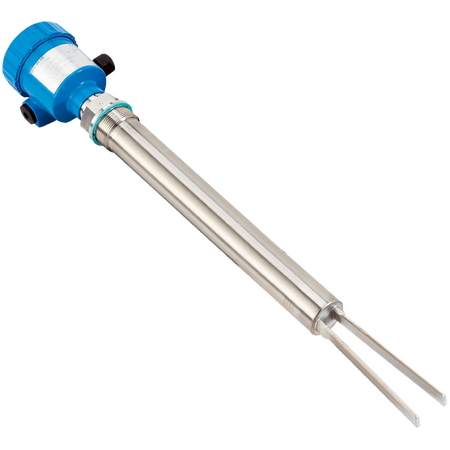

LBV330-XXAGDTKMX6000 | Level sensors
The SICK LBV330-XXAGDTKMX6000 is a tuning fork level sensor designed for accurate and reliable bulk solids level measurement in industrial applications, featuring robust stainless steel construction and high environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXAGDTKMX6000 | Level sensors
Brand: SICK
SKU: 6063564
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK LBV330 Level Sensor
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 6000 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms or 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤ 5 V pp
- Initialization time: < 2 s
- Output signal: 1 x PNP/NPN transistor output
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 25
- Housing material: Plastic
- Ambient operating temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 6000mm x 50mm x 50mm
- Weight: 3 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element precision
- Robust stainless steel wetted parts (1.4404 / 316L)
- Enclosure rated IP66 and IP67 for harsh environments
- Volt-free transistor output with PNP/NPN options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Material handling and storage silos
- Process control in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV330-XXAGDTKMX6000 tuning fork level sensor is available for immediate purchase, ideal for bulk solids level measurement in industrial and manufacturing applications.
