LBV330-XXANDRANX2000 | Level sensors

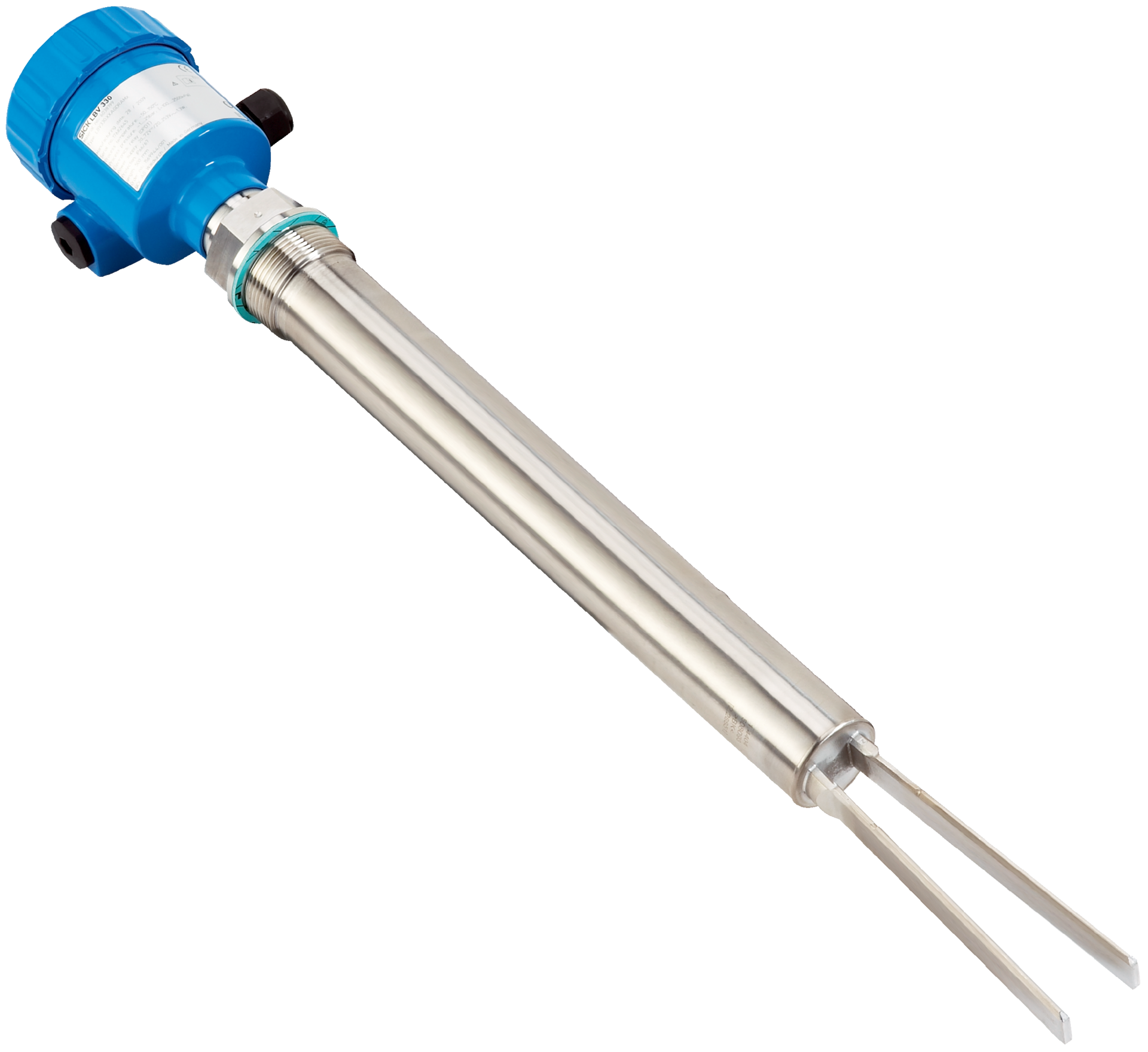

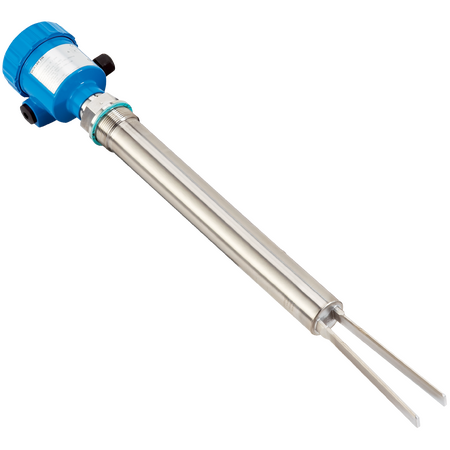

The SICK LBV330-XXANDRANX2000 is a tuning fork level sensor designed for accurate and reliable bulk solids level measurement in industrial applications, featuring robust stainless steel construction and high environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXANDRANX2000 | Level sensors
Brand: SICK
SKU: 6038190
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV330
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 2000 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 x 10^6 hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: 1 1/2" NPT PN 25 / stainless steel 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 2.5 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +150 °C
- Double relay (DPDT) output signal
- High enclosure rating of IP66 and IP67 for harsh environments
- Stainless steel wetted parts for corrosion resistance
- Fast response time of 500 ms to 1000 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards to ensure proper setup and compliance.
Applications
- Bulk solids level measurement in industrial processes
- Material handling and storage monitoring
- Process control in manufacturing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- High reliability and long MTBF (4.61 million hours) reduce environmental impact of maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV330-XXANDRANX2000 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
