LBV330-XXANDRANX2300 | Level sensors

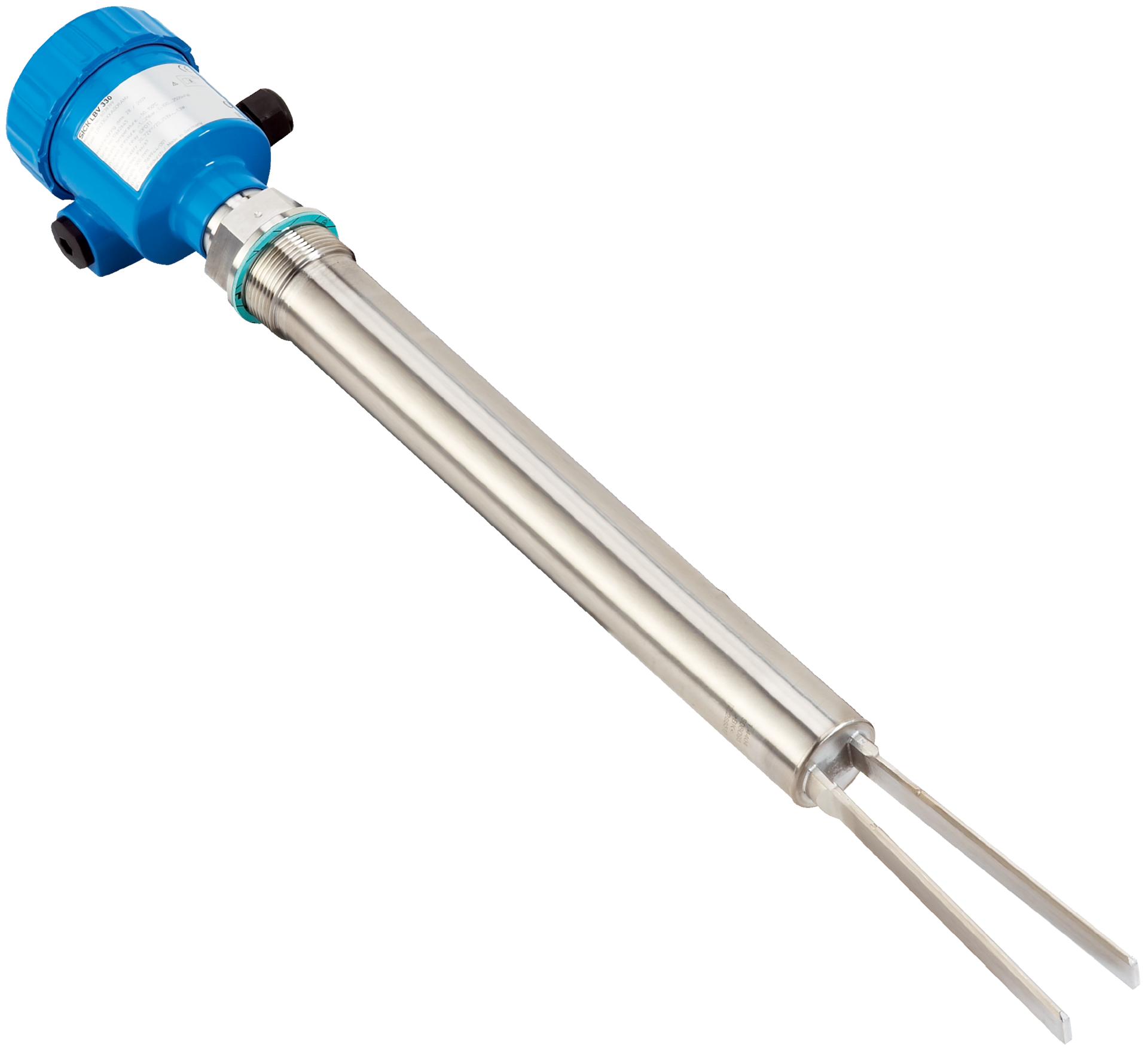

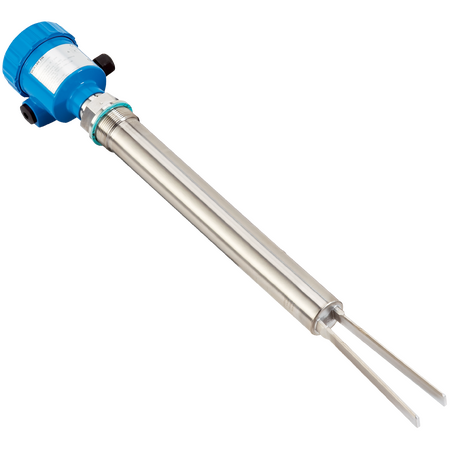

The SICK LBV330-XXANDRANX2300 is a tuning fork level sensor designed for accurate and reliable level switching of bulk solids in industrial applications, featuring robust stainless steel construction and high IP protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXANDRANX2300 | Level sensors
Brand: SICK
SKU: 6038193
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, LBV330 Level Sensor, SICK Level Switch
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 2300 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 s
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: 1 1/2" NPT PN 25 / stainless steel 316L
- Housing material: Aluminum
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 2300mm x 50mm x 50mm
- Weight: 3 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for bulk solids with particle size less than 10 mm
- Wide process pressure range from -1 bar to 25 bar
- Operates in process temperatures from -50 °C to +150 °C
- Double relay (DPDT) output signal for versatile control
- High enclosure rating IP66 and IP67 for harsh environments
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- Fast response time of 500 ms to 1000 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Suitable for use in storage silos, hoppers, and bins
- Process industries requiring reliable level switching
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV330-XXANDRANX2300 tuning fork level sensor is available for immediate purchase, ideal for bulk solids level measurement in industrial applications.
