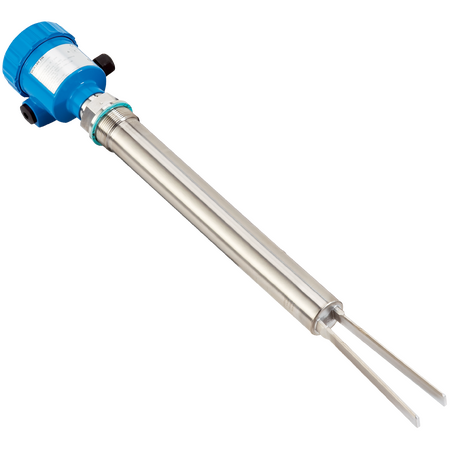

LBV330-XXBGDRKMX0750 | Level sensors

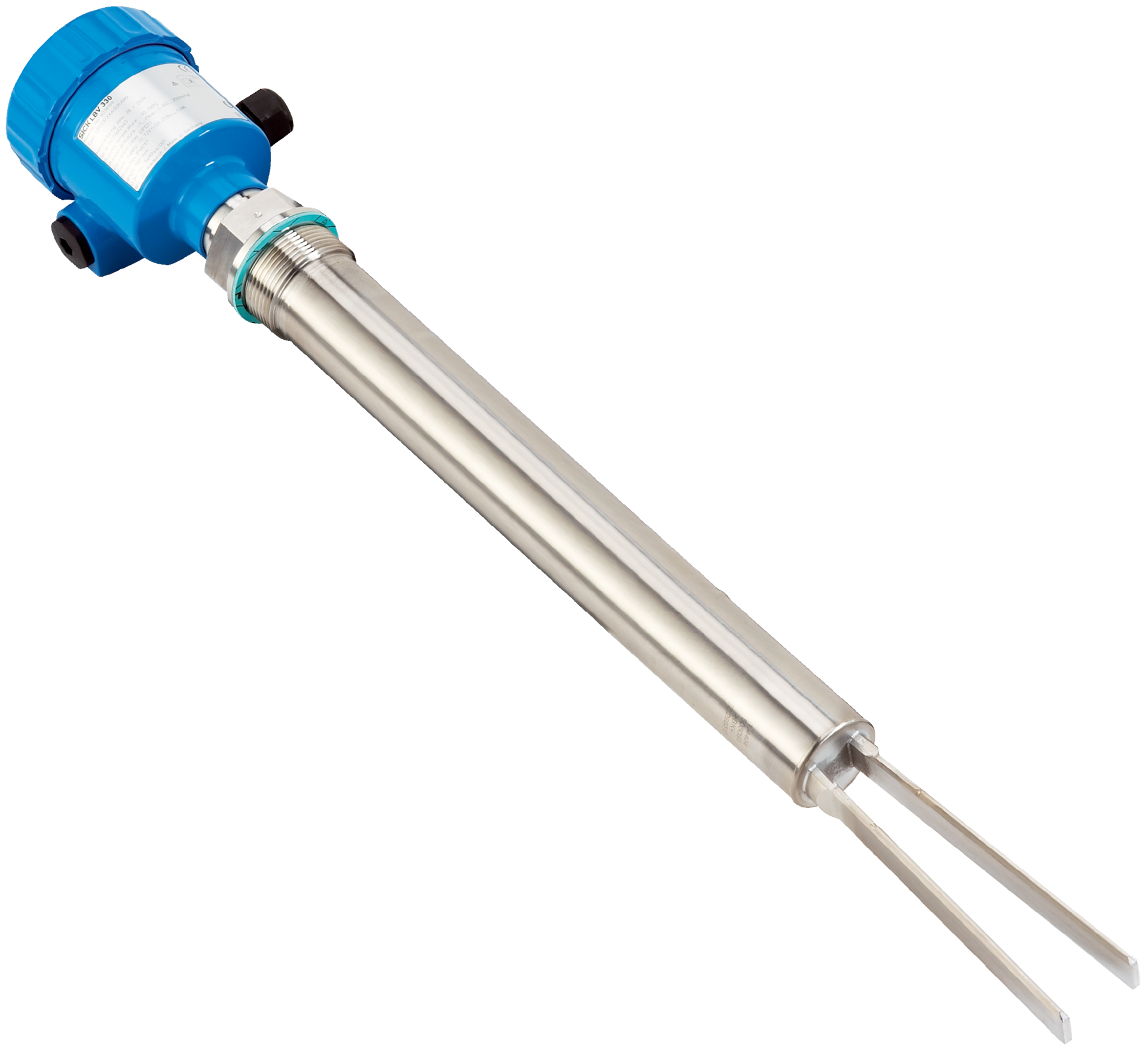

The SICK LBV330-XXBGDRKMX0750 is a robust tuning fork level sensor designed for accurate switch measurement of bulk solids in industrial applications, featuring stainless steel construction and high IP protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXBGDRKMX0750 | Level sensors
Brand: SICK
SKU: 6068980
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK LBV330 Level Detector
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 750 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +250 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1½ A PN 25
- Housing material: Plastic
- Sensor material: Stainless steel 1.4404
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 750mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for bulk solids with particle size less than 10 mm
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +250 °C
- Double relay (DPDT) output signal for versatile control
- High enclosure rating of IP66 and IP67 for harsh environments
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- Fast response time of 500 ms to 1000 ms
- High mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards.
Applications
- Measurement and detection of bulk solids in industrial processes
- Suitable for use in storage tanks, silos, and hoppers
- Ideal for process control in food, chemical, and pharmaceutical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV330-XXBGDRKMX0750 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
