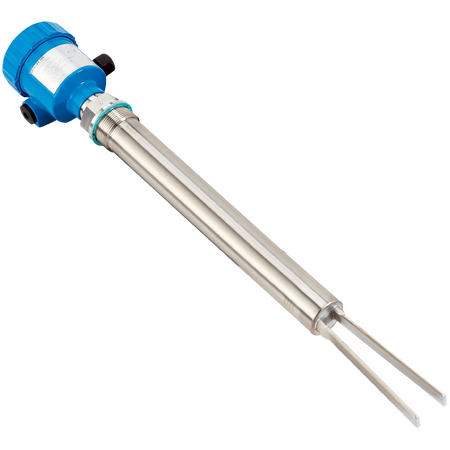

LBV330-XXBGDTAMX0400 | Level sensors
The SICK LBV330-XXBGDTAMX0400 is a robust tuning fork level sensor designed for accurate switch measurement of bulk solids in demanding industrial environments, featuring stainless steel construction and high IP protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXBGDTAMX0400 | Level sensors
Brand: SICK
SKU: 6076337
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK LBV330 Level Detector
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 400 mm
- Process pressure range: -1 bar to 25 bar
- Process temperature range: -50 °C to +250 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 10 V DC to 55 V DC
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Aluminum
- Dimensions (H x L x W): 50mm x 400mm x 50mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for bulk solids with particle size less than 10 mm
- High process pressure tolerance from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +250 °C
- Stainless steel wetted parts for durability and corrosion resistance
- IP66 and IP67 rated enclosure for harsh environments
- Volt-free transistor output with PNP/NPN options
- Fast response time of 500 ms to 1000 ms
- High mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Bulk solids level detection in industrial processes
- Measurement and monitoring in storage silos and hoppers
- Process control in food, chemical, and pharmaceutical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High reliability minimizes process interruptions and energy waste
Warranty Information
Standard manufacturer warranty applies, typically 1 to 2 years against defects.
Available Now
The SICK LBV330-XXBGDTAMX0400 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
