LBV330-XXBNDRANX0700 | Level sensors

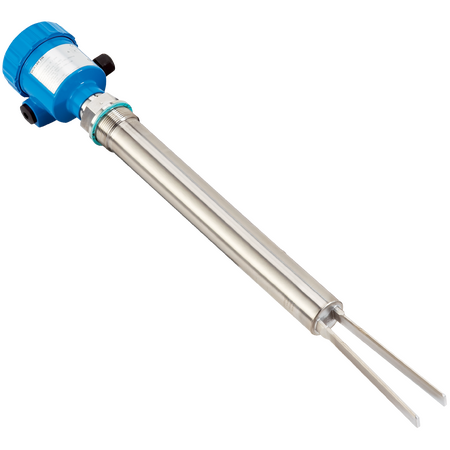

The SICK LBV330-XXBNDRANX0700 is a robust tuning fork level sensor designed for bulk solids measurement and switching, featuring stainless steel wetted parts, wide temperature and pressure ranges, and IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV330-XXBNDRANX0700 | Level sensors
Brand: SICK
SKU: 6038273
Alternatively Known As: Tuning Fork Level Sensor, Bulk Solids Level Switch, SICK Level Sensor LBV330
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 700 mm
- Process pressure: -1 bar to 25 bar
- Process temperature: -50 °C to +250 °C
- Fill material density: ≥ 0.008 g/cm³
- Particle size: < 10 mm
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms to 1000 ms
- MTBF: 4.61 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Inductive load: 750 VA, 54 W
- Capacitive load: 750 VA, 54 W
- Contact load: Min. 50 mW / max. 750 VA, 54 W
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: 1 1/2" NPT PN 25 / stainless steel 316L
- Housing material: Aluminum
- Ambient operating temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 700mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Tuning fork probe type with 700 mm probe length
- Suitable for bulk solids with fill material density ≥ 0.008 g/cm³
- Process pressure range from -1 bar to 25 bar
- Wide process temperature range from -50 °C to +250 °C
- Double relay (DPDT) output signal for reliable switching
- Enclosure rated IP66 and IP67 for dust and water protection
- Stainless steel wetted parts (1.4404 / 316L) and aluminum housing
- Fast response time of 500 ms to 1000 ms
- High mean time between failures (MTBF) of 4.61 million hours
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and switch applications in harsh environments
- Suitable for powders and granular materials with particle size < 10 mm
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV330-XXBNDRANX0700 tuning fork level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement and control applications.
