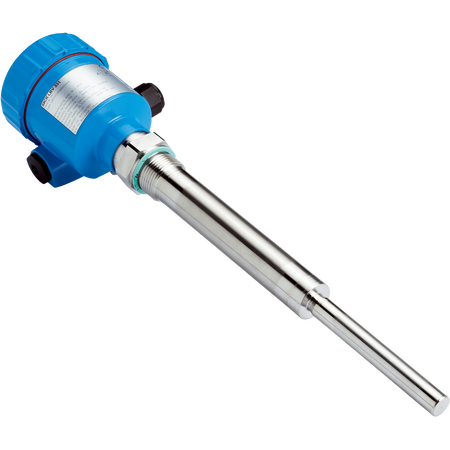

LBV331-XXAGCTKMX01000 | Level sensors
The SICK LBV331-XXAGCTKMX01000 level sensor is designed for reliable switch measurement of bulk solids with a robust stainless steel rod probe, suitable for harsh industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV331-XXAGCTKMX01000 | Level sensors
Brand: SICK
SKU: 6044876
Alternatively Known As: Bulk solids level sensor, rod probe level switch, industrial level sensor, SICK level switch
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 1,000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤10 mA
- Output signal: 1 x PNP/NPN transistor output
- Output current: <300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Plastic
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 1,000 mm length suitable for bulk solids
- Switch measurement with ±10 mm accuracy and ≤5 mm reproducibility
- Robust stainless steel wetted parts (1.4404 / 316L) for durability
- Wide process temperature range from -50 °C to +150 °C
- Process pressure tolerance from -1 bar to 16 bar
- IP66 and IP67 rated enclosure for protection against dust and water
- Volt-free transistor output with PNP/NPN options
- Low power consumption ≤10 mA and supply voltage 10 V DC to 55 V DC
- Fast response time of 100 ms to 500 ms
- VDE protection class 2 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Measurement and switching of bulk solids in industrial processes
- Level detection in storage tanks and silos
- Process control in material handling and processing industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV331-XXAGCTKMX01000 level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
