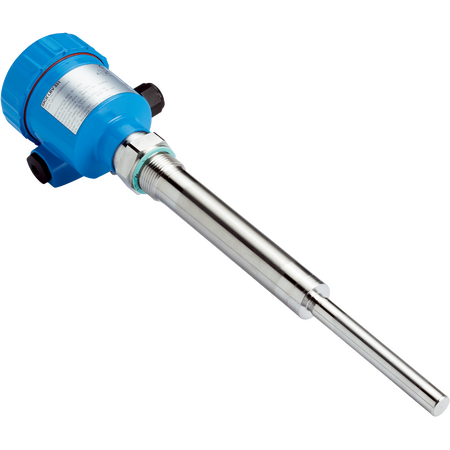

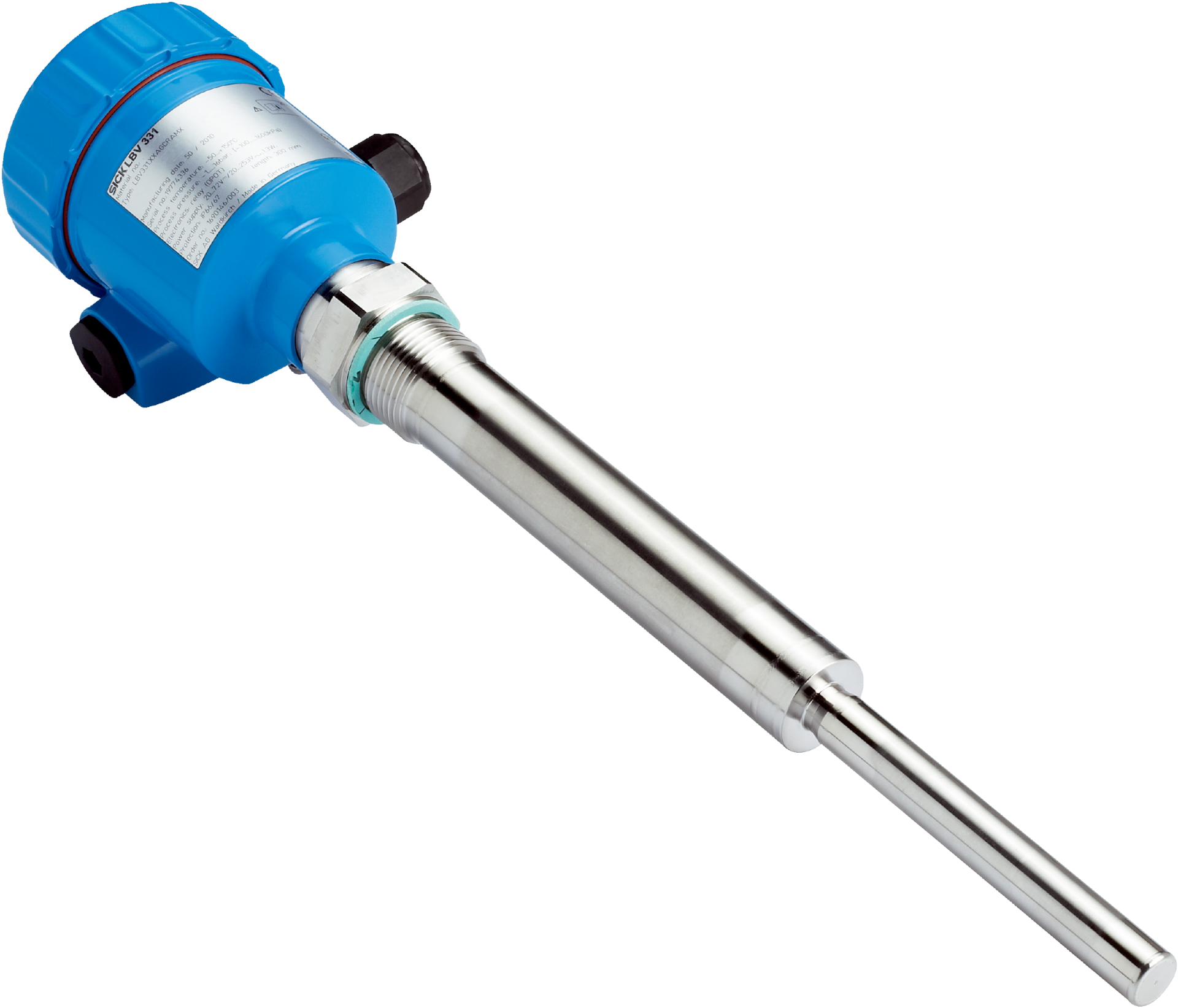

LBV331-XXAGDRKMX0220 | Level sensors
The SICK LBV331-XXAGDRKMX0220 is a reliable level sensor designed for bulk solids measurement with high accuracy, robust stainless steel construction, and IP66/IP67 protection for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBV331-XXAGDRKMX0220 | Level sensors
Brand: SICK
SKU: 6060409
Alternatively Known As: Bulk solids level sensor, rod probe level switch, industrial level sensor, SICK level switch
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 220 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN16 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 220mm x 50mm
- Weight: 0.5 kg
Key Features
- Suitable for bulk solids measurement
- Rod probe type with 220 mm length
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element accuracy
- Double relay (DPDT) output signal
- Enclosure rating IP66 and IP67 for robust protection
- Stainless steel wetted parts (1.4404 / 316L) for durability
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor installation and electrical safety standards.
Applications
- Bulk solids level measurement and monitoring
- Industrial process control
- Material handling and storage systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (5 mA to 30 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV331-XXAGDRKMX0220 level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
