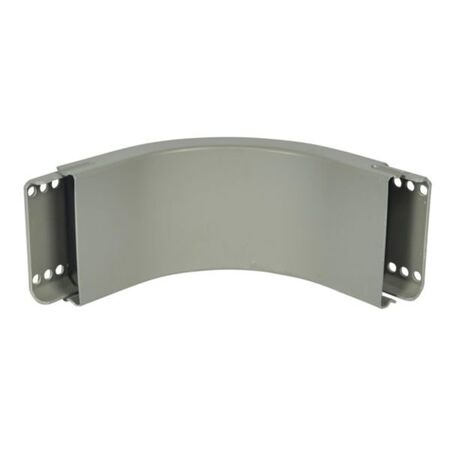

PVC Cable Tray 90° Inside Riser Cover 150x50mm Grey Cablofil

BRAND: Cablofil
SKU: 637725
$503.20 List price: $627.10
1 EA ($503.20 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Designed for 90° vertical cable routing, this PVC Cable Tray 90° Inside Riser Cover provides reliable cable protection for 150mm wide x 50mm high tray systems. Manufactured from durable PVC with a grey RAL 7030 finish, it operates in temperatures from -5°C to 60°C and features a 150mm inner radius. Complies with AS/NZS 3000 Wiring Rules for electrical installations. Refer to the product details below for complete specifications, dimensions and installation guidance.
Technical Specifications
  • Change of direction: Vertically rising 90°
  • Construction type: Bend rigid
  • With cover: Yes
  • Inner radius: 150 mm
  • Suitable for cable tray height: 50 mm
  • Suitable for cable tray width: 150 mm
  • Side perforation: No
  • Bottom perforation: No
  • Material: Polyvinyl chloride (PVC)
  • Operating temperature: -5 to 60 °C
  • Storage temperature: -5 to 60 °C
  • Colour: Grey (RAL 7030)
  • Halogen free: No
  • Dimensions (H x L x W): 50mm x 150mm x 150mm
  • Weight: 1.2 kg
Key Features
  • 90° vertical inside riser bend for cable trays
  • Includes cover for cable protection
  • Rigid bend construction for durability
  • Made from polyvinyl chloride (PVC) material
  • Suitable for cable trays 150mm wide and 50mm high
  • Operating temperature range from -5°C to 60°C
  • Grey color with RAL 7030 finish
Professional Installation Requirements
  • Installation should be performed by qualified electrical professionals to ensure compliance with wiring rules and safety standards.
Applications
  • Cable management in electrical installations
  • Vertical cable routing in industrial and commercial buildings
  • Suitable for use in data centers, factories, and infrastructure projects
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • PVC material is durable and recyclable, reducing waste
  • Protects cables to extend their lifespan, reducing replacement frequency
Warranty Information

Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.

Available Now

The Legrand PVC Cable Tray 90° Inside Riser with Cover 150mm x 50mm is available for immediate purchase, ideal for electrical cable management in commercial and industrial applications.


FAQ

Q: What cable tray size is this inside riser cover designed for?
A: It is designed for cable trays measuring 150mm wide and 50mm high.

Q: What is the purpose of a 90° inside riser cover?
A: It protects cables while guiding them through a 90° vertical inside riser transition in cable tray systems.


Pair this inside riser cover with a Cable Tray Coupler to create secure connections between cable tray sections.

Add a Cable Tray Banding Strip to provide additional fastening support for cable tray installations.

Install a Cable Tray Support to provide stable mounting for cable tray systems.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
