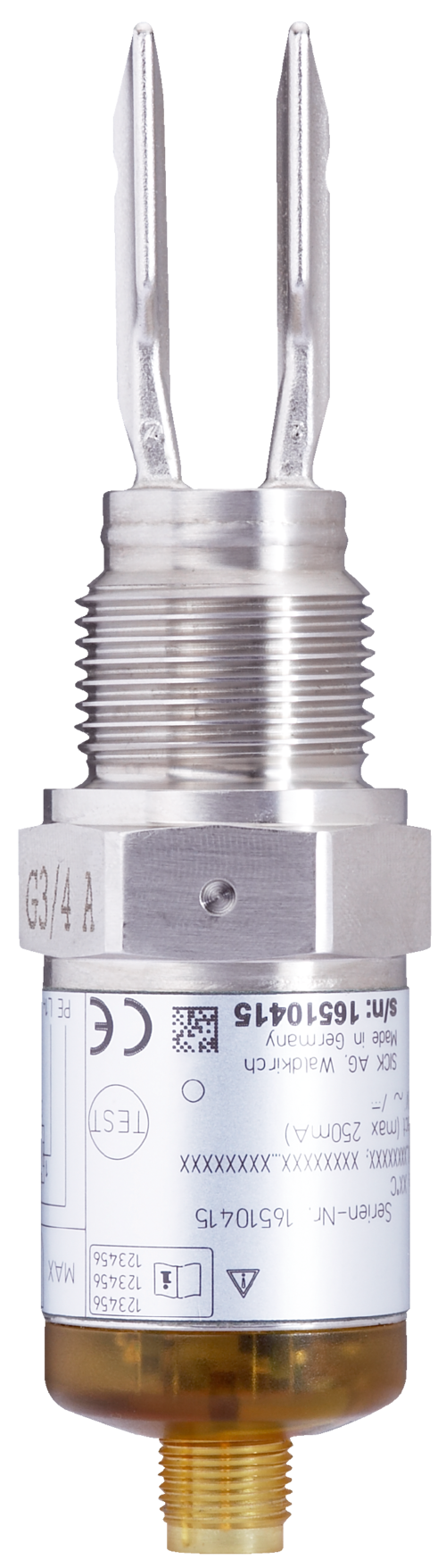

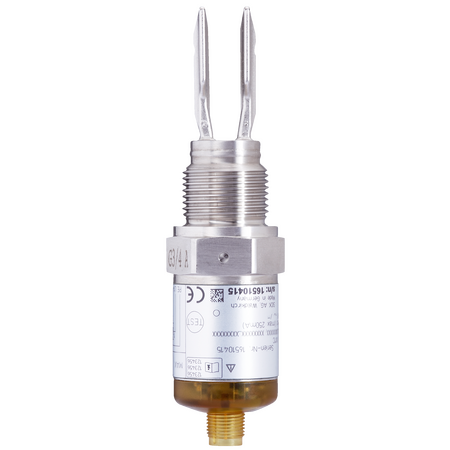

Level Switch 67mm Probe Round IP67 Stainless Steel SICK
SICK level switch features IP67, 67mm probe, round. Suited for industrial control and switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +100 °C
- Fill material density range: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- Mean time between failures (MTBF): 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 seconds
- Protection class: VDE class 2
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts material: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- Transistor output PNP with up to 250 mA output current
- M12 round connector, 4-pin for easy electrical connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤10 mA) supports energy-efficient operation
- Reliable measurement reduces risk of spills and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXSGBTPM tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
