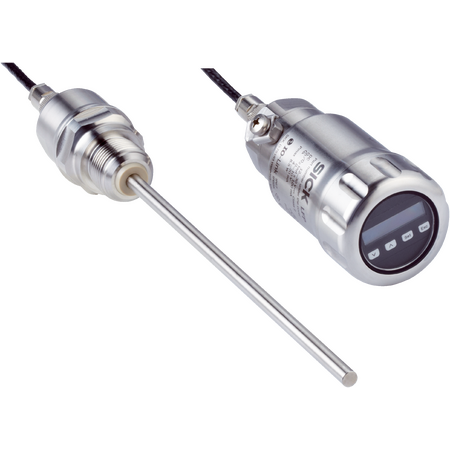

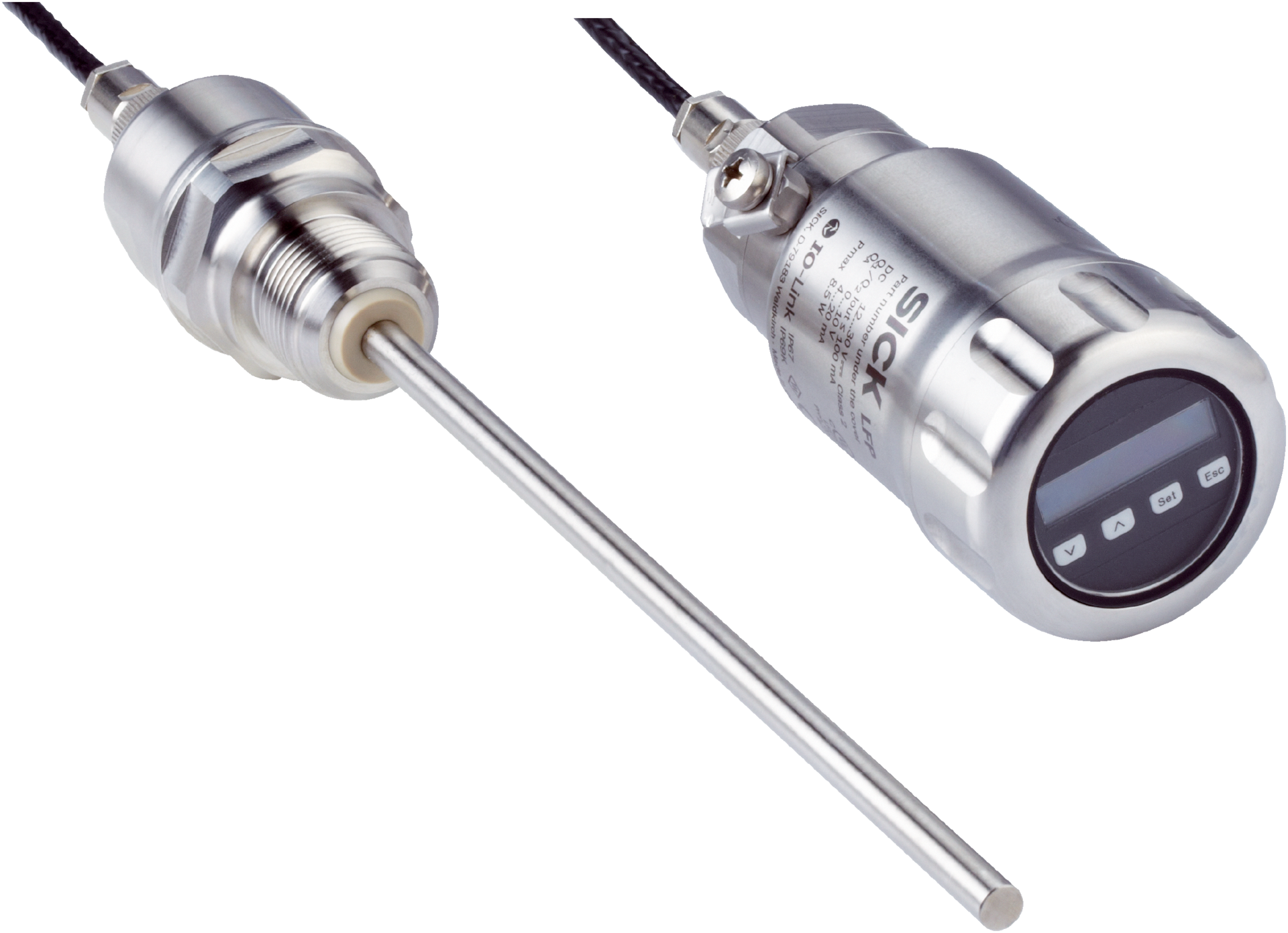

LFP0300-G1CMB | Level sensors
The SICK LFP0300-G1CMB level sensor features a hygienic rod probe design for accurate fluid level measurement with switch and continuous output, suitable for demanding industrial and food applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0300-G1CMB | Level sensors
Brand: SICK
SKU: 1106120
Alternatively Known As: Fluid Level Sensor, Hygienic Rod Probe Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 300 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +180 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Length of cable: 2 m
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA (acrylic glass)
- Dimensions (H x L x W): 300mm x 50mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Remote amplifier design
- Measurement types: switch and continuous
- Process pressure range: –1 bar to 16 bar
- Process temperature range: –20 °C to +180 °C
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface
- IP67 and IP69 rated enclosure for robust protection
- Stainless steel wetted parts and housing with viewing window
- FDA certified and food contact material compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections, ensuring compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and FDA certified materials
- Continuous and switch level detection in liquids
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient operation with low power consumption
- Compliant with China RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0300-G1CMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
