LFP0340-G2NMB | Level sensors

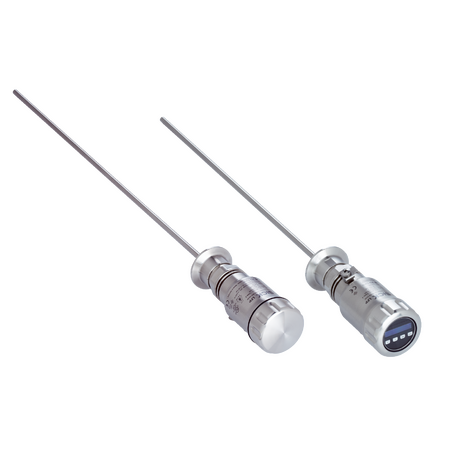

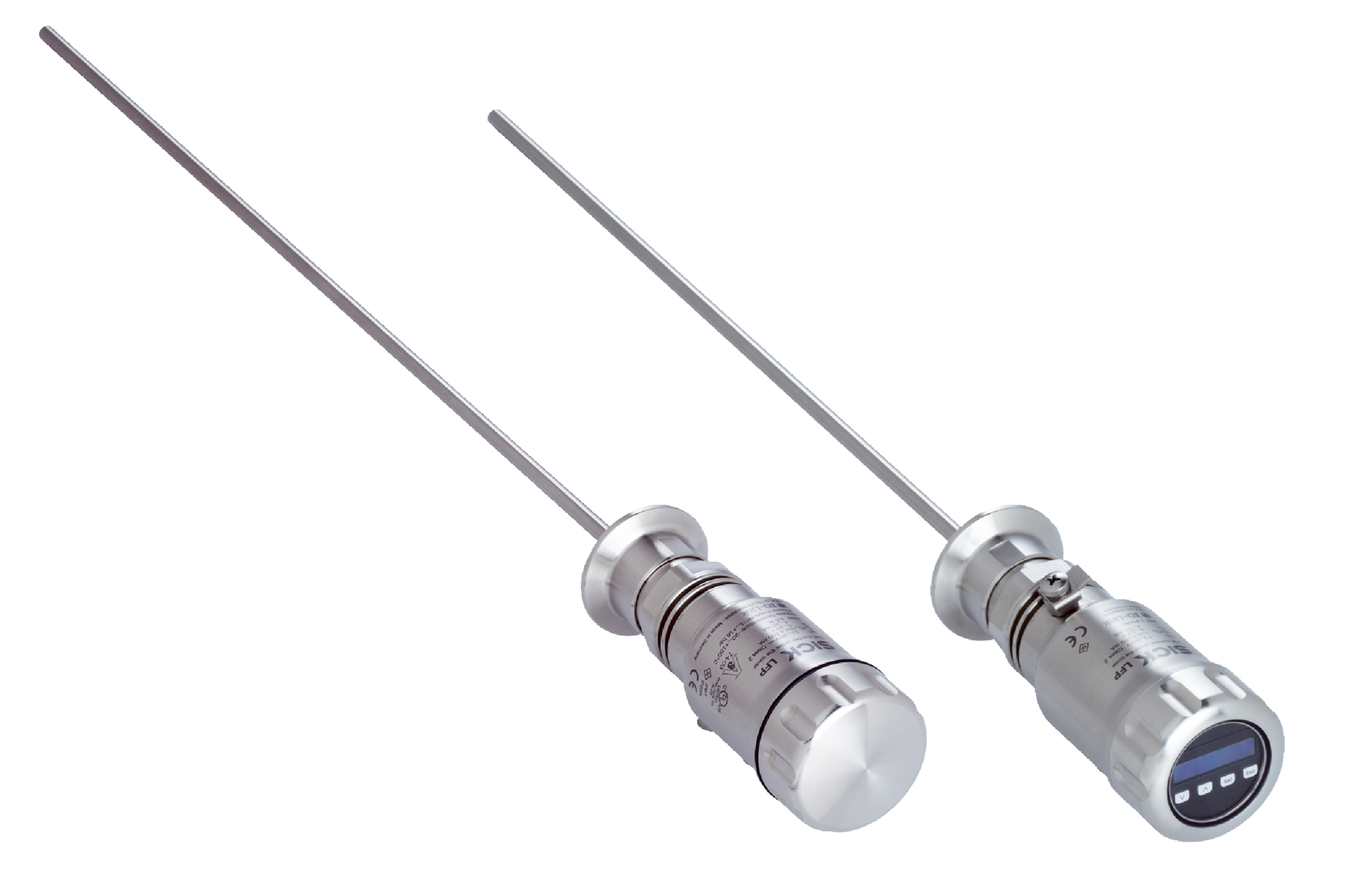

The SICK LFP0340-G2NMB level sensor features a hygienic rod probe for precise fluid level measurement with switch and continuous output, suitable for demanding industrial and food applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0340-G2NMB | Level sensors
Brand: SICK
SKU: 1088710
Alternatively Known As: Fluid Level Sensor, Hygienic Rod Level Sensor, IO-Link Level Sensor, Continuous Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 340 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- MTTF: 194.3 years (EN ISO 13849-1)
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69 (EN 60529)
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –40 °C to +80 °C
- Dimensions (H x L x W): 340mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Switch and continuous measurement capabilities
- Standard amplifier design with IO-Link communication interface
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Wide process pressure range from –1 bar to 16 bar
- Process temperature range from –20 °C to +150 °C
- Robust stainless steel wetted parts and housing
- IP67 and IP69 rated enclosure for harsh environments
- Display included for easy monitoring
- Certified for food contact and multiple international standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link communication protocols to ensure proper integration and safety.
Applications
- Fluid level measurement and monitoring in industrial processes
- Food and beverage industry requiring hygienic design sensors
- Chemical and pharmaceutical fluid level control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient operation with low power consumption
- Supports hygienic design reducing contamination and waste in food processing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LFP0340-G2NMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
