LFP0340-G3NMB | Level sensors

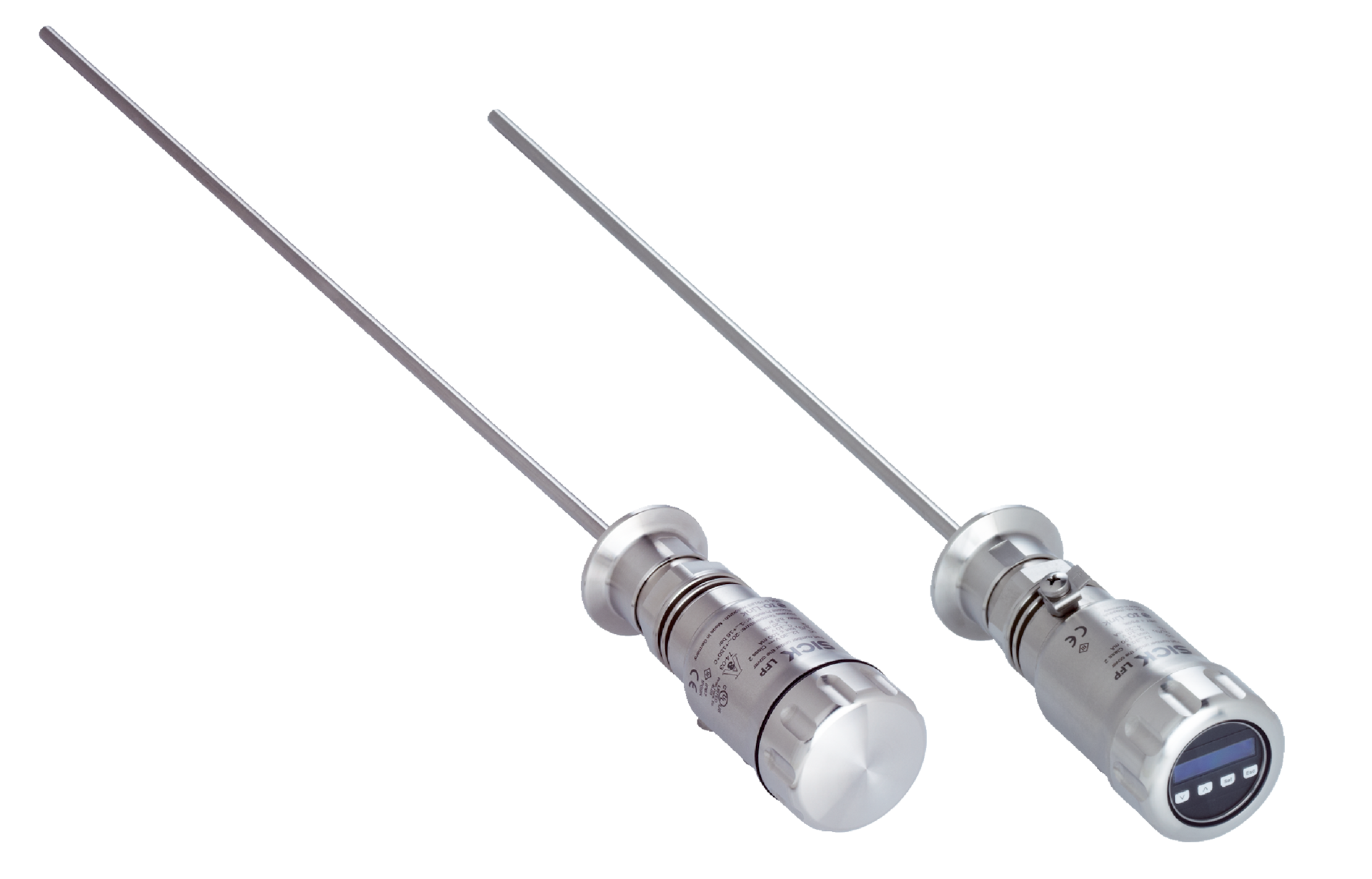

The SICK LFP0340-G3NMB level sensor is designed for precise fluid level measurement with hygienic rod probe, suitable for industrial applications requiring robust and accurate continuous or switch level detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0340-G3NMB | Level sensors
Brand: SICK
SKU: 1153644
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 340 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With closed cover
- Max. probe load: ≤6 Nm
- Ambient operating temperature: –20 °C to +60 °C
- Ambient storage temperature: –40 °C to +80 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 340mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement types: switch and continuous
- Standard amplifier design with IO-Link communication interface
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Wide process temperature range from –20 °C to +150 °C
- Process pressure range from –1 bar to 16 bar
- Stainless steel wetted parts (1.4404 / 316L) and PEEK
- Protection class IP67 and IP69 rated for harsh environments
- Display included for easy monitoring
- Robust housing with closed cover made of stainless steel 1.4305
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in liquids
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics with low power consumption (≤75 mA at 24 V DC)
- Long mean time to failure (MTTF) of 194.3 years reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0340-G3NMB level sensor is available for immediate purchase, ideal for industrial fluid measurement and hygienic process applications.
